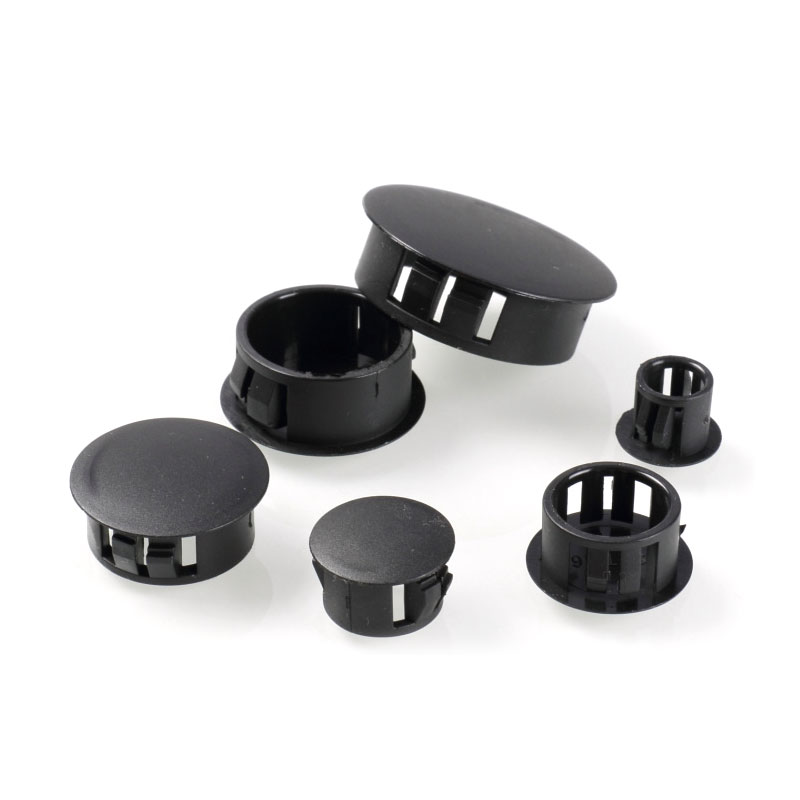

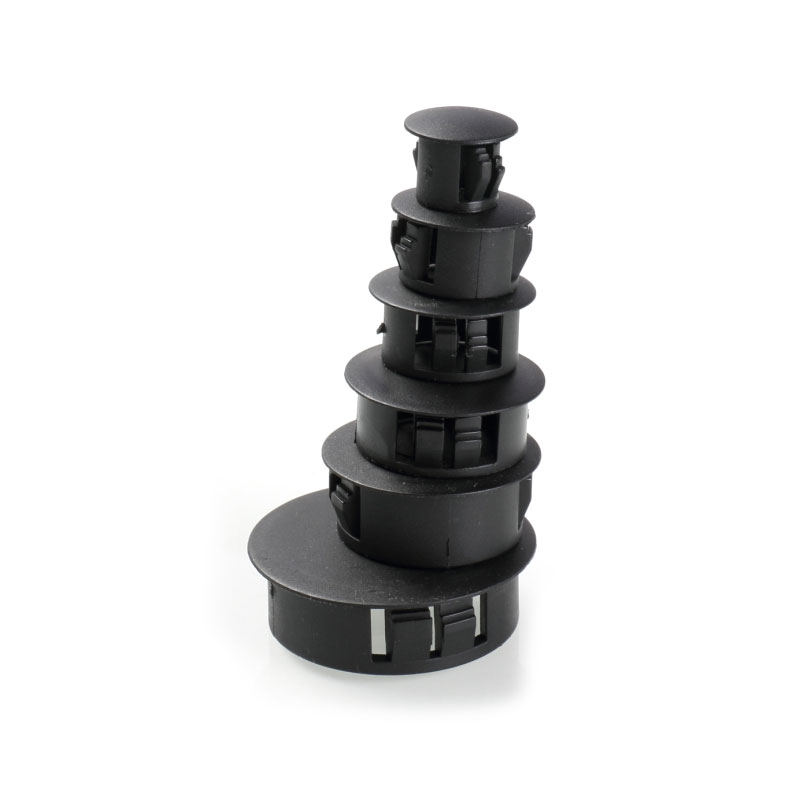

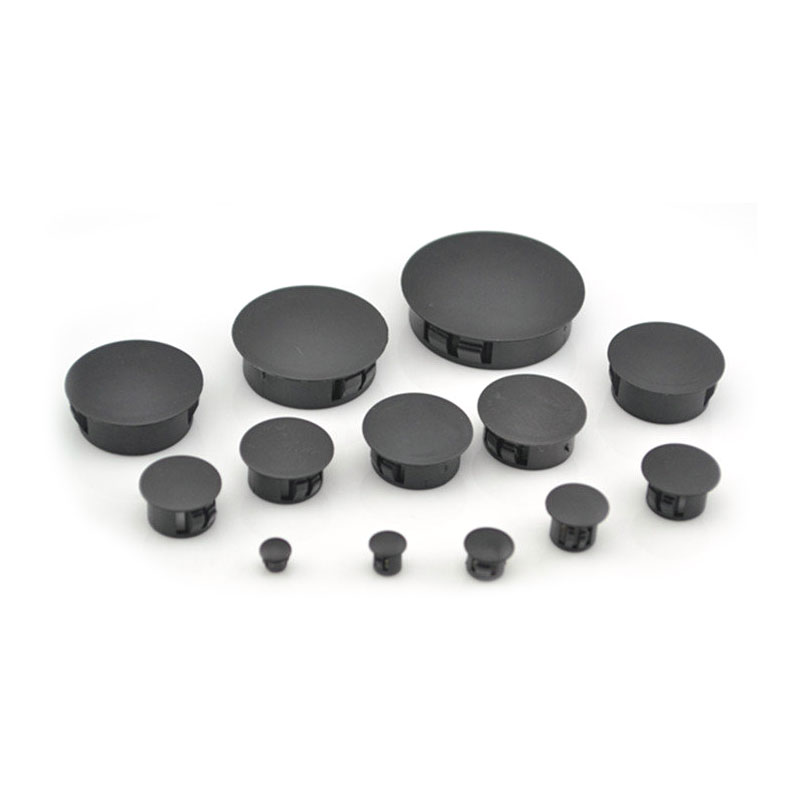

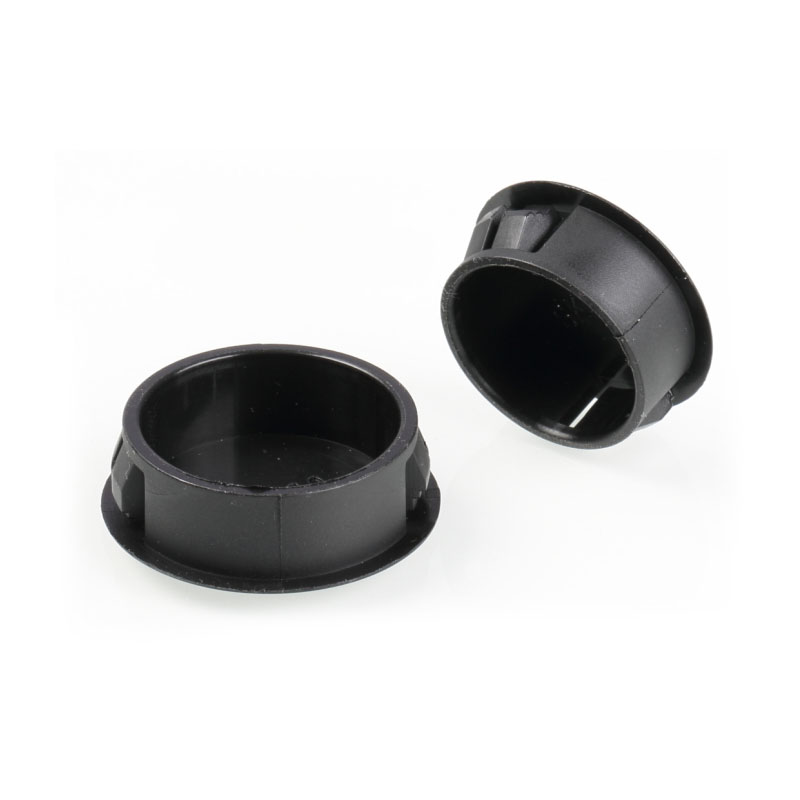

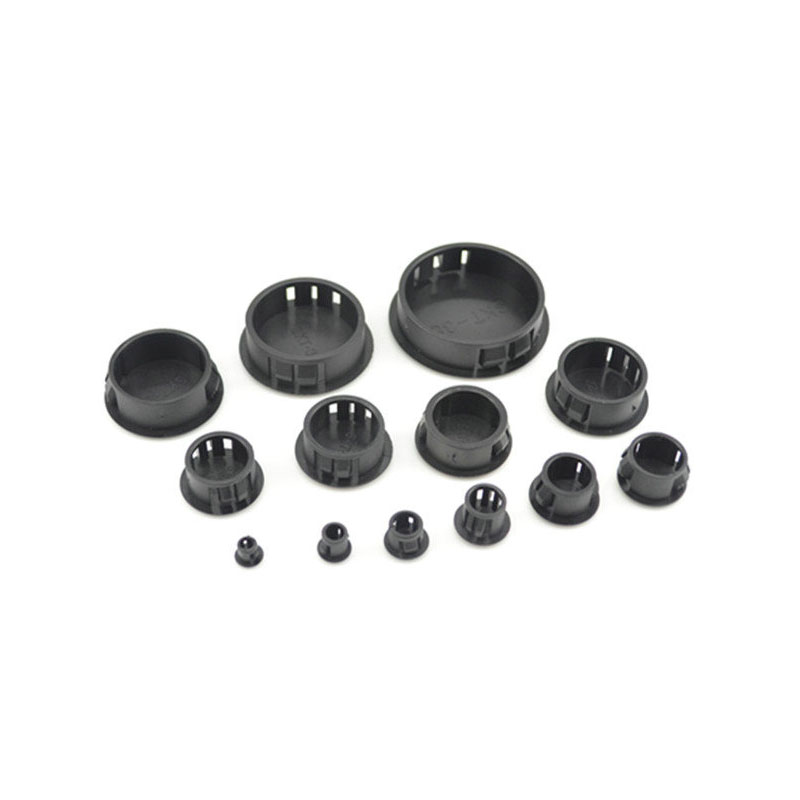

Wire Hole Plug

PRODUCT NAME:
Wire Hole Plug
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

● Material: UL approved Nylon 66, 94V-2
● Color: Black
● Hole Plug close your unneeded holes with fingertip pressure at low cost and assure good appearance.
● Available in application for chassis thickness less than 3.2mm.

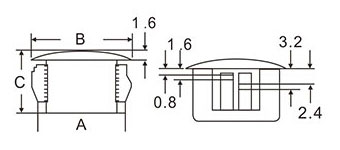

Item No A B C
HP-5 5.0 6.3 5.9
HP-6 6.0 7.8 7.8
HP-8 7.9 10.3 8.1
HP-10 9.5 13.0 10.5
HP-13 12.7 16.5 10.9
HP-15 14.3 16.7 10.3
HP-16 15.9 19.5 10.0
HP-19 19.1 22.9 10.0
HP-22 22.2 25.8 11.3
HP-25 25.4 29.0 11.6
HP-30 30.1 34.2 12.0
HP-38 38.1 42.1 11.2
HP-45 44.5 49.7 11.8
