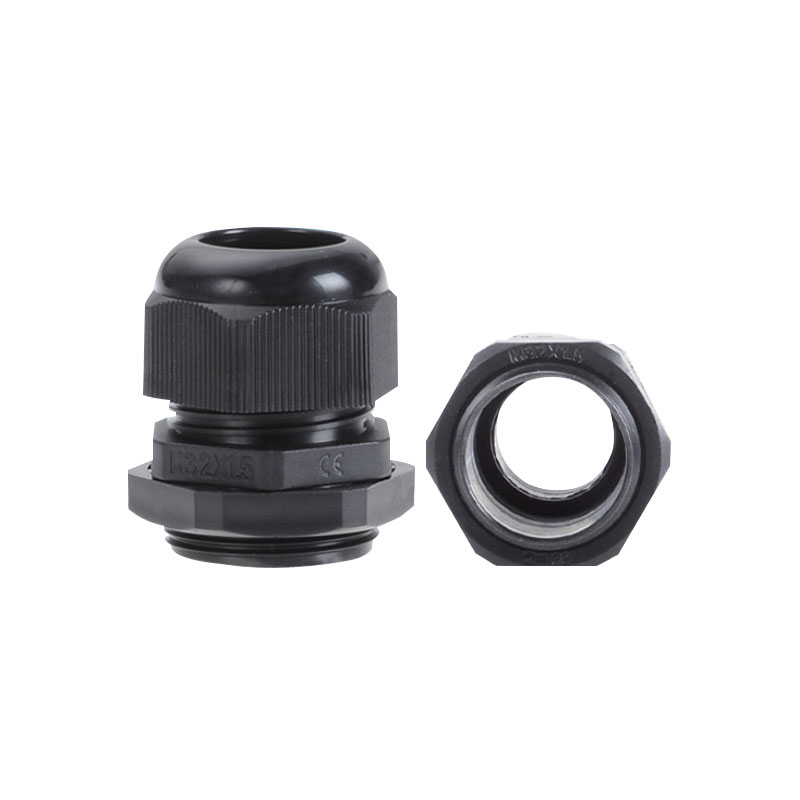

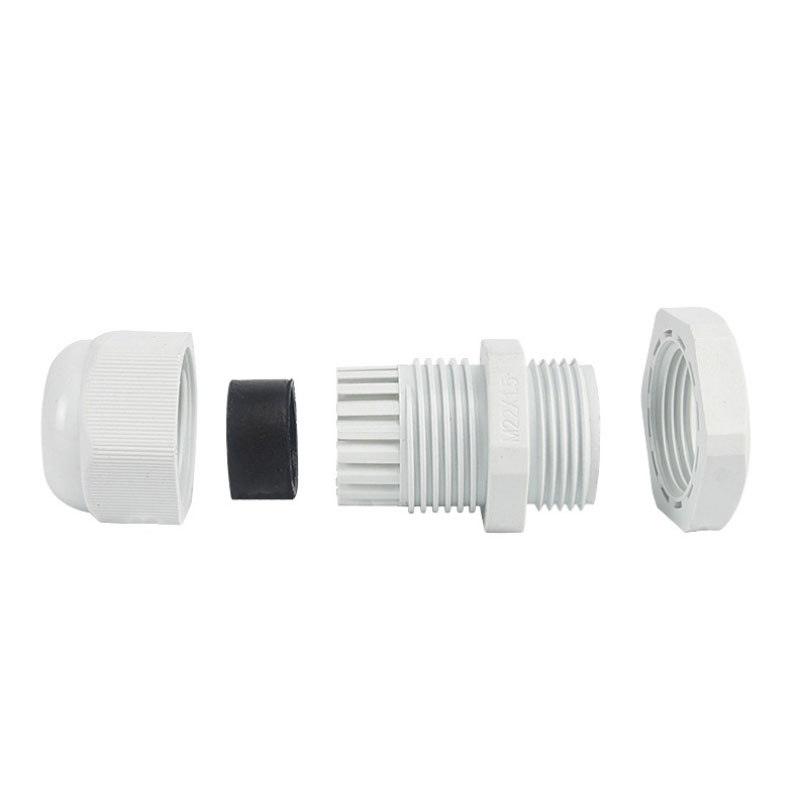

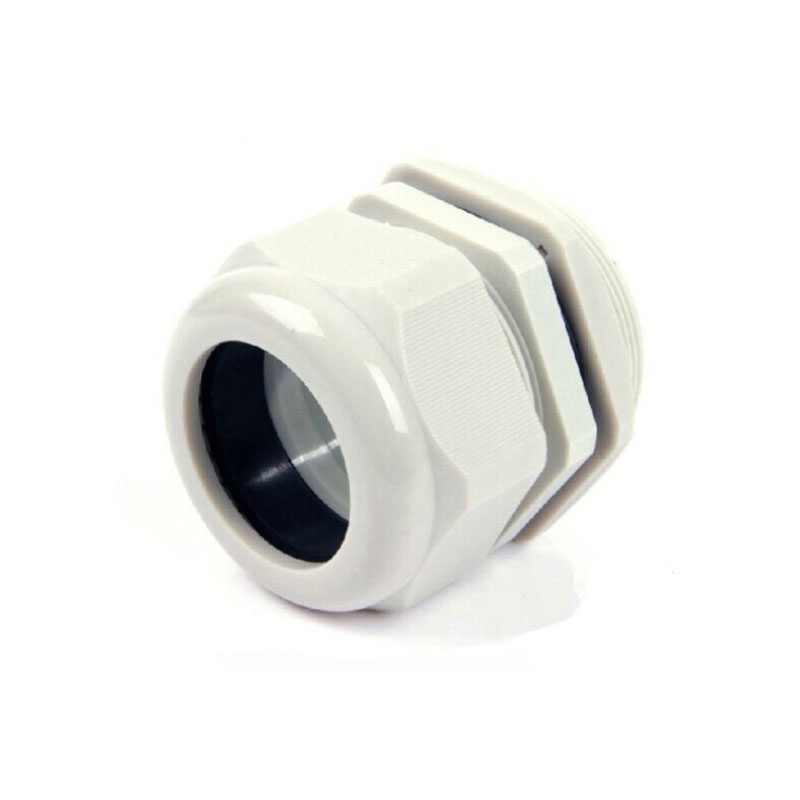

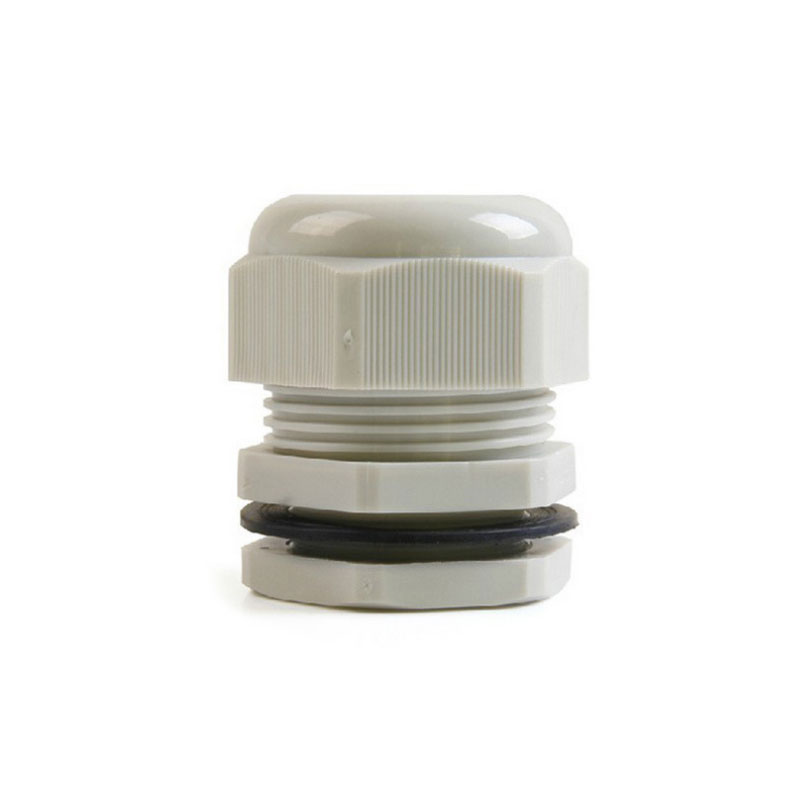

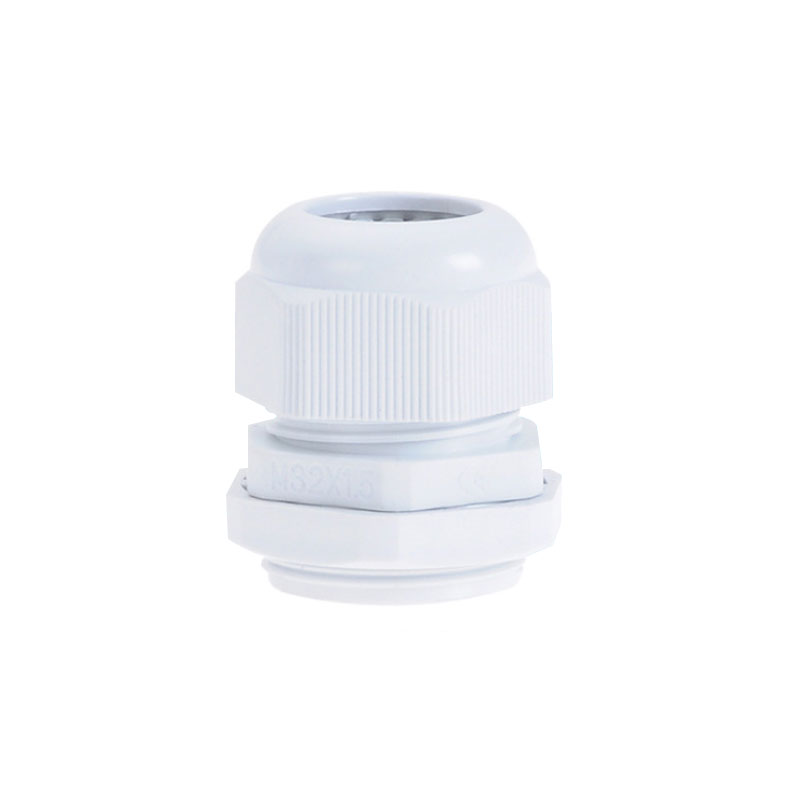

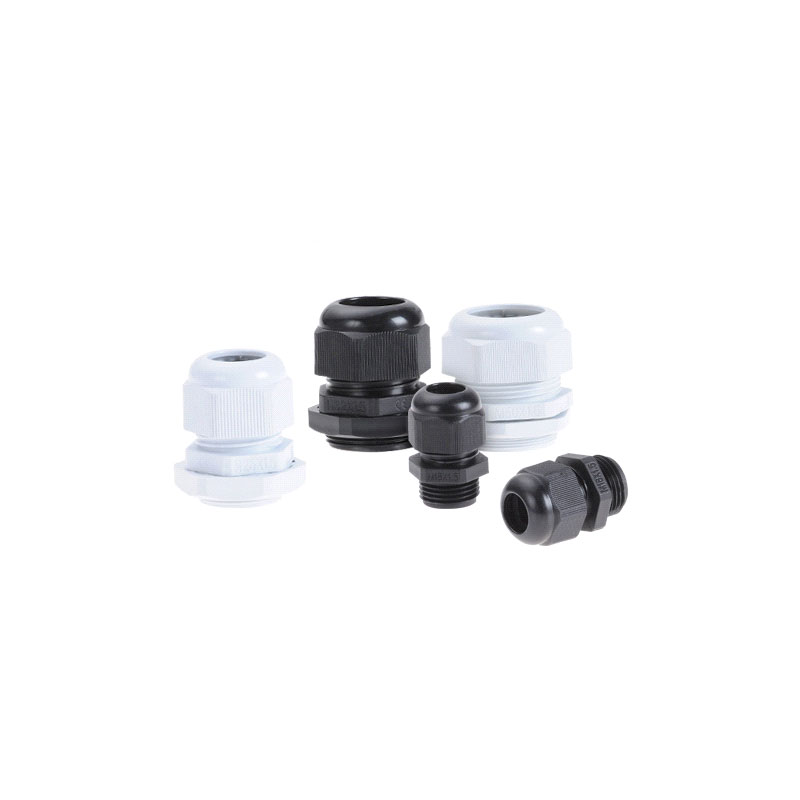

Waterproof Cable Gland M Type

PRODUCT NAME:
Waterproof Cable Gland M Type
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Parameter

Technical Data
Certification CE
Protection Grade IP68
Product Material Nylon PA66 or PP
Thread Specification Metric, PG
Operating Temperature Static state: -40℃~100℃, instant heat resistance up to 120℃.
Dynamic state: -20℃~80℃, instant heat resistance up to 100℃.
Color Black, gray, special colors can be customized
Three guarantees - to prevent hidden dangers , safe connection
1. Easy installation
It is not necessary to disassemble the fixed head of the waterproof connector, and the cable only be connected and tightened, saving time and convenient
2. Strong water resistance
Waterproof, dustproof, salt proof, acid and alkali resistant, alcohol, grease and general solvent, and can be used indoors and outdoors
3. Protection grade IP68
In the specified bayonet range, use the O-shape sealing ring and spin tight joint, to reach the IP68 protection grade

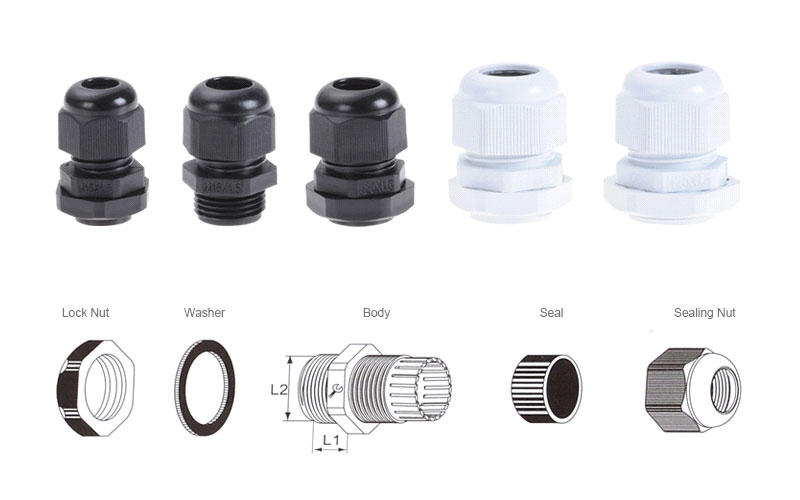

Technical Drawing

Model Applicable Cable
(mm)		 O.D. of Thread
L2 (mm)		 Thread Length
L1 (mm)		 Wrench Diameter
(mm)

Package
QTY/PCS
M12×1.5 3-6.5/2-5 12 9 18/16 100/6000
M16×1.5 4-8/2-6 16 9 22/19 100/4000
M18×1.5 5-10/3-7 18 9 24/22 100/2500
M20×1.5 6-11/5-9 20 10 27/24 100/2000
M22×1.5 10-13/7-12 22 10 30/27 100/1700
M24×1.5 12-15/10-12 24 10 30/28 100/1600
M25×1.5 12-15/10-12 25 11 31/28 100/1000
M27×1.5 13-18/9-16 27 12 35/33 100/1000
M30×1.5 16-21/13-18 30 12 37/35 100/800
M32×1.5 16-21/13-18 32 12 37/35 100/800
M36×1.5 18-25/13-20 36 12 45/42 50/500
M40×1.5 22-32/20-26 40 15 58/52 20/360
M50×1.5 32-38/25-31 50 18 62/58 20/220
M63×1.5 37-44/29-35 63 18 72/64 20/240
