Steel Din Rail

PRODUCT NAME:

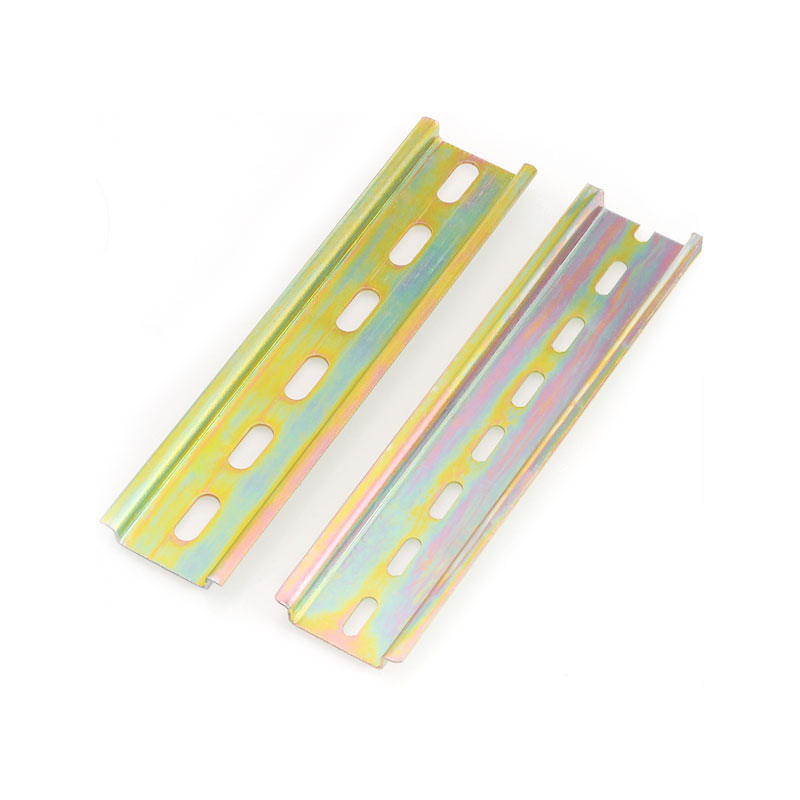

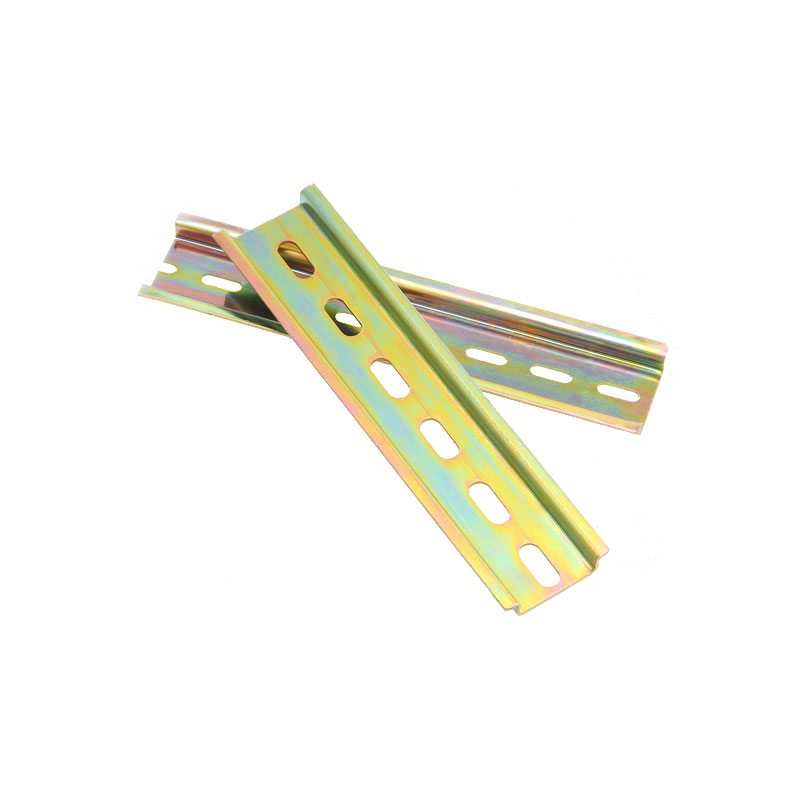

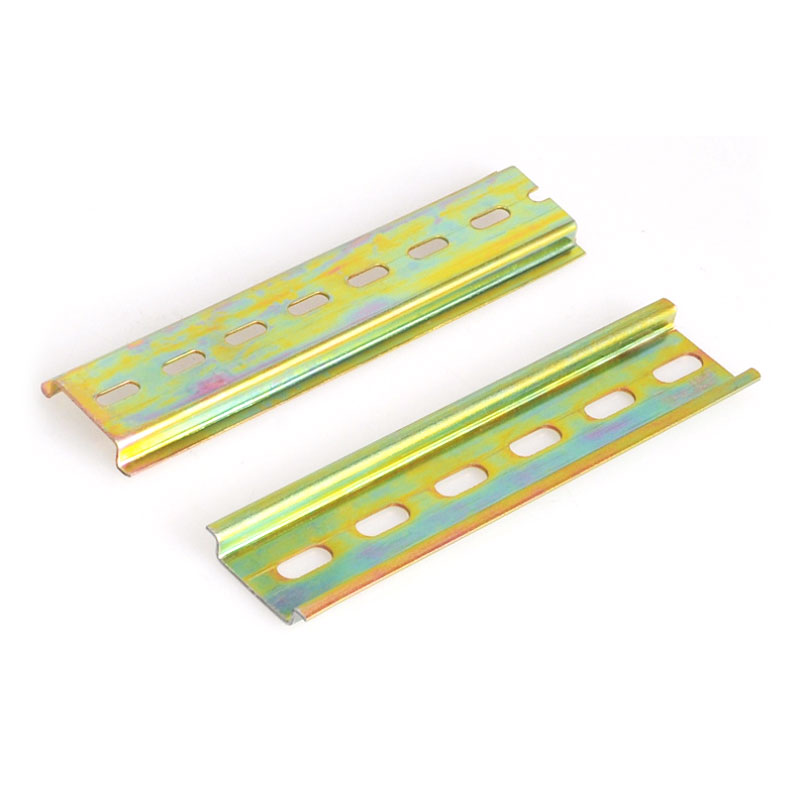

Steel Din Rail
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Parameter

Technical Data
Spec. Steel rail
Thickness 1.2mm
Height 7.5mm
Application Can install air switch, contactor and so on
Material Cold-rolled steel sheet
Applicable Screw M4

Width 35mm, various lengths and specifications
Economical and durable, strength guarantee and high accuracy. The installation and disassembly are quick and simple, which can greatly improve the efficiency and reduce the cost. Save installation space and meet the needs of industrial automation.

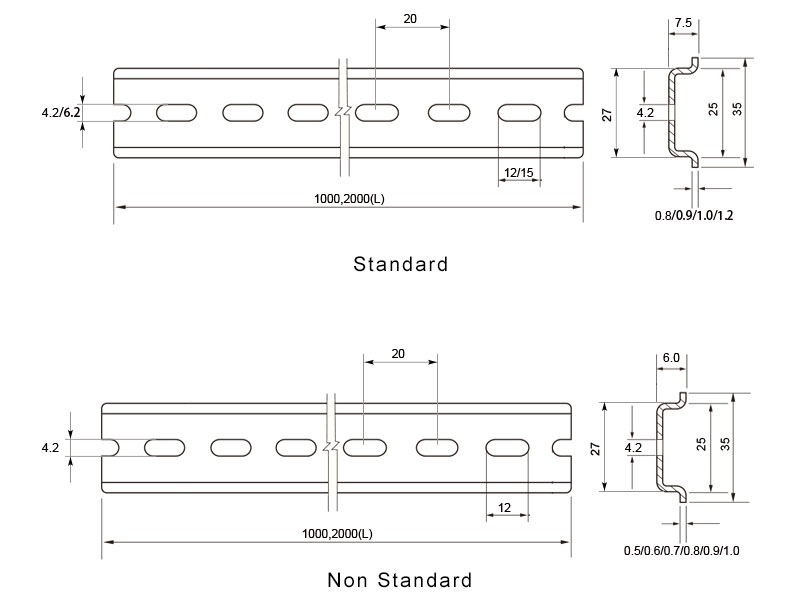

Technical Drawing

Structure Diagram (mm)
