ST Spring Clamp Terminal Block

PRODUCT NAME:
ST Spring Clamp Terminal Block
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

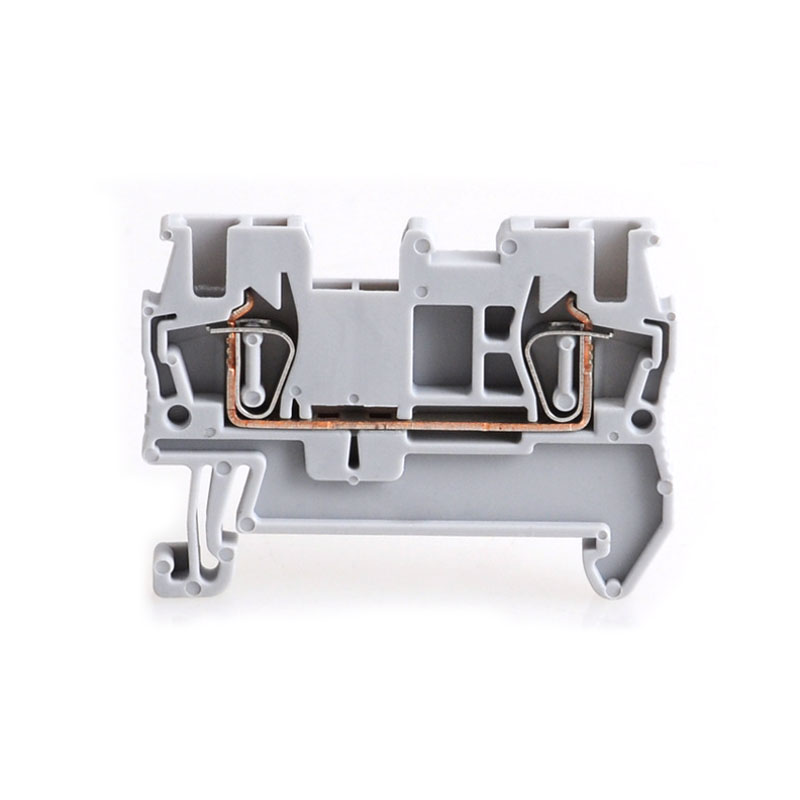

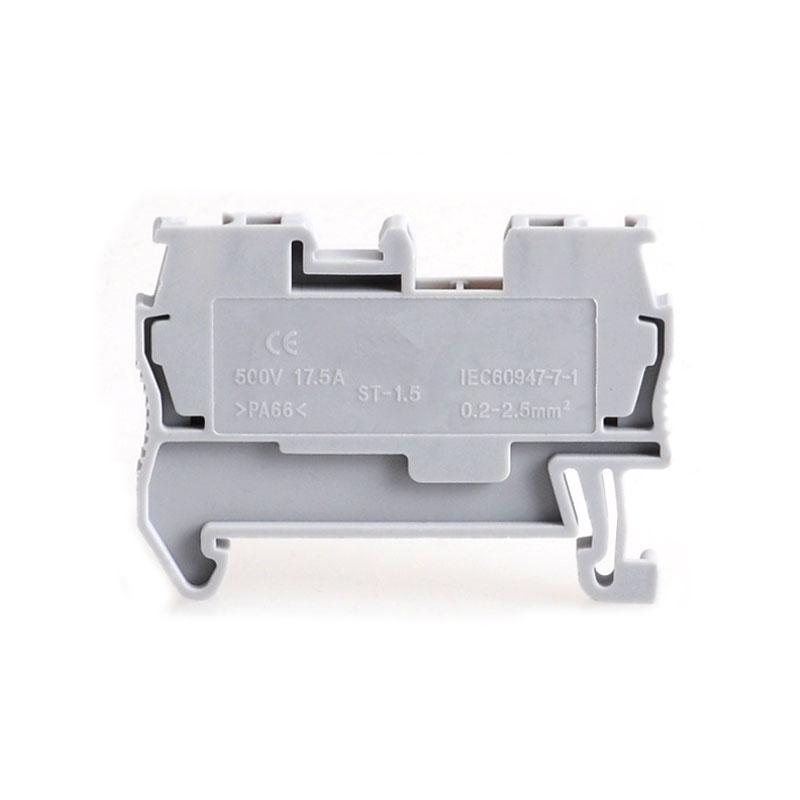

ST-1.5 Spring Terminal Block

Technical Data ST-1.5
 ST-2.5 ST-4 ST-6
Certification CE
Standard IEC
Rated Voltage 500V 800V 800V 1000V
Rated Current 17.5A 31A 40A 52A
Wire Diameter 0.2-2.5mm² 0.2-2.5mm² 0.2-4mm² 0.2-6mm²
Thickness / Width / End Plate Thickness 4/52/2.5mm 5/53/2.5mm 6/59/2.5mm 8/74.5/2.5mm
Height (NS35: 7.5/NS35: 15) 34.5/42mm 35.5/43mm 36.5/44mm 40/47.5mm
Rated Impulse Voltage / Pollution Level 8kV/3
Strip Length 9mm 9mm 10mm 13mm
Insulation Material / Flame Retardant Grade PA/V-0

Three guarantees - to eliminate hidden dangers, secure connections
1. Corrosion resistance
Salt fog test for up to 48 hours, customized salt fog test for to 72 hours.
2. Flame retardant grade V0
Molded case material is made of PC and PA66, high temperature resistance up to 120℃, high strength, folding resistance, flame retardant grades up to V0.
3. Good electrical conductivity
Small volume, full specifications, can be connected to the wire section, good conductivity, large torque, and has the self-locking function.

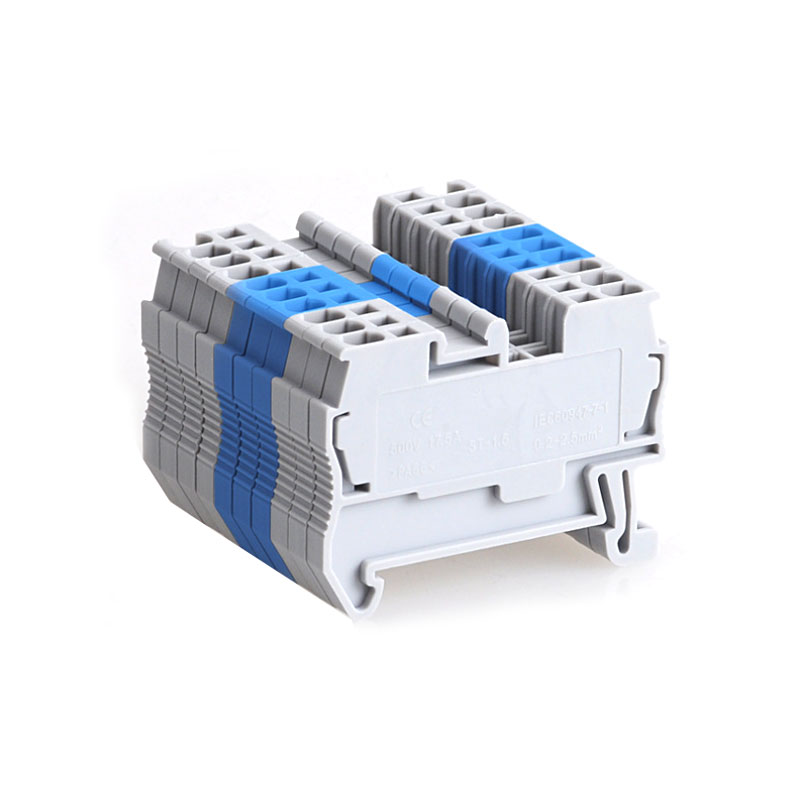

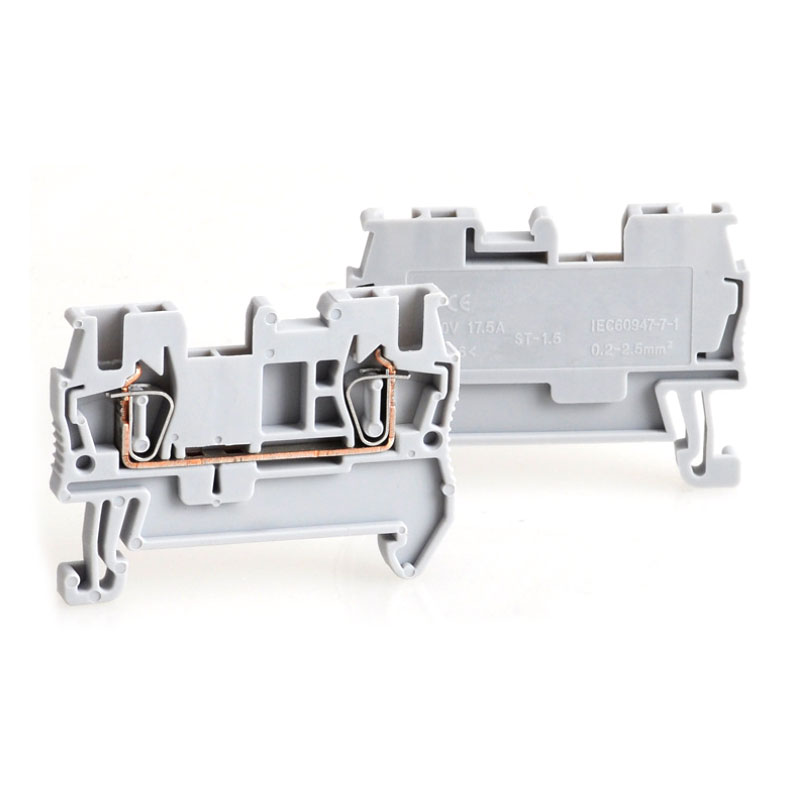

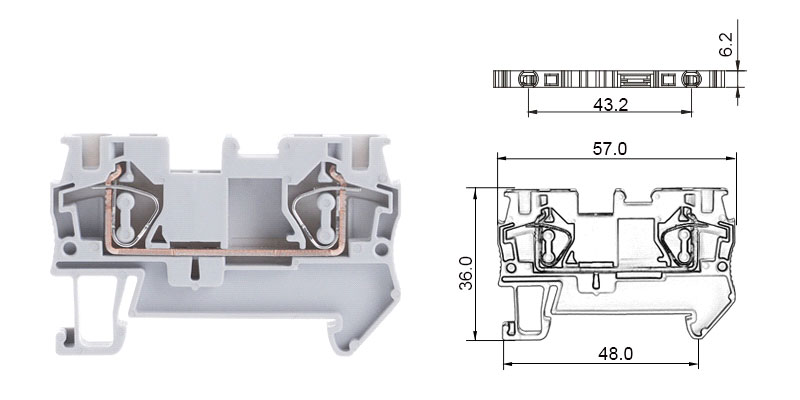

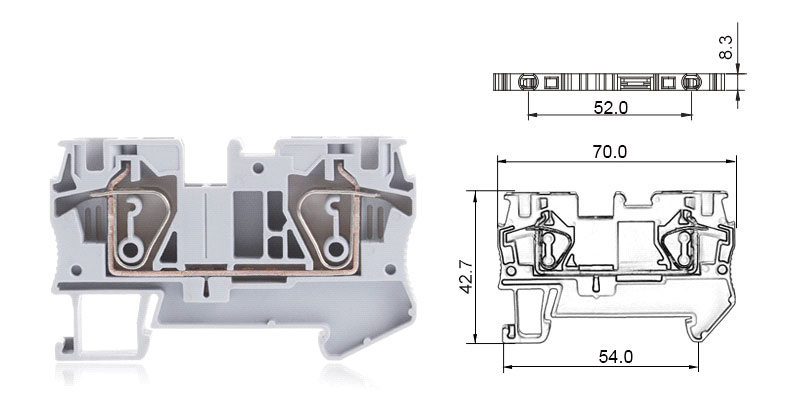

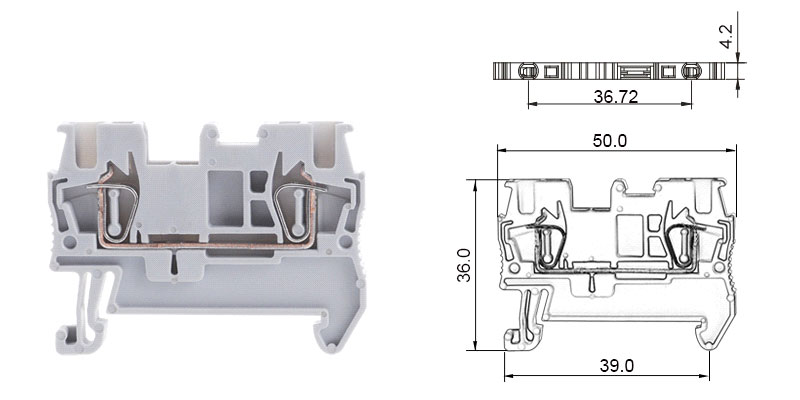

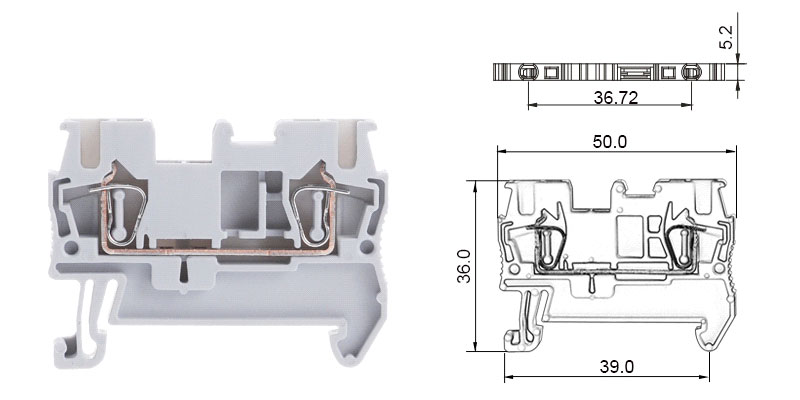

Technical Drawing

ST-1.5

ST-2.5

ST-4

ST-6

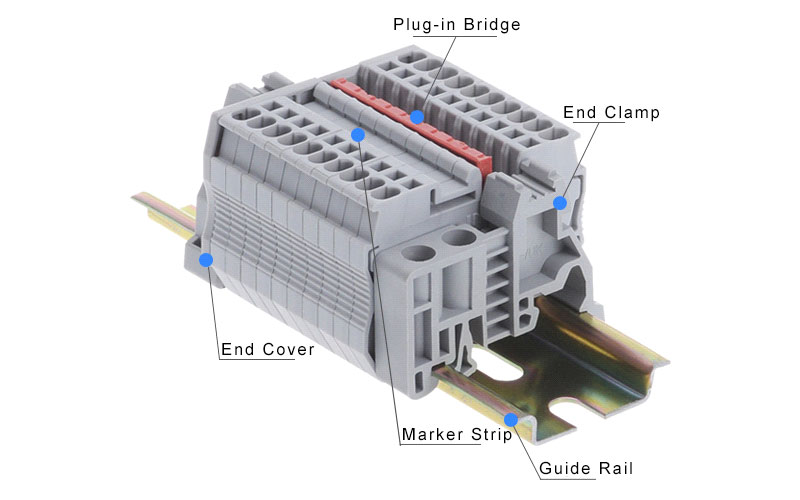

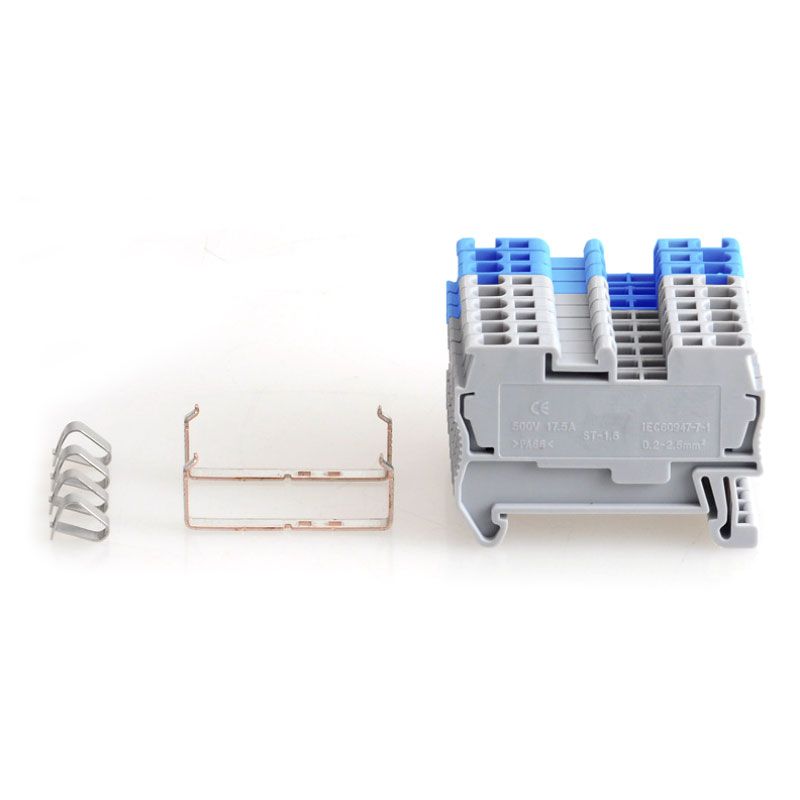

Product Add-ons

Instructions Graph ST-1.5 ST-2.5 ST-4 ST-6
End Clamp

E-UK
Guide Rail

TH35
End Cover: Thickness 1.5mm

D-ST-1.5/2.5 D-ST-1.5/2.5 D-ST-4 D-ST-6
Marker Strip (Blank): 10

ZB4 (Blank) ZB5 (Blank) ZB6 (Blank) ZB8 (Blank)
Marker Strip(Printing): 10

ZB4 (Printing) ZB5 (Printing) ZB6(Printing) ZB8 (Printing)
Plug-in Bridge

FBS-10-4 FBS-10-5 FBS-10-6 FBS-10-8
