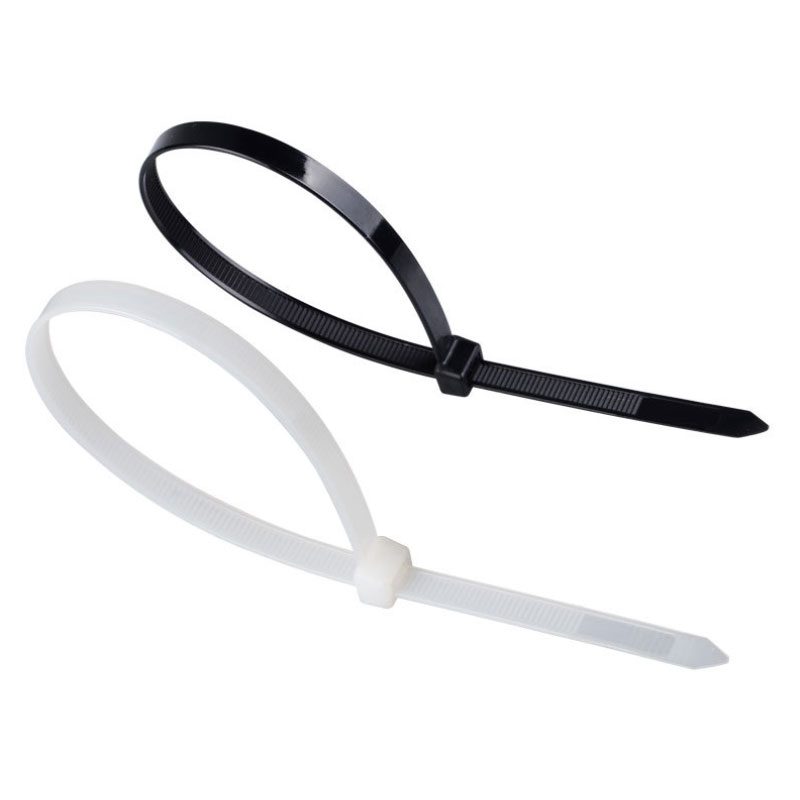

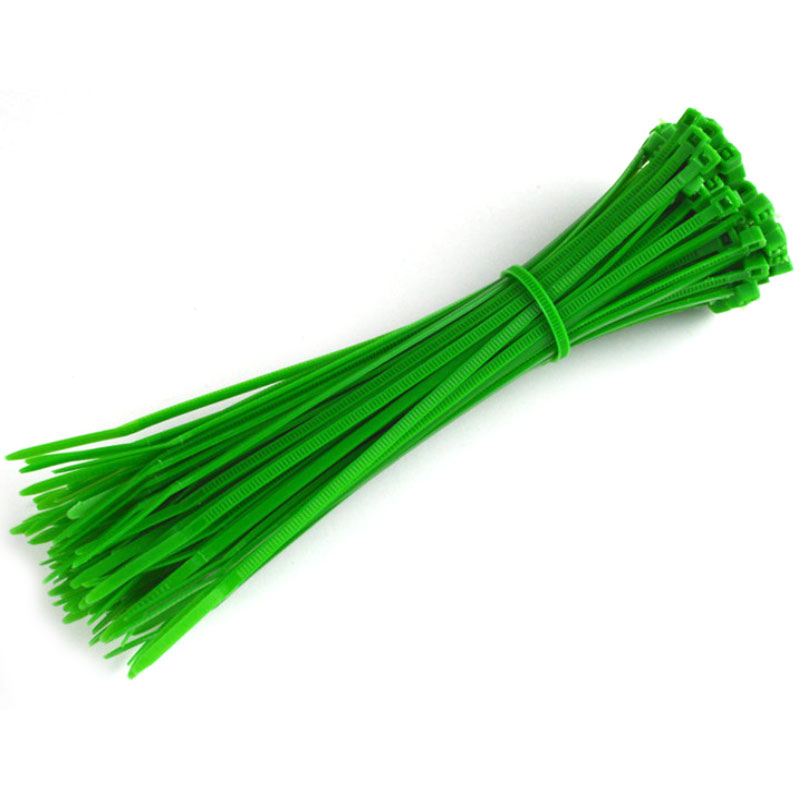

Self Locking Nylon Cable Ties

PRODUCT NAME:
Self Locking Nylon Cable Ties
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

●Material: Nylon 66, 94V-2 certificated by UL . Fire resisting Acid&erosion control, insulate well nd not apt to age.
●Operating temperature: -35℃ to 85℃.

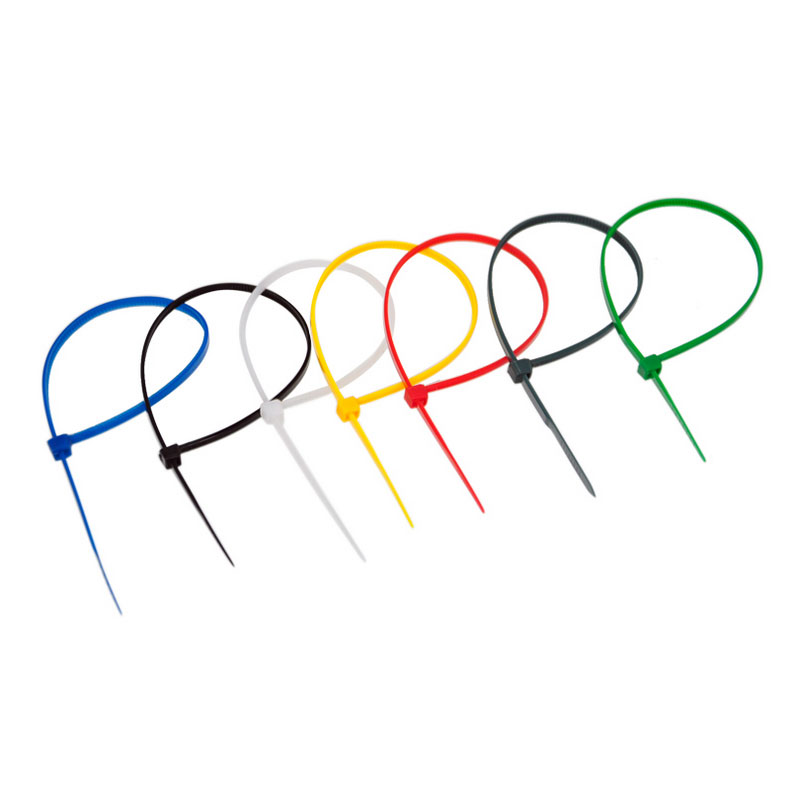

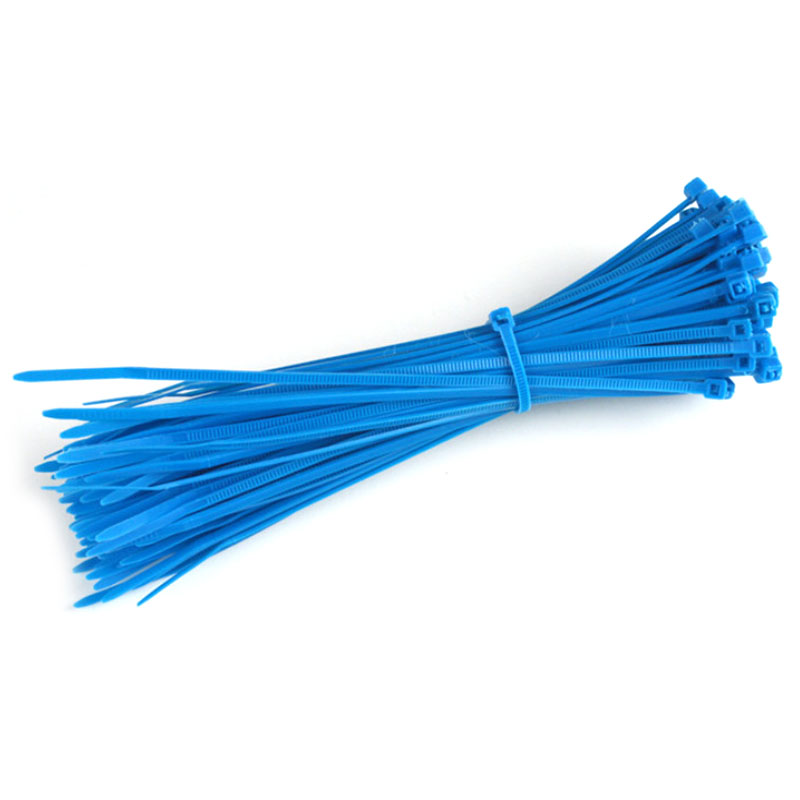

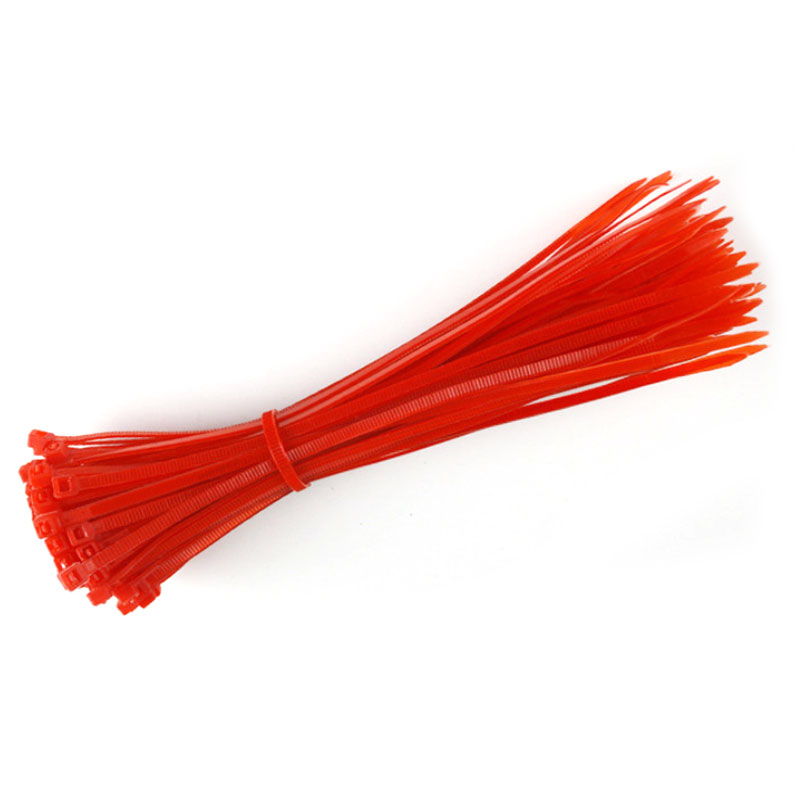

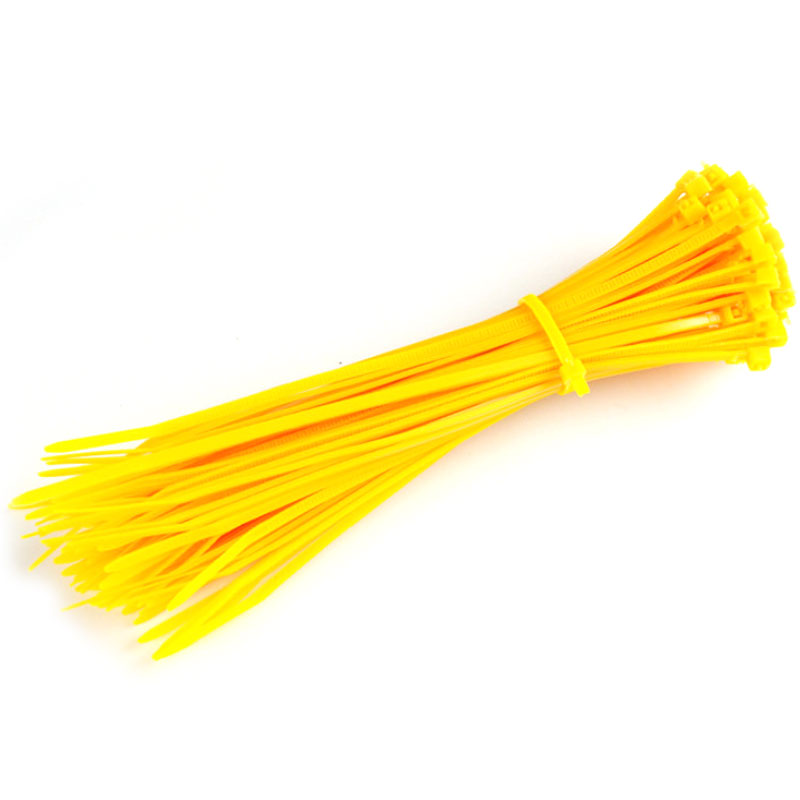

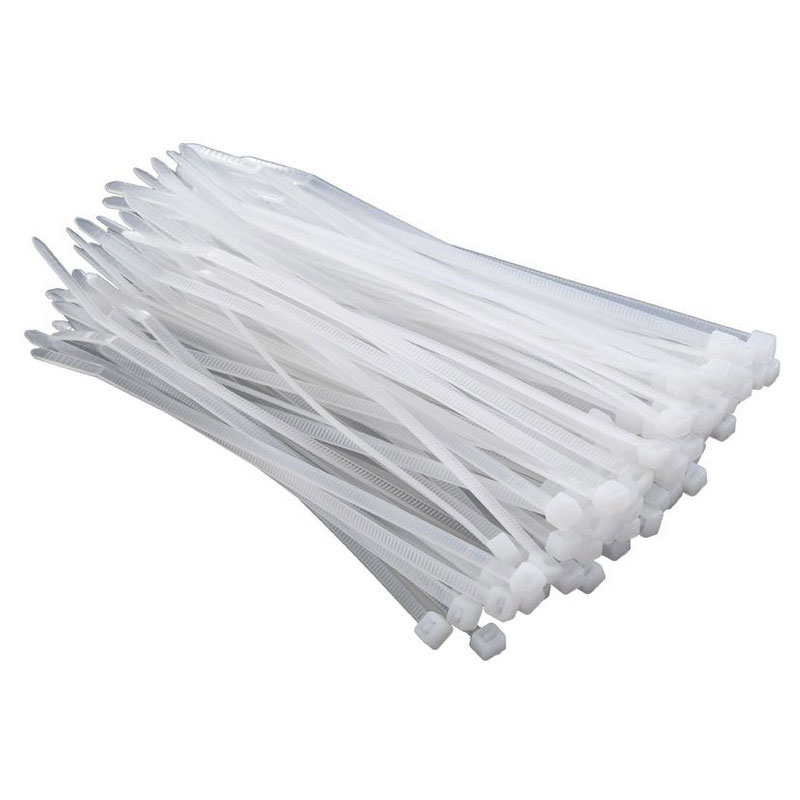

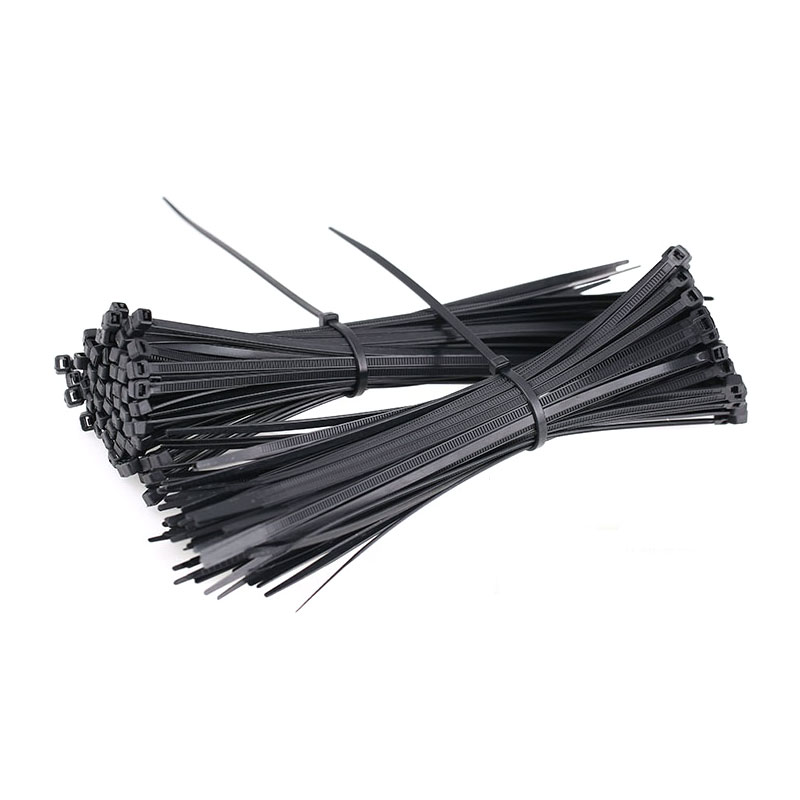

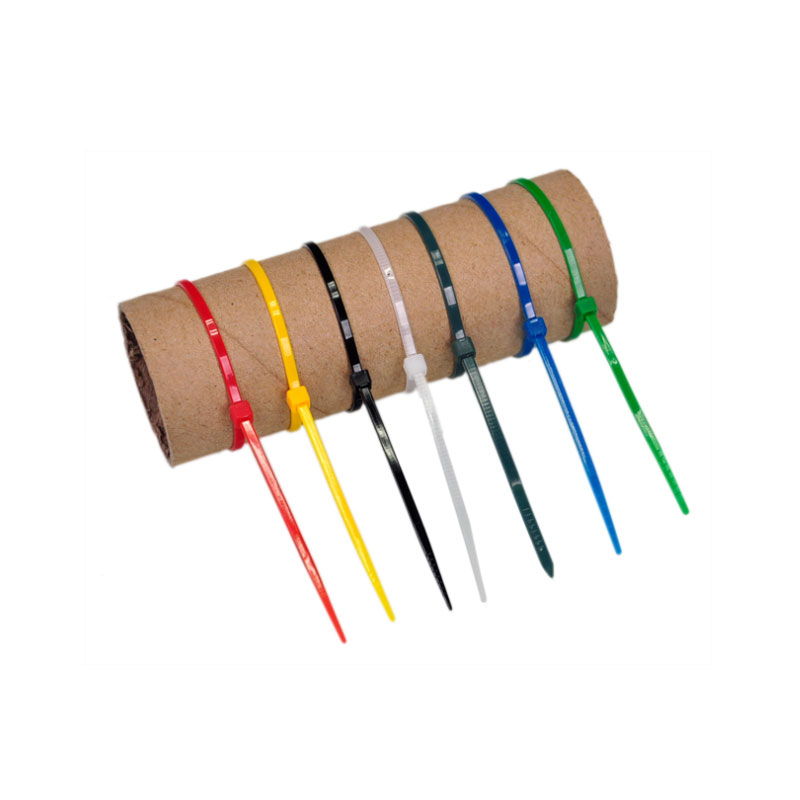

●Color: Natural (or white, standard color), UV black and other colors are available upon requested.

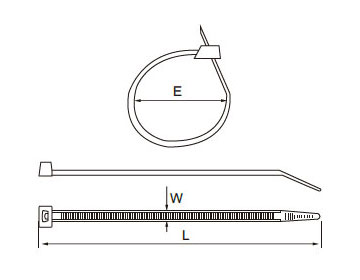

Item No. L W
(mm)
Bundle Diameter
(mm)
Tensile Strength
inch mm LBS KGS
2.5×60 2.4" 60 2.5 2-11 18 8
2.5×80 3.2" 80 2-16
2.5×100 4.0" 100 2-22
2.5×120 4.7" 120 2-30
2.5×150 6.0" 150 2-35
2.5×160 6.3" 160 2-40
2.5×200 8.0" 200 2-50
3.5×150 6.0" 150 3.5 3-35 40 18
3.5×180 7.1" 180 3-42
3.5×200 8.0" 200 3-50
3.5×250 10" 250 3-65
3.5×280 11" 280 3-70
3.5×300 12" 300 3-80
3.5×370 14.6" 370 3-105
4.8×120 4.7" 120 4.8 3-30 50 22
4.8×160 6.3" 160 3-40
4.8×180 7.1" 180 3-42
4.8×200 8.0" 200 3-50
4.8×250 10" 250 3-60
4.8×280 11" 280 3-70
4.8×300 12" 300 3-80
4.8×350 14" 350 3-90
4.8×370 14.6" 370 3-98
4.8×400 16" 400 3-105
4.8×430 16.9" 430 3-120
4.8×450 17.7" 450 3-130
4.8×500 19.7" 500 3-150
7.2×150 6.0" 150 7.2 3-35 120 55
7.2×200 8.0" 200 3-50
7.2×250 10" 250 4-65
7.2×300 12" 300 4-80
7.6×350 14" 350 7.6 4-90 120 55
7.6×400 16" 400 4-105
7.6×450 18" 450 4-110
7.6×500 20" 500 4-150
7.6×530 20.9" 530 4-160
7.6×550 21.6" 550 4-165
9.0×400 16" 400 9.0 8-105 175 79.4
9.0×450 18" 450 8-118
9.0×500 20" 500 8-150
9.0×550 21.6" 550 8-160
9.0×600 23.6" 600 8-170
9.0×650 25.6" 650 8-185
9.0×720 28.3" 720 10-195
9.0×760 28.3" 760 10-210
9.0×800 31.5" 800 10-230
9.0×900 35.5" 900 10-265
9.0×1020 29.4" 1020 10-300
9.0×1200 47.2" 1200 10-370
12.0×650 26.5" 650 12 14-185 250 114
12.0×900 25.5" 900 14-265
