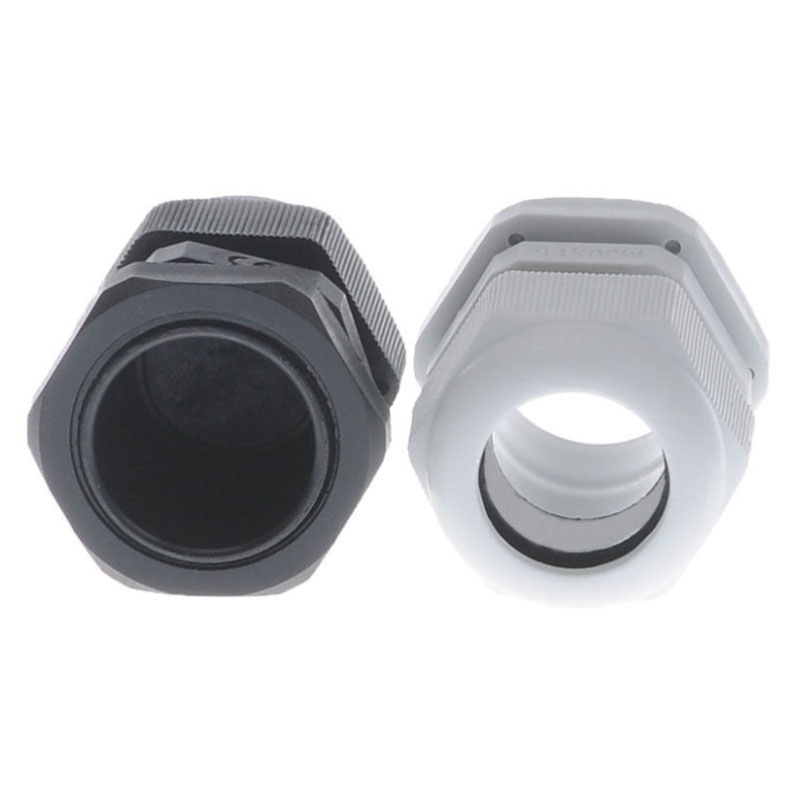

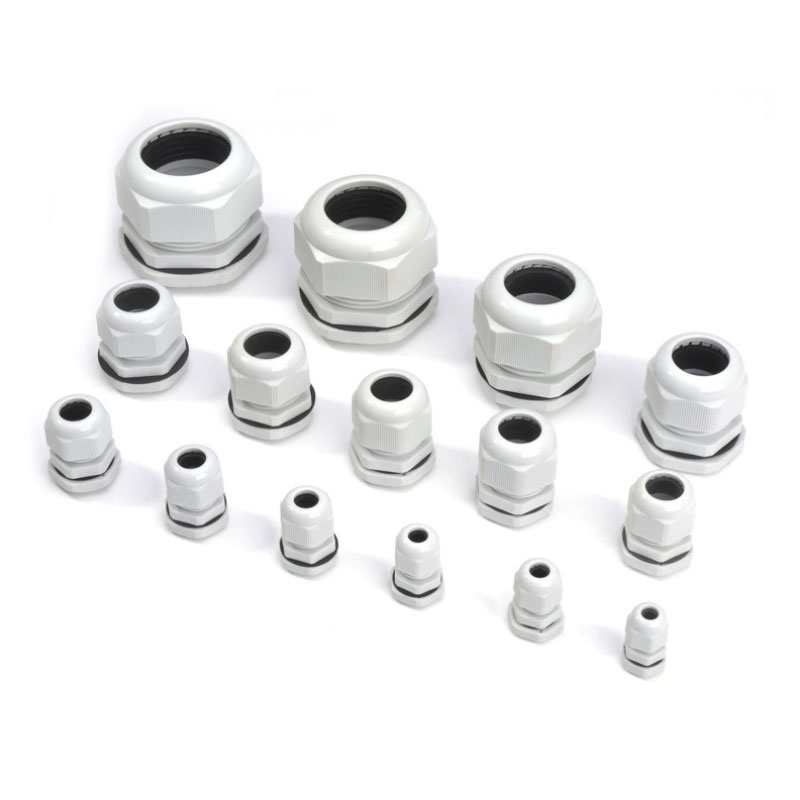

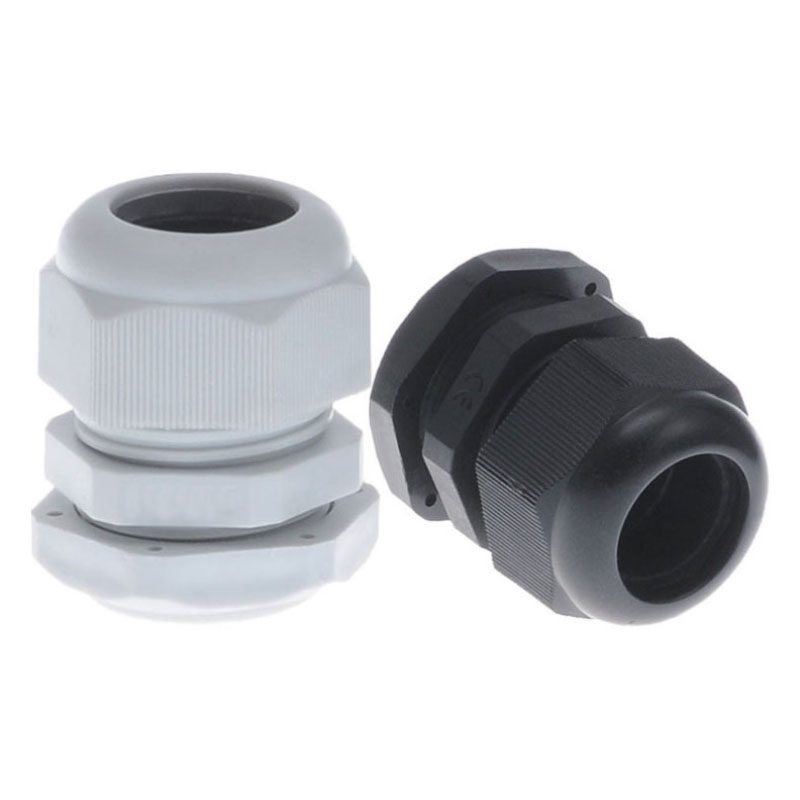

PG Plastic Cable Gland

PRODUCT NAME:
PG Plastic Cable Gland
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Technical Data
Certification CE
Protection Grade IP68
Product Material Nylon PA66 or PP
Thread Specification Metric, PG
Operating Temperature Static state: -40℃~100℃, instant heat resistance up to 120℃.
Dynamic state: -20℃~80℃, instant heat resistance up to 100℃.

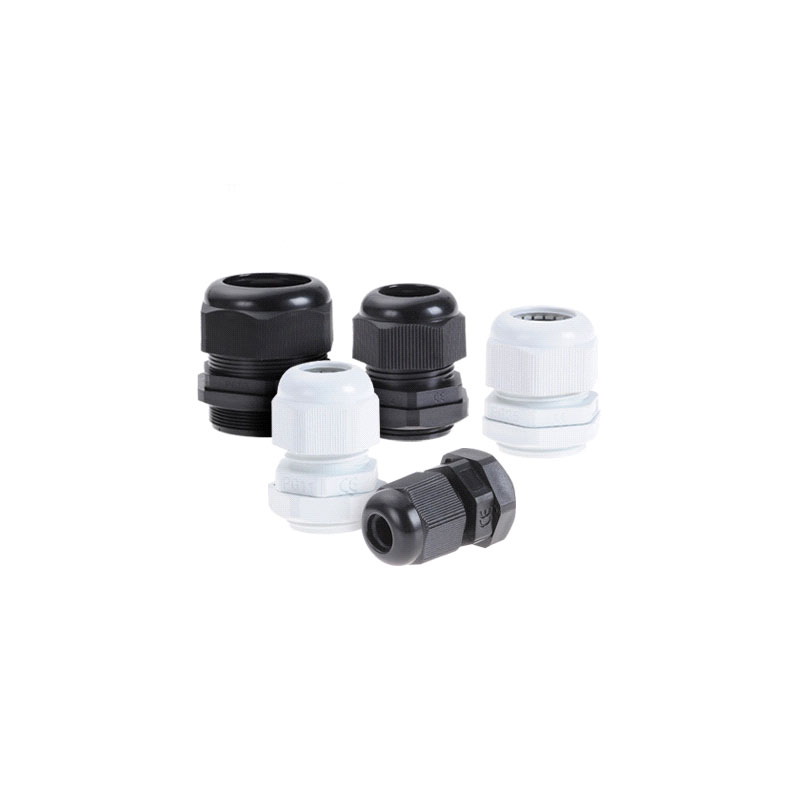

Color Black, gray, special colors can be customized
Three guarantees - to prevent hidden dangers , safe connection
1. Easy installation
It is not necessary to disassemble the fixed head of the waterproof connector, and the cable only be connected and tightened, saving time and convenient
2. Strong water resistance
Waterproof, dustproof, salt proof, acid and alkali resistant, alcohol, grease and general solvent, and can be used indoors and outdoors
3. Protection grade IP68

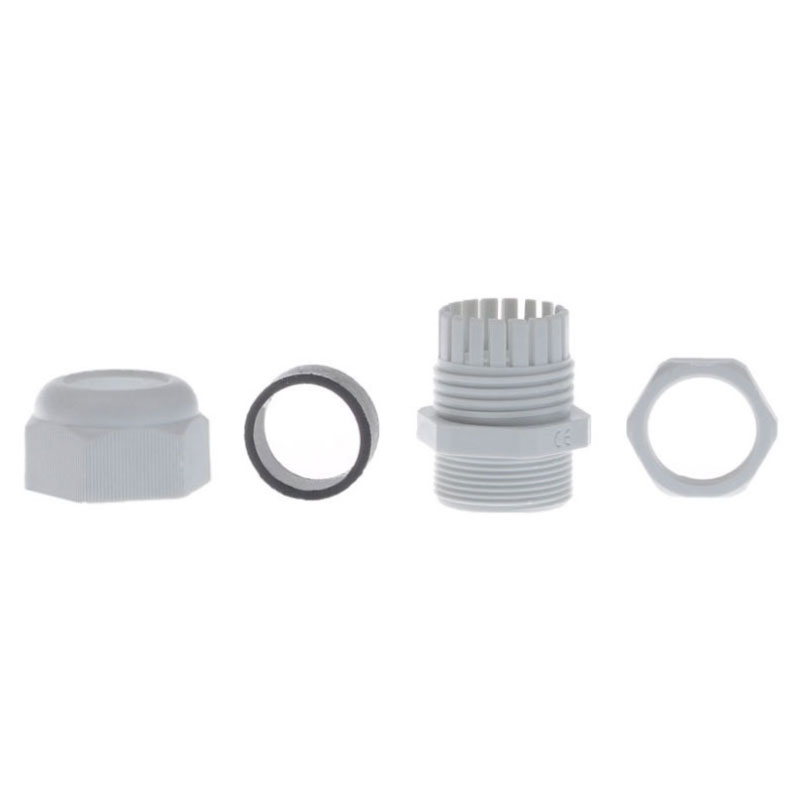

In the specified bayonet range, use the O-shape sealing ring and spin tight joint, to reach the IP68 protection grade

Technical Drawing

Model Applicable Cable
(mm)
O.D. of Thread
L2 (mm)
Thread Length
L1 (mm)
Wrench Diameter
(mm)

Package
QTY/PCS

PG7 3-6.5/2-5 12.5 9 18/16 100/6000
PG9 4-8/2-6 15.2 9 22/19 100/4000
PG11 5-10/3-7 18.6 9 24/22 100/2500
PG13.5 6-11/5-9 20.4 10 27/24 100/2000
PG16 10-13/7-12 22.5 10 30/27 100/1700

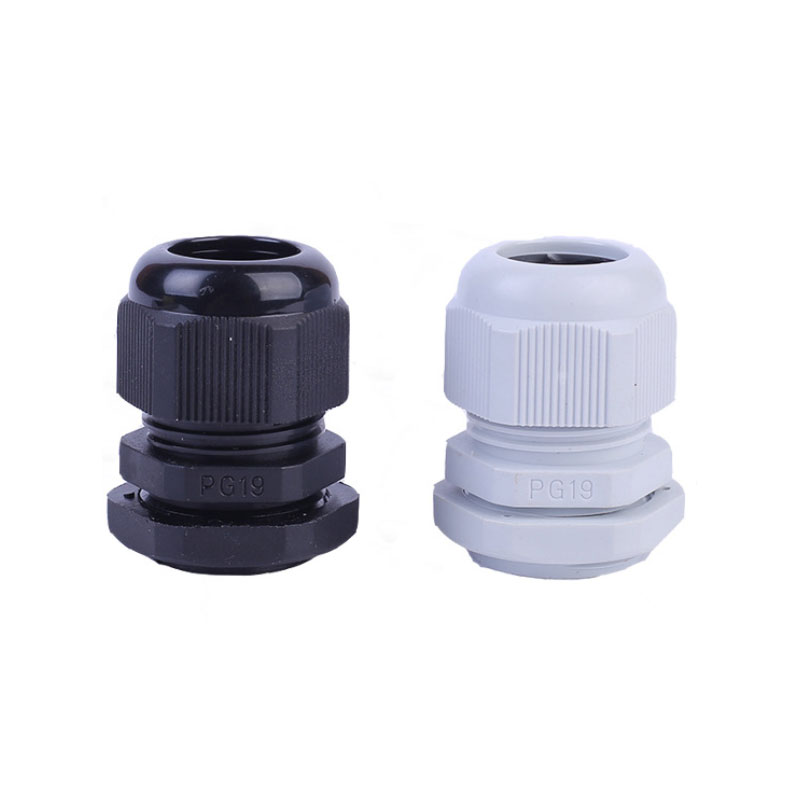

PG19 12-15/10-12 24 10 30/28 100/1600

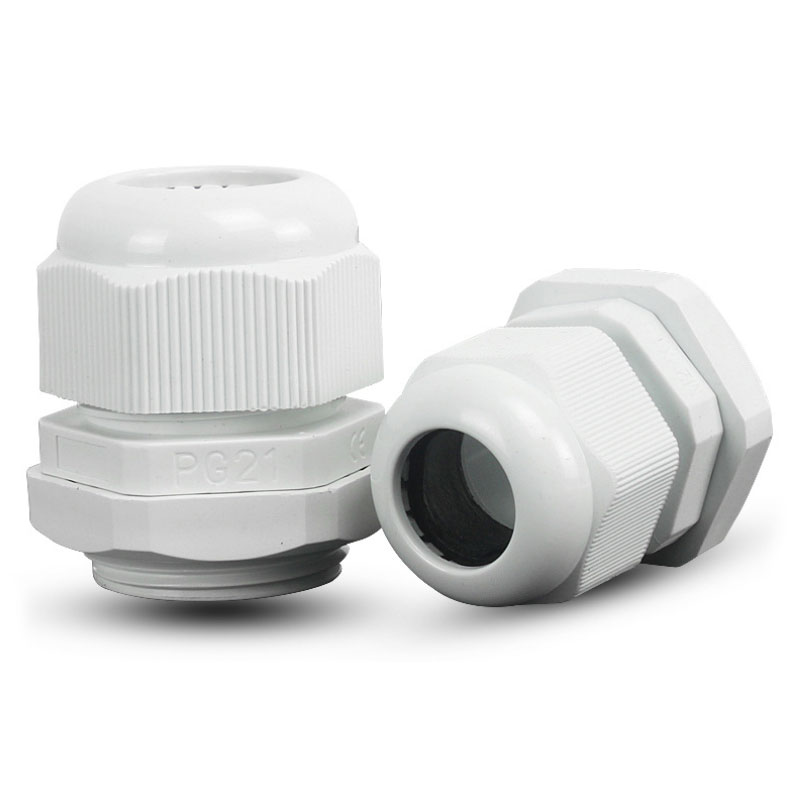

PG21 13-18/9-16 28.3 12 35/33 100/1000
PG25 16-12/13-18 30 12 37/35 100/800
PG29 18-25/13-20 37 12 45/42 50/500
PG36 22-32/20-26 47 15 58/52 20/360
PG42 32-38/25-31 54 18 62/58 20/220
PG48 37-44/29-35 59.3 18 70/64 20/240
PG63 42-50/32-40 71 30 83/77 10/100
