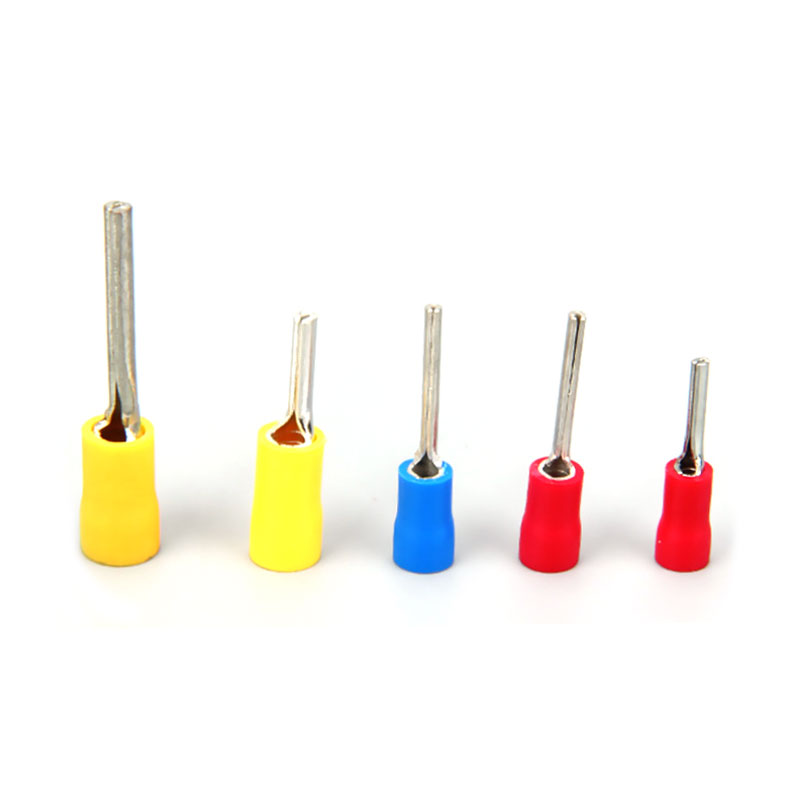

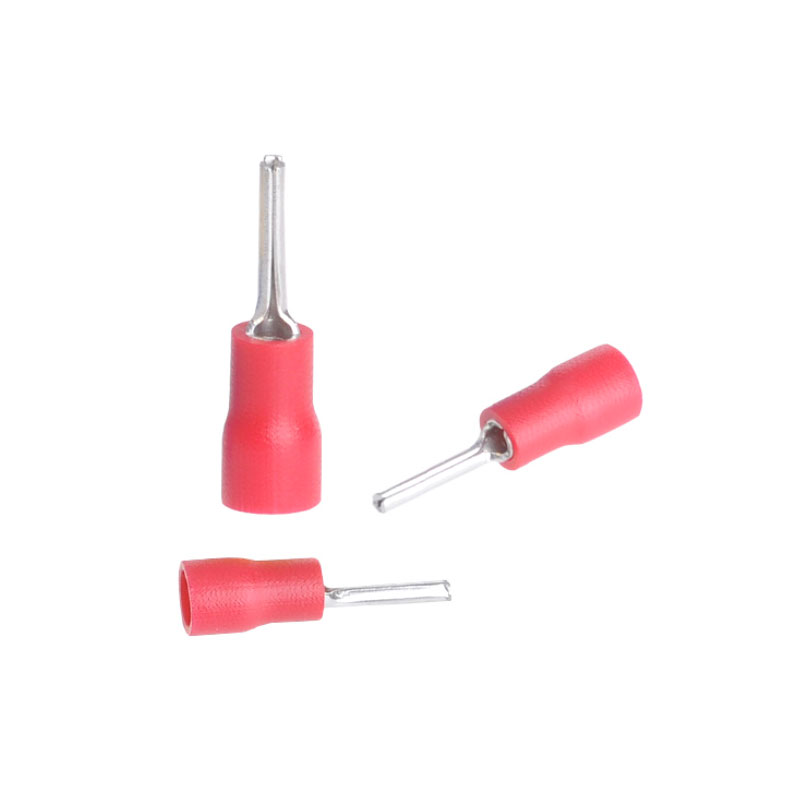

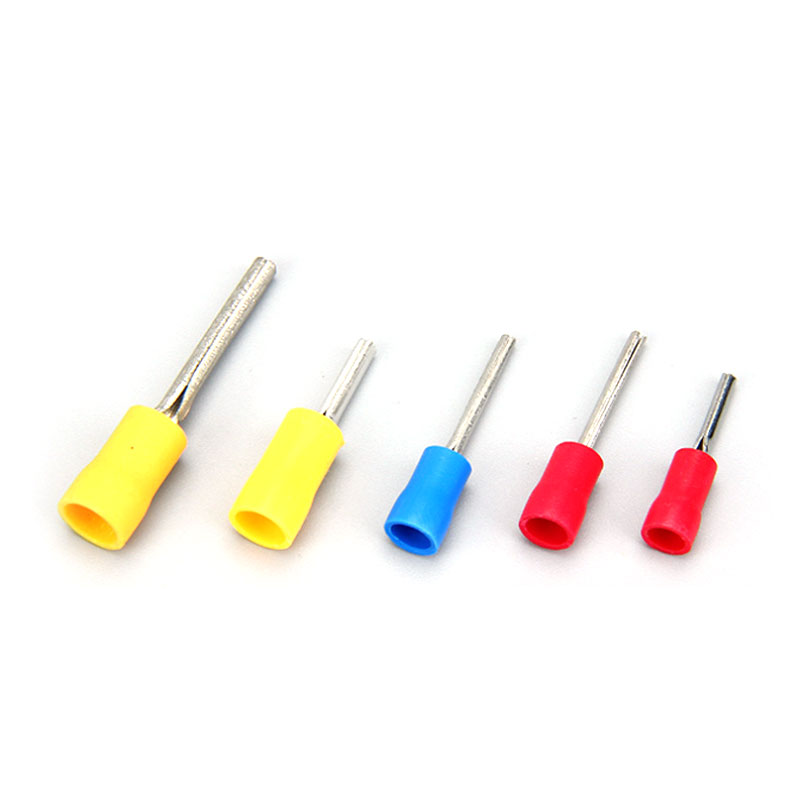

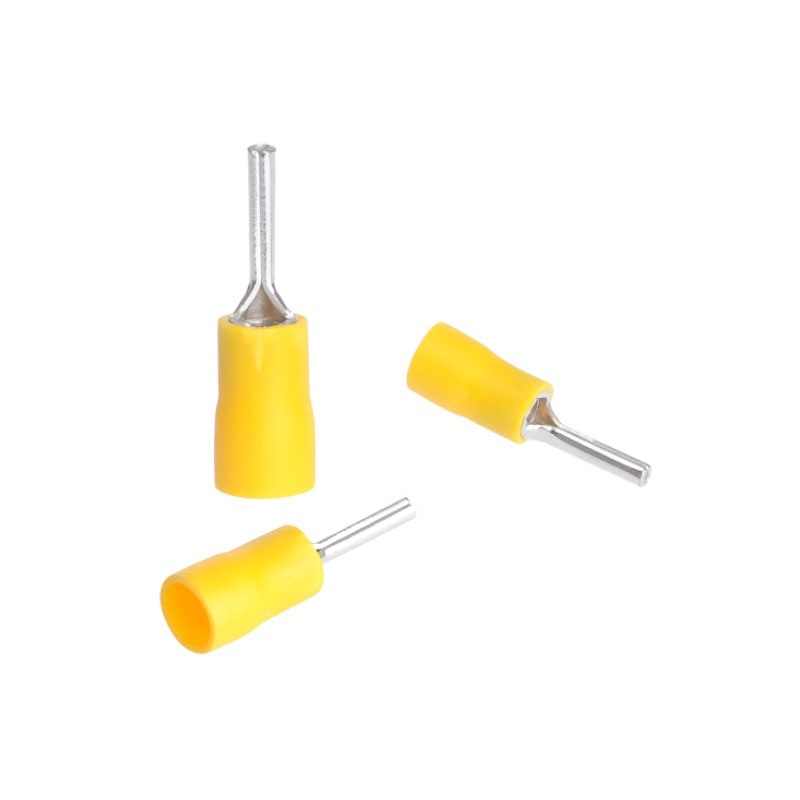

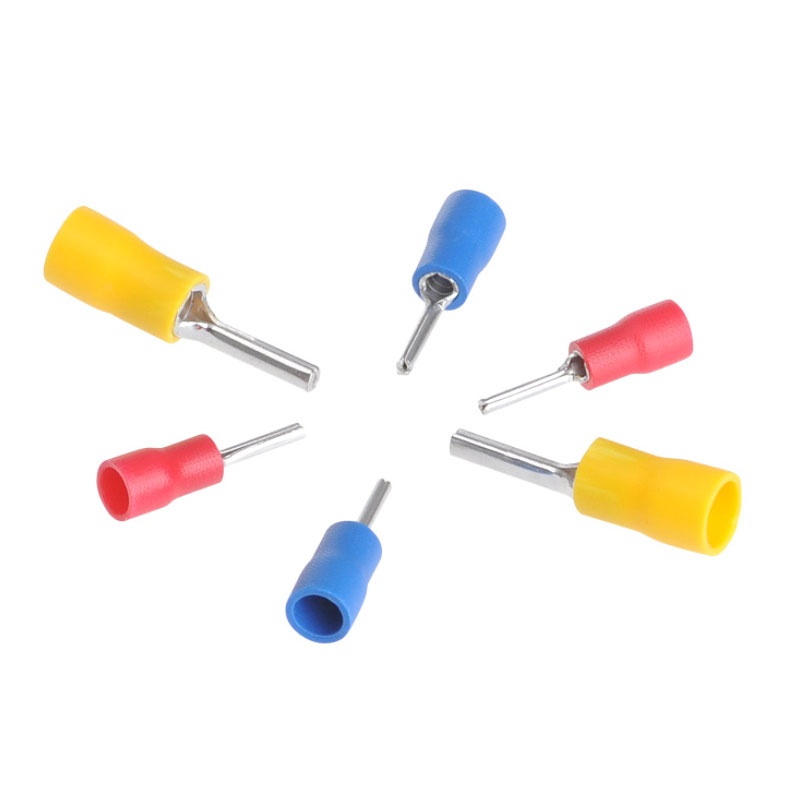

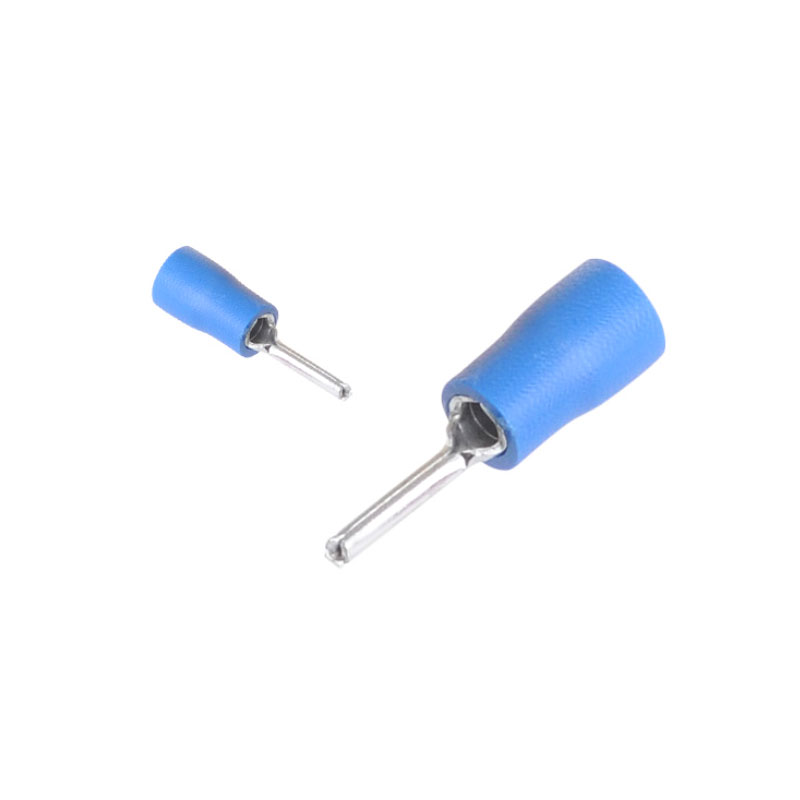

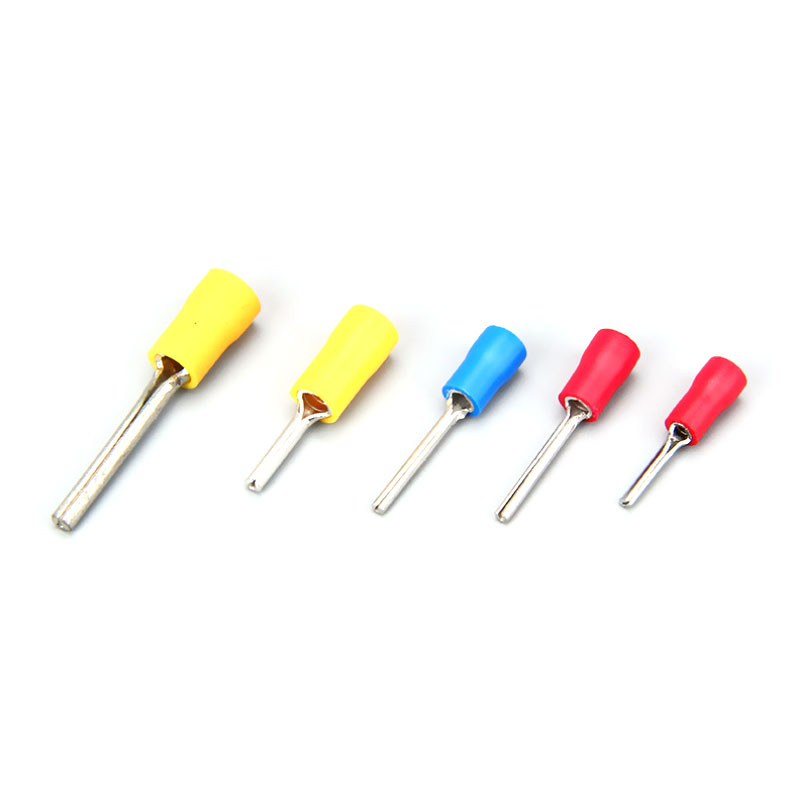

PTV Pre Insulated Pin Terminal

PRODUCT NAME:
PTV Pre Insulated Pin Terminal
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Parameter

Technical Data



Item No. Wire Section AWG Maximum current Material
PTV1.25 0.5~1.5mm² 22~16 19A Red Copper or Brass
PTV2 1.5~2.5mm² 16~14 27A Red Copper or Brass
PTV3.5 2.5~4mm² 14~12 37A Red Copper or Brass
PTV5.5 4~6mm² 12~10 48A Red Copper or Brass

Insulated Pin Terminal Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

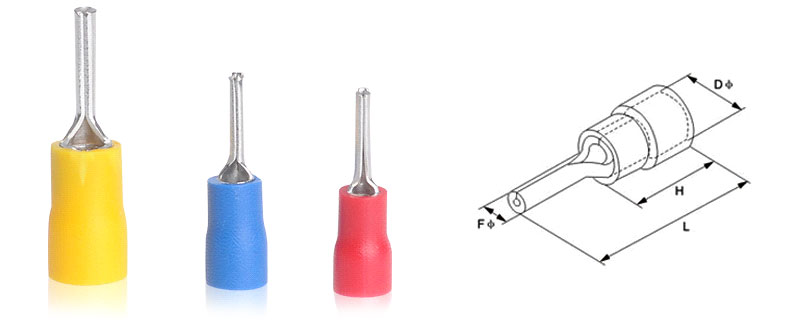

Technical Drawing

Structure Diagram (mm)

Item No Packaging
pcs / pack		 Dimension(mm) Color
L F E ΦD
PTV1.25-9 1000 19.0 1.9 10.0 4.3 Red
PTV1.25-10 1000 20.0
PTV1.25-12 1000 22.0
PTV1.25-13 1000 23.0
PTV1.25-18 1000 28.0
PTV2-9 1000 19.0 1.9 10.0 4.9 Blue
PTV2-10 1000 20.0
PTV2-12 1000 22.0
PTV2-13 1000 23.0
PTV2-18 1000 28.0
PTV3.5-10 1000 20.0 2.8 13.0 6.2 Black
PTV3.5-13 1000 25.5
PTV5.5-13 500 25.5 2.8 13.0 6.7 Yellow
