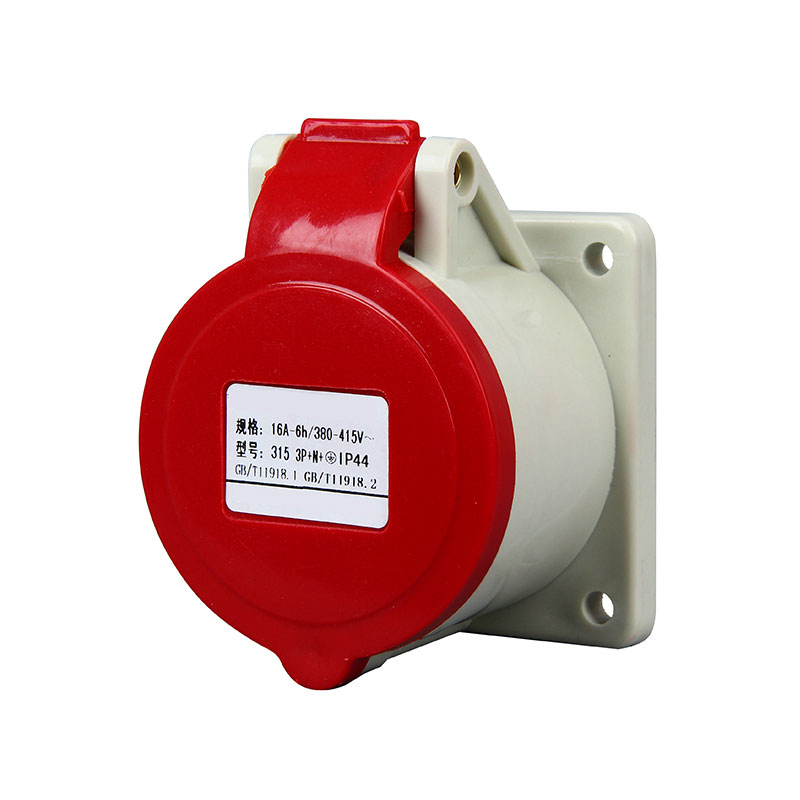

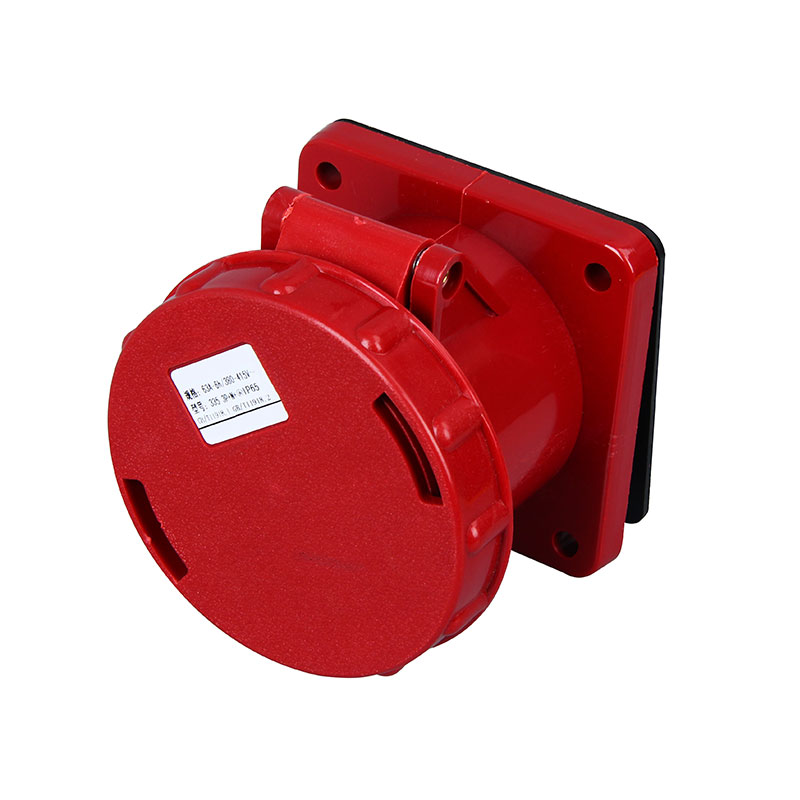

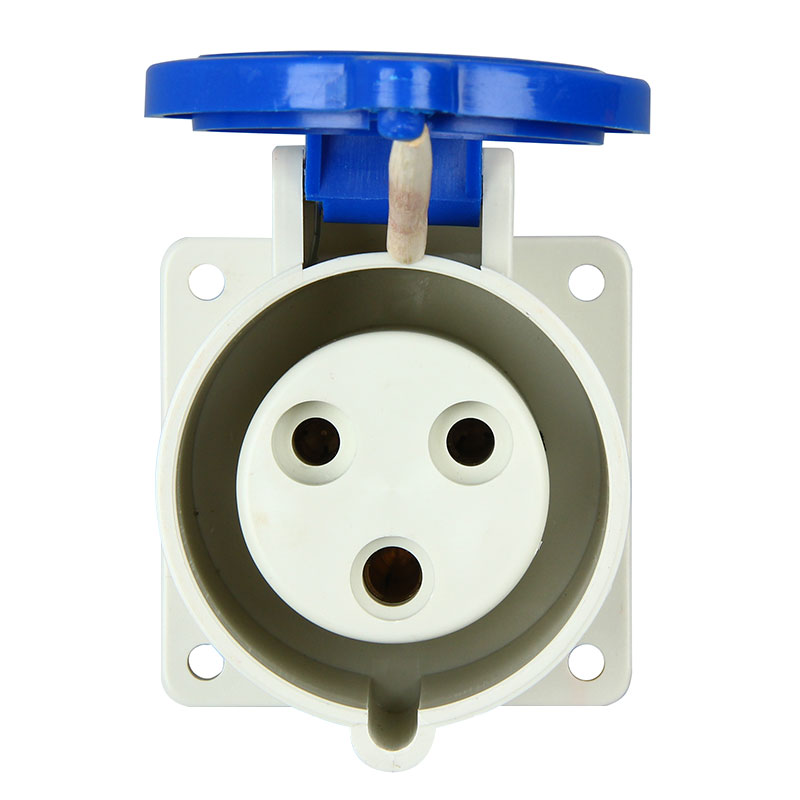

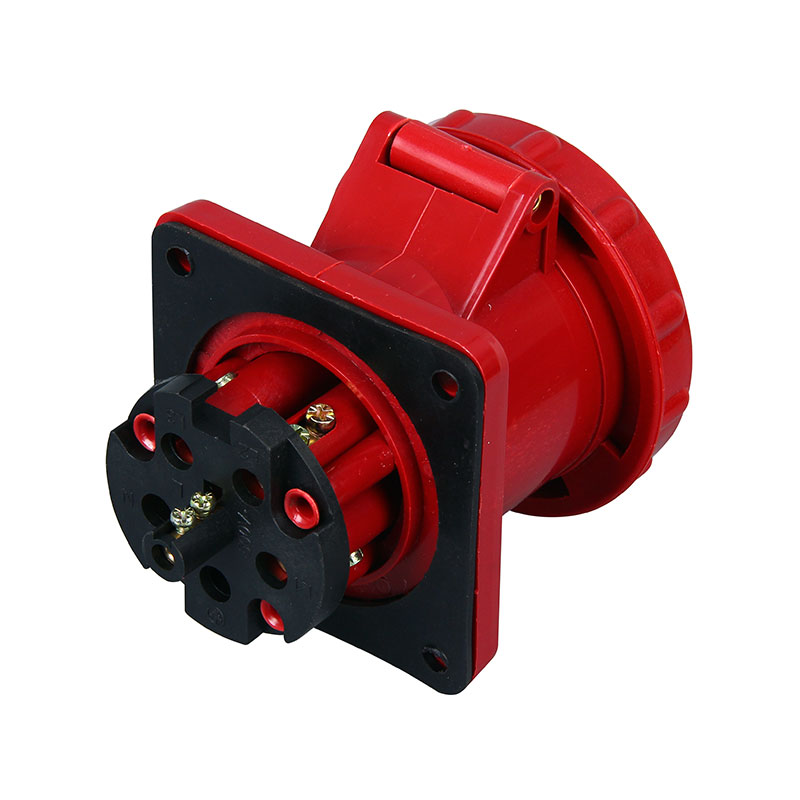

Industrial Panel Socket

PRODUCT NAME:
Industrial Panel Socket
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Model KB-313 KB-323 KB-314 KB-324 KB-315 KB-325 KB-333 KB-343 KB-334 KB-344 KB-335 KB-345
Earth Contact Position 6h 6h 6h 6h 6h 6h
Rated Voltage (V) 220-240V~2P+E 380-415V~3P+E 220-380V / 240-415V~3P+N+E 220~240V~2P+E 380~415V~3P+E 220-380V / 240-415V~3P+N+E
Protection Degree IP44 IP44 IP44 IP67 IP67 IP67
Pole 3 4 5 3 4 5
Rated Current (A) 16 32 16 32 16 32 63 125 63 125 63 125

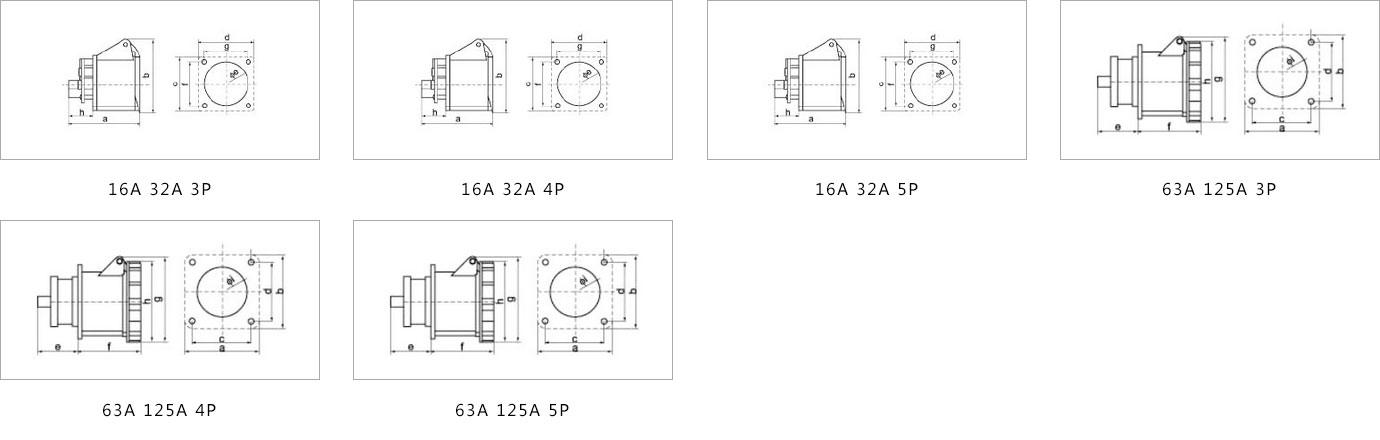

Dimension (mm) a 74 91 76 90 74 89 100 120 100 120 100 120
b 70 88 70 87 88 95 100 120 100 120 100 120
c 70 70 70 70 70 70 80 101 80 101 80 101
d 70 70 70 70 70 70 80 101 80 101 80 101
e 56 56 56 56 56 60 54.5 68 54.5 68 54.5 68
f 56.5 56.5 56.5 56.5 56.5 56.5 88 96 88 96 88 96
g 56.5 56.5 56.5 56.5 56.5 56.5 114 129 114 129 114 129
h 24 29 25 30 26 28 108 122 108 122 108 122
i - - - - - - 70 88 70 88 70 88
Cable Nominal Cross-section Area (mm²) 1-2.5 2.5-6 1-2.5 2.5-6 1-2.5 2.5-6 6-25 25-70 6-25 25-70 6-25 25-70
