Expand Nails With Screw

PRODUCT NAME:

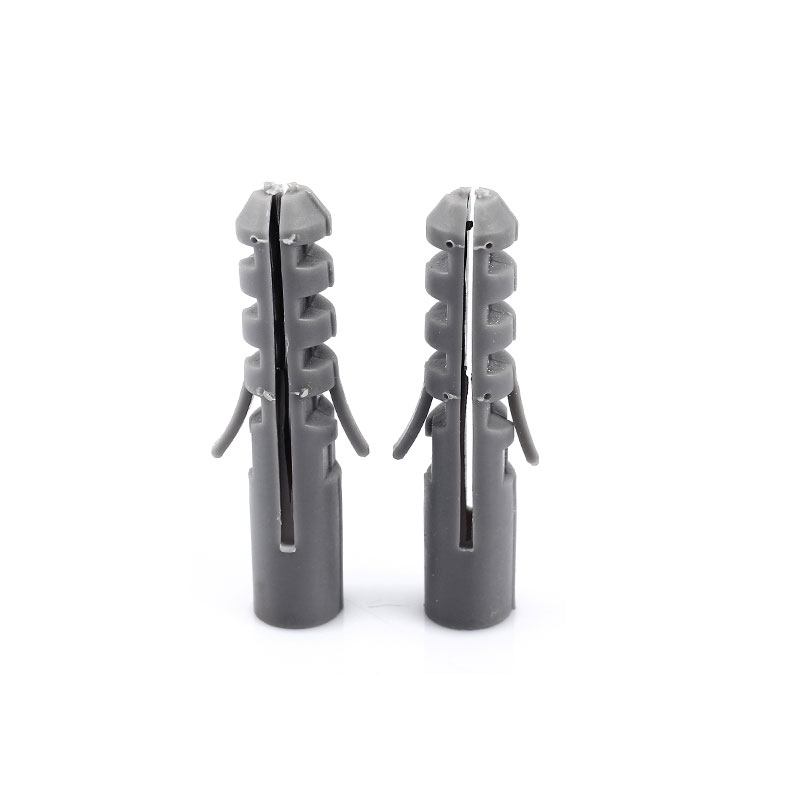

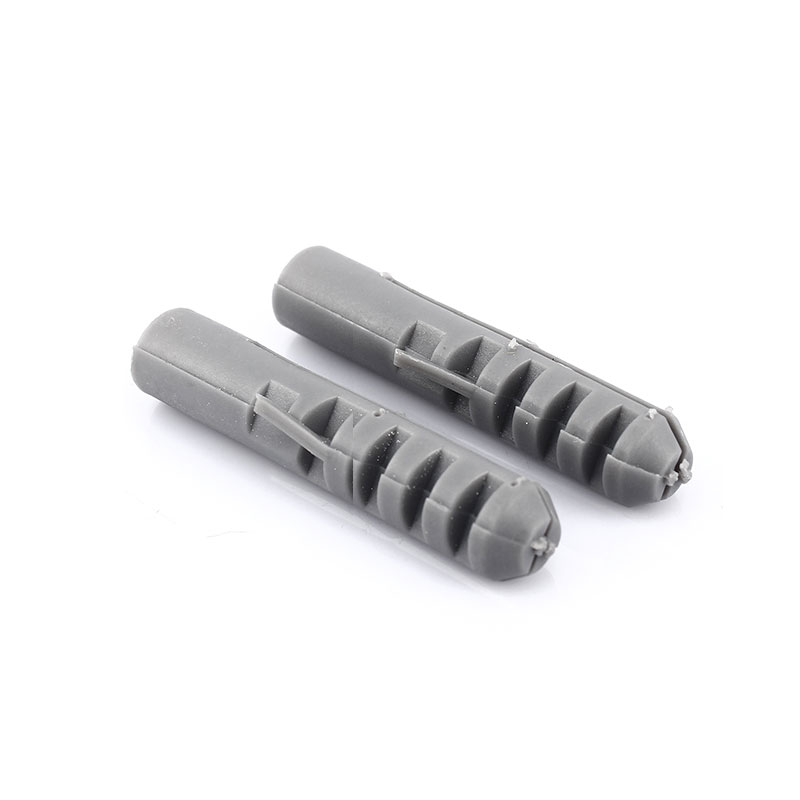

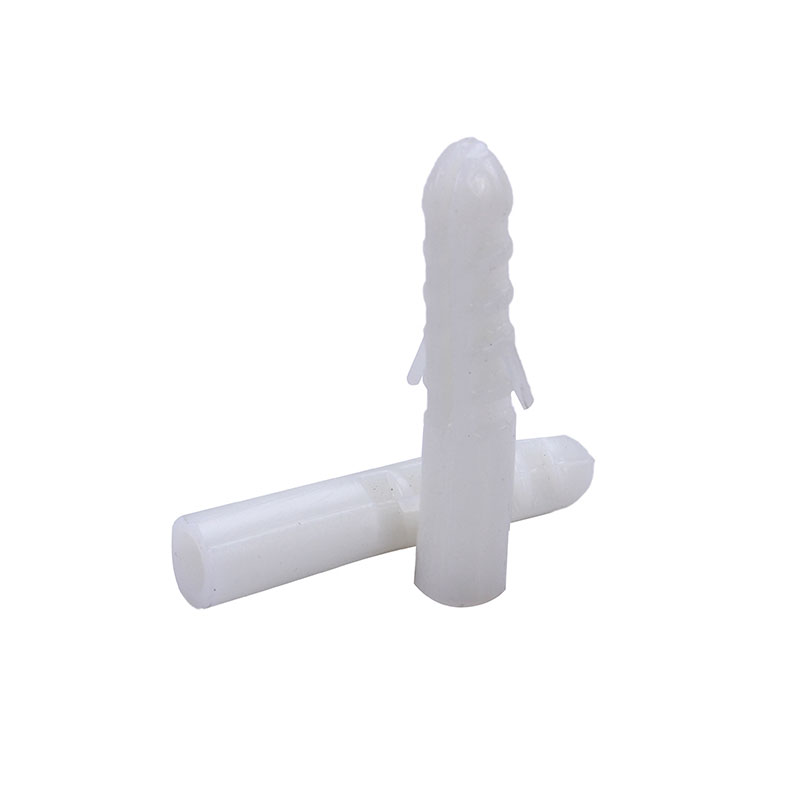

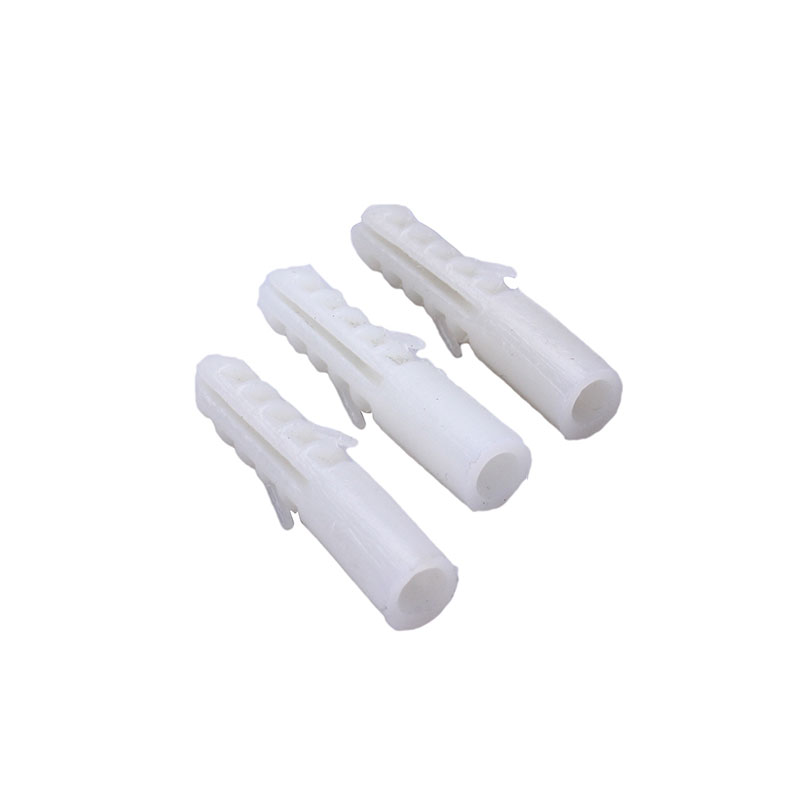

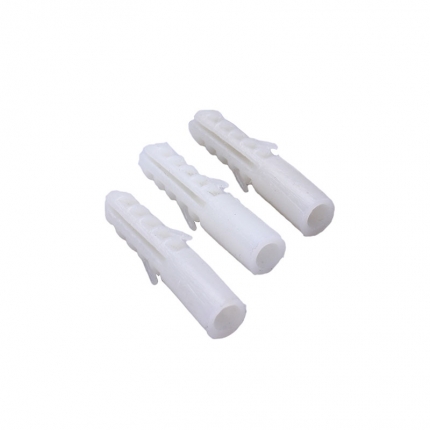

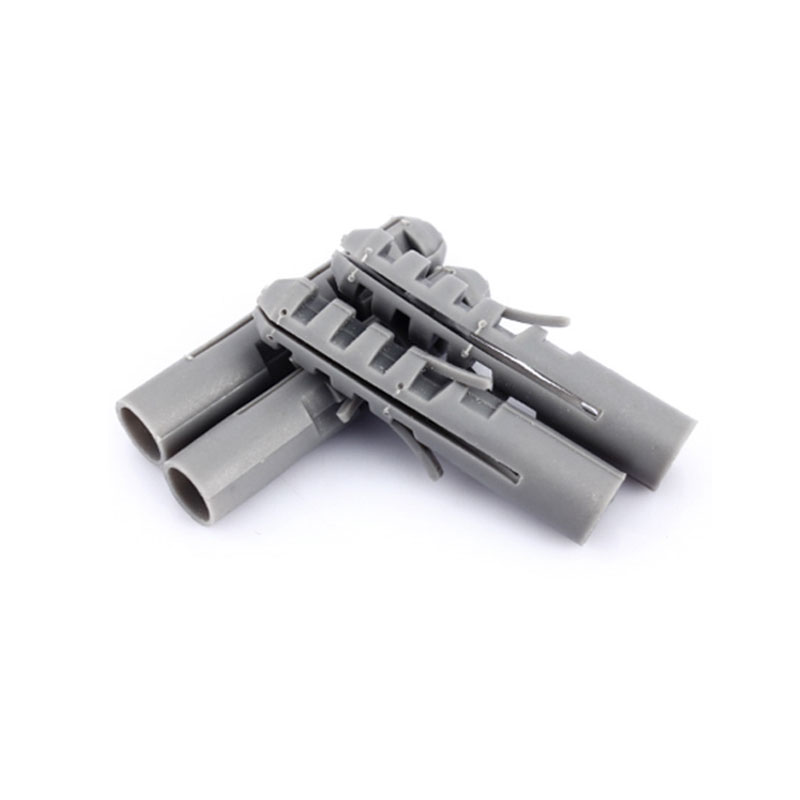

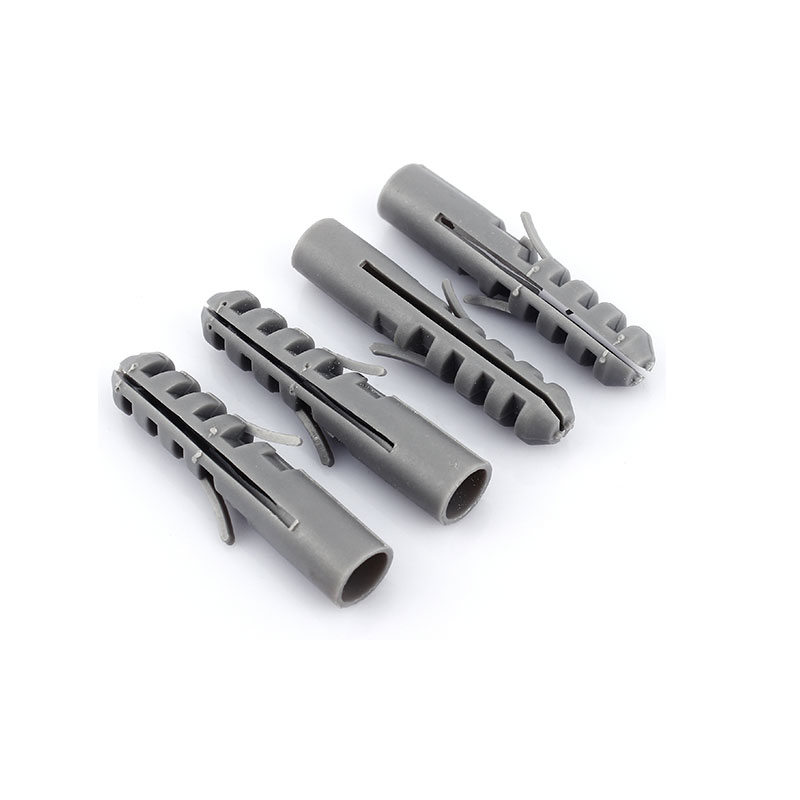

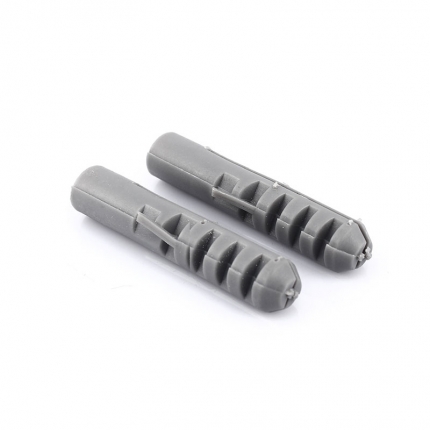

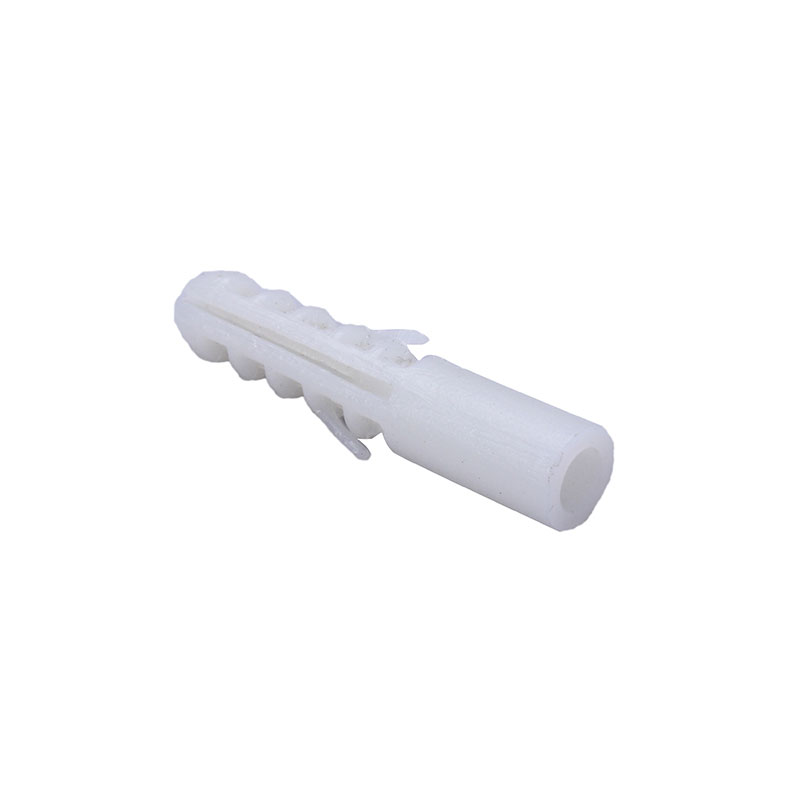

Expand Nails With Screw
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

● Geometry of the expansion pie, in the sold structure of the object in the expansion
● To prevent rotation of the structural design, when using the screw does not rotate in the air to follow
● Material: PE
● Color: Mostly grey and white, other colors are also available

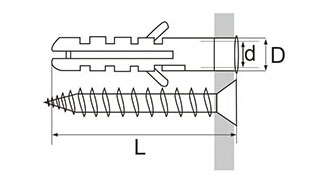

Item No. L
(mm)
D
(mm)
d
(mm)
Screw
(mm)
Package
(pcs/bag)
TPEN-05 25.3 5.0 3.5 φ3.0×25 100
pcs/bag
TPEN-06 29.1 6.0 4.8 φ4.0×30
TPEN-07 35.0 7.0 5.3 φ4.0×35
TPEN-08 37.9 8.0 5.8 φ4.0×40
TPEN-10 47.8 10.0 8.3 φ4.0×45
TPEN-12 57.5 12.0 10.0 φ6.0×50
