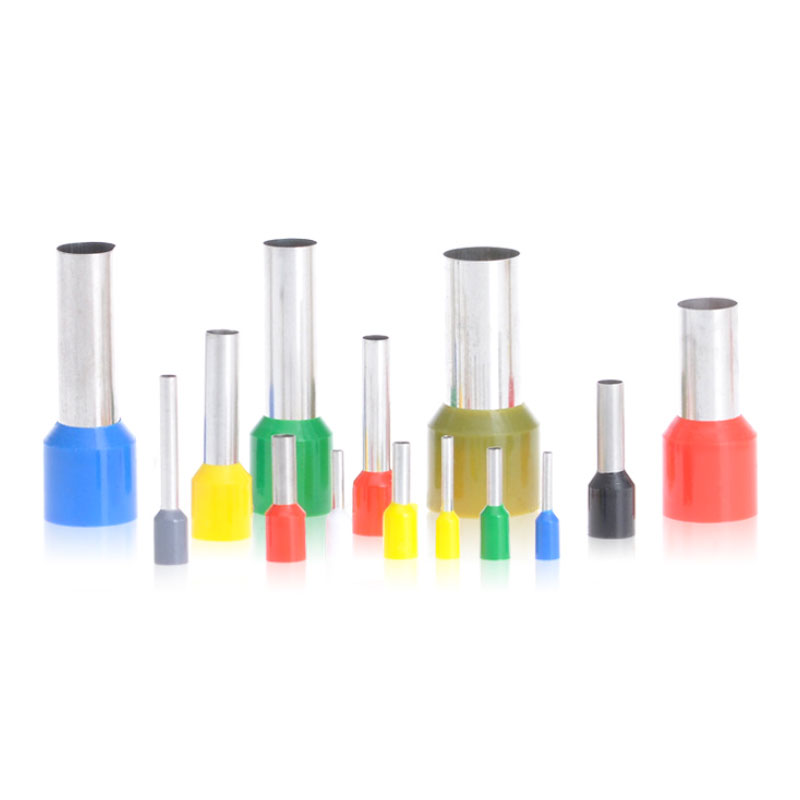

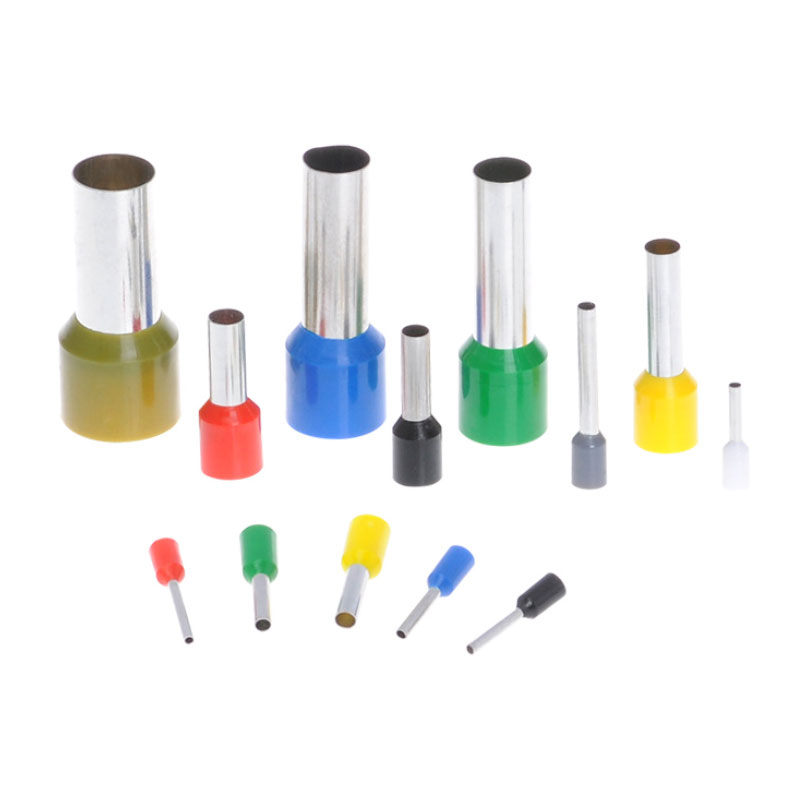

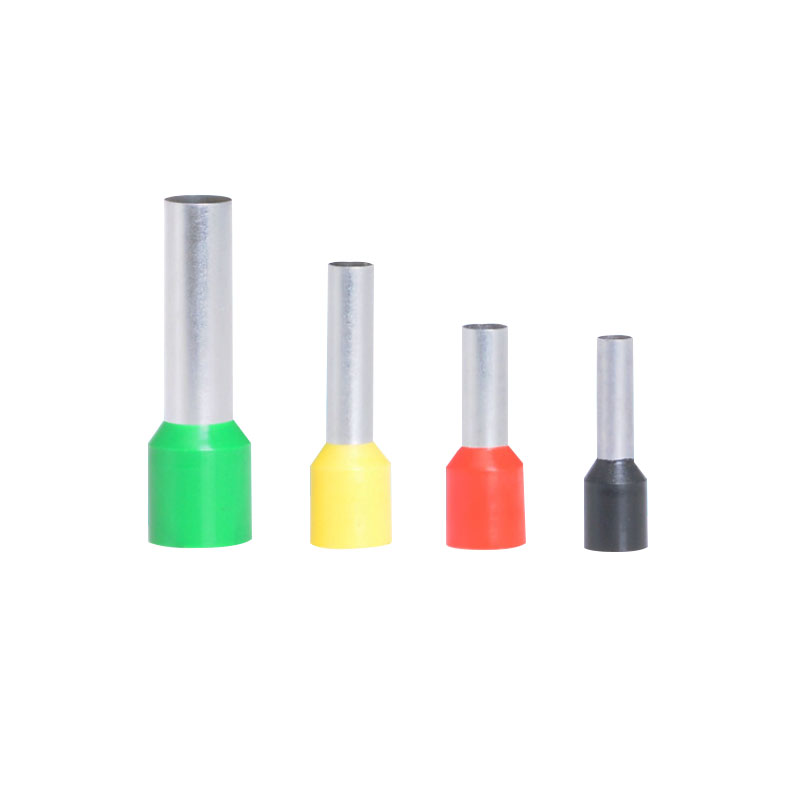

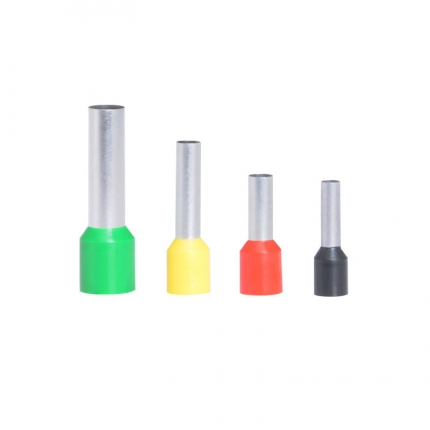

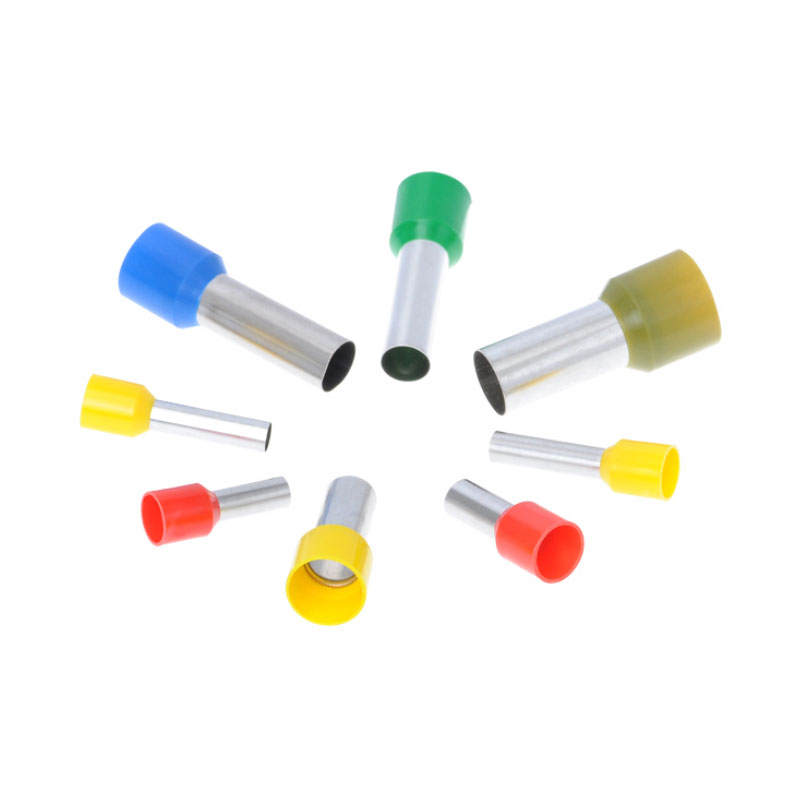

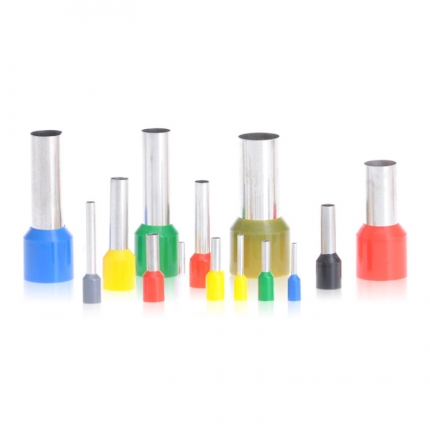

Pre-insulated Bootlace Terminals

PRODUCT NAME:
Pre-insulated Bootlace Terminals
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Parameter

Technical Data
Certification CE
Maximum Withstand Voltage 105℃ 600V
End Material Brass or red copper
Housing Material PVC plastic

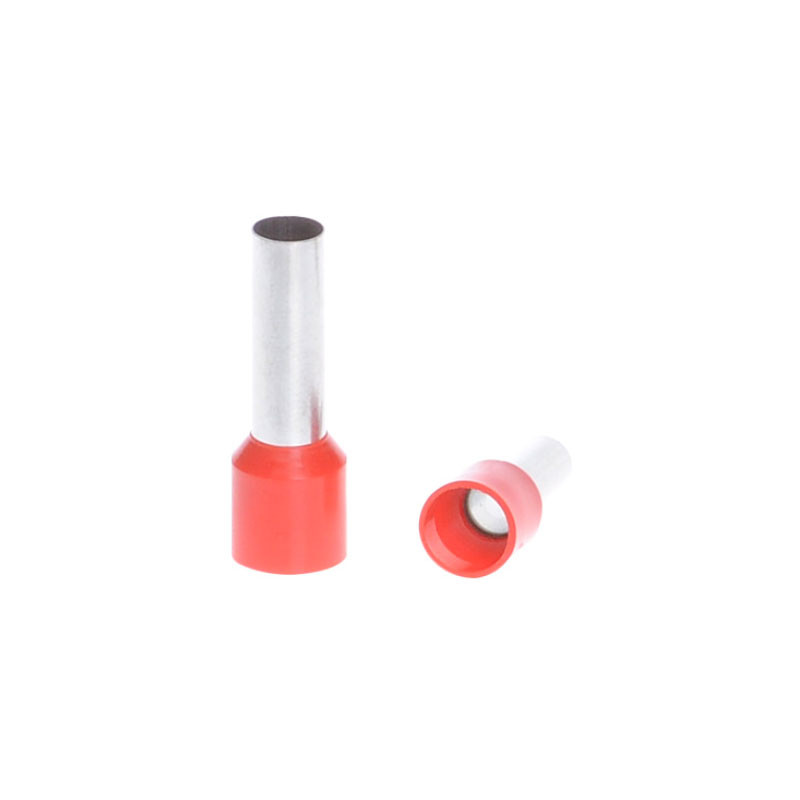

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

Technical Drawing

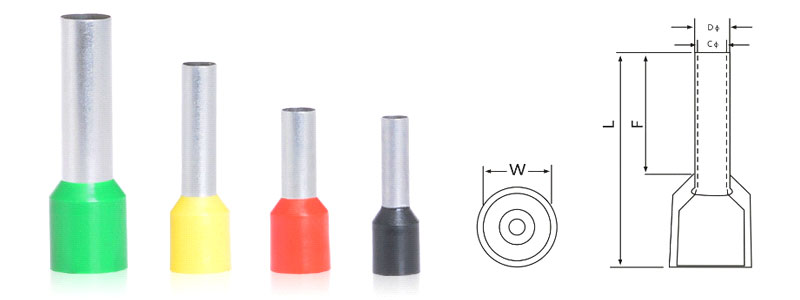

Structure Diagram (mm)

Item No Packaging
pcs / pack		 Dimension(mm) Wire Section Color
F L W ΦD ΦC A.W.G
E 0506 1000 6.0 12.0 2.6 1.3 1.0 #22 0.5 Orange
White
E 0508 1000 8.0 14.0
E 0510 1000 10.0 16.0
E 0512 1000 12.0 18.0
E 7506 1000 6.0 12.4 2.8 1.5 1.2 #20 0.75 White
Blue
E 7508 1000 8.0 14.6
E 7510 1000 10.0 16.4
E 7512 1000 12.0 18.4
E 1006 1000 6.0 12.4 3.0 1.7 1.4 #18 1.0 Yellow
Red
E 1008 1000 8.0 14.6
E 1010 1000 10.0 16.4
E 1012 1000 12.0 18.4
E 1508 1000 8.0 14.6 3.5 2.0 1.7 #16 1.5 Red
Black
E 1510 1000 10.0 16.4
E 1512 1000 12.0 18.4
E 1518 1000 18.0 24.4
E 2508 1000 8.0 15.2 4.0 2.6 2.3 #14 2.5 Blue
Grey
E 2510 1000 10.0 17.2
E 2512 1000 12.0 19.2
E 2518 1000 18.0 25.2
E 4009 1000 9.0 16.5 4.4 3.2 2.8 #12 4.0 Grey
Orange
E 4012 1000 12.0 19.5
E 4018 1000 18.0 25.5
E 6010 1000 10.0 18.0 6.3 3.9 3.5 #10 6.0 Green
Black
E 6012 1000 12.0 20.0
E 6018 1000 18.0 26.0
E 10-12 1000 12.0 21.5 7.6 4.9 4.5 #7 10.0 Milky white
Brown
E 10-18 1000 18.0 27.5
E 16-12 500 12.0 22.2 8.8 6.2 5.8 #5 16.0 Green
Milky white
E 16-18 500 18.0 28.2
E 25-16 200 16.0 29.0 11.2 7.9 7.5 #4 25.0 Brown
Black
E 25-22 200 22.0 35.0
E 35-16 200 16.0 30.0 12.7 8.7 8.3 #2 35.0 Taupe
E 35-25 200 25.0 39.0
E 50-20 200 20.0 36.0 15.3 10.9 10.3 #1 50.0 Olive
E 50-25 200 25.0 41.0
