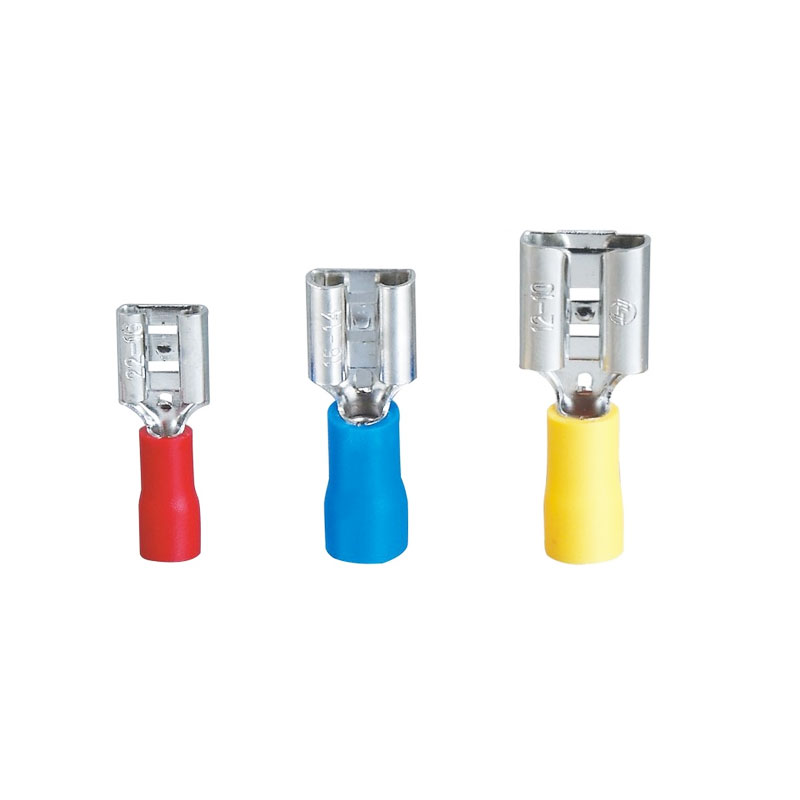

FDD Female Crimp Terminal

PRODUCT NAME:
FDD Female Crimp Terminal
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Parameter

Technical Data



Item No. Wire Section AWG Maximum current Material
FDD1.25 0.5~1.5mm² 22~16 10A Red Copper or Brass
FDD2 1.5~2.5mm² 16~14 15A Red Copper or Brass
FDD5.5 4~6mm² 12~10 24A Red Copper or Brass

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

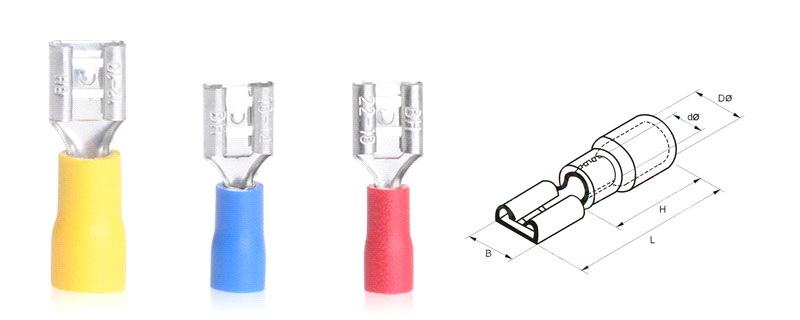

Technical Drawing

Structure Diagram (mm)

Item No Tame Tab Thickness Packaging
pcs / pack		 Dimension(mm) Color
B L H ΦD Φd
FDD1.25-110(5) 0.5×2.8 0.3 1000 3.8 19.0 10.0 3.8 1.7 Red
FDD1.25-110(8) 0.8×2.8 0.3 1000 3.8 19.0
FDD1.25-187(5) 0.5×4.75 0.35 1000 5.6 19.0
FDD1.25-187(8) 0.8×4.75 0.35 1000 5.6 19.0
FDD1.25-205 0.5×5.2 0.35 1000 6.5 20.0
FFDD1.25-250 0.8×6.35 0.4 1000 7.4 21.0
FDD2-110(5) 0.5×2.8 0.3 1000 3.8 19.0 10.0 4.3 2.3 Blue
FDD2-110(8) 0.8×2.8 0.3 1000 3.8 19.0
FDD2-187(5) 0.5×4.75 0.35 1000 5.6 19.0
FDD2-187(8) 0.8×4.75 0.35 1000 5.6 19.0
FDD2-205 0.5×5.2 0.35 1000 6.5 20.0
FDD2-250 0.8×6.35 0.4 1000 7.4 21.0
FDD2-312 0.8×8.0 0.4 1000 9.0 23.0
FDD5.5-250 0.8×6.35 0.4 1000 7.4 25.0 13.0 5.7 3.4 Yellow
FDD5.5-375 1.2×9.4 0.5 500 10.9 29.6
