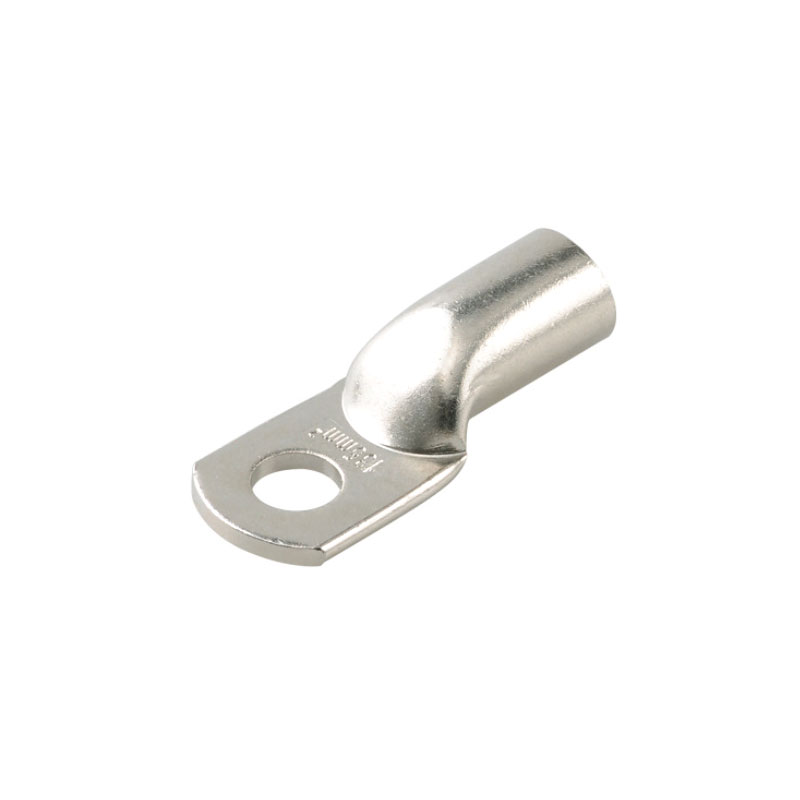

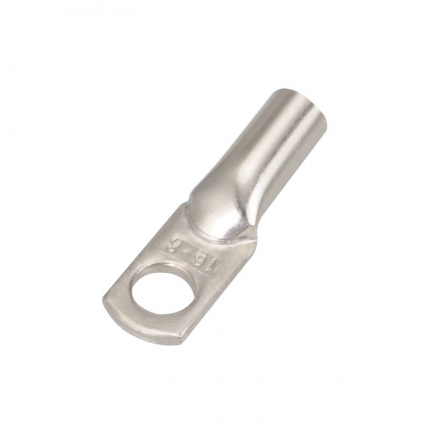

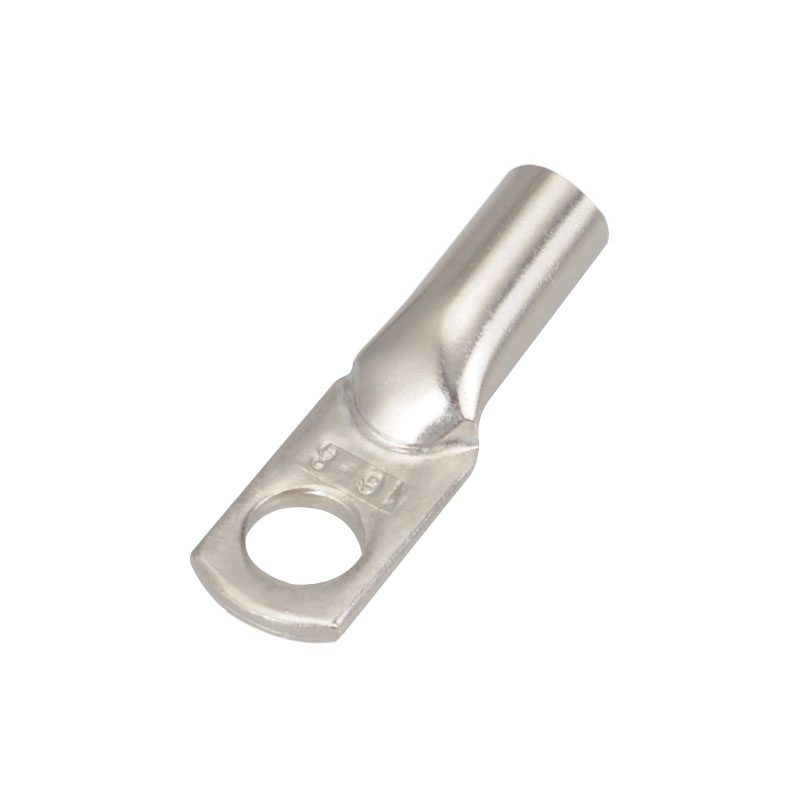

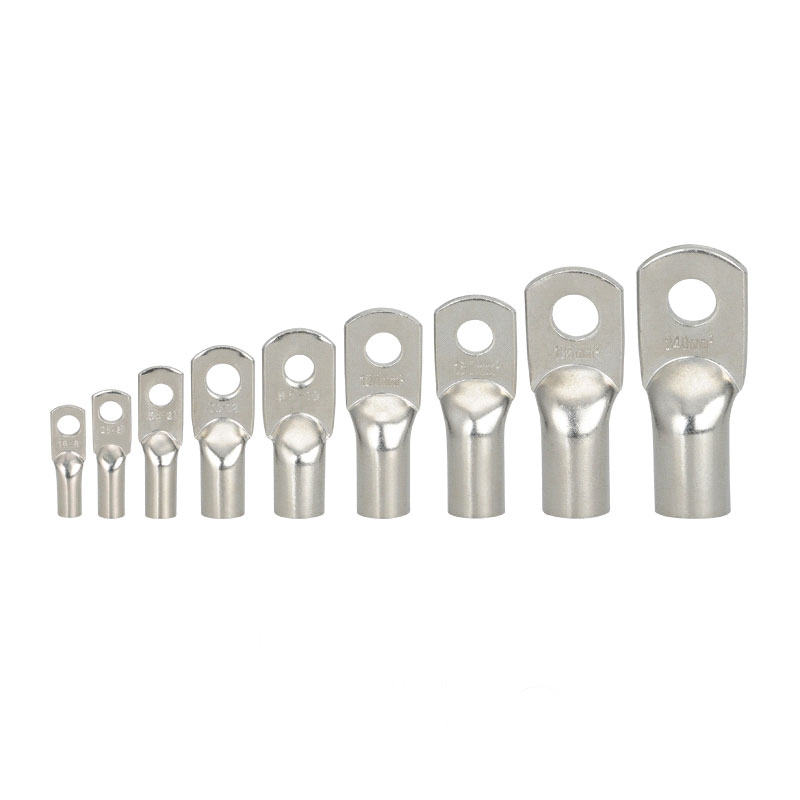

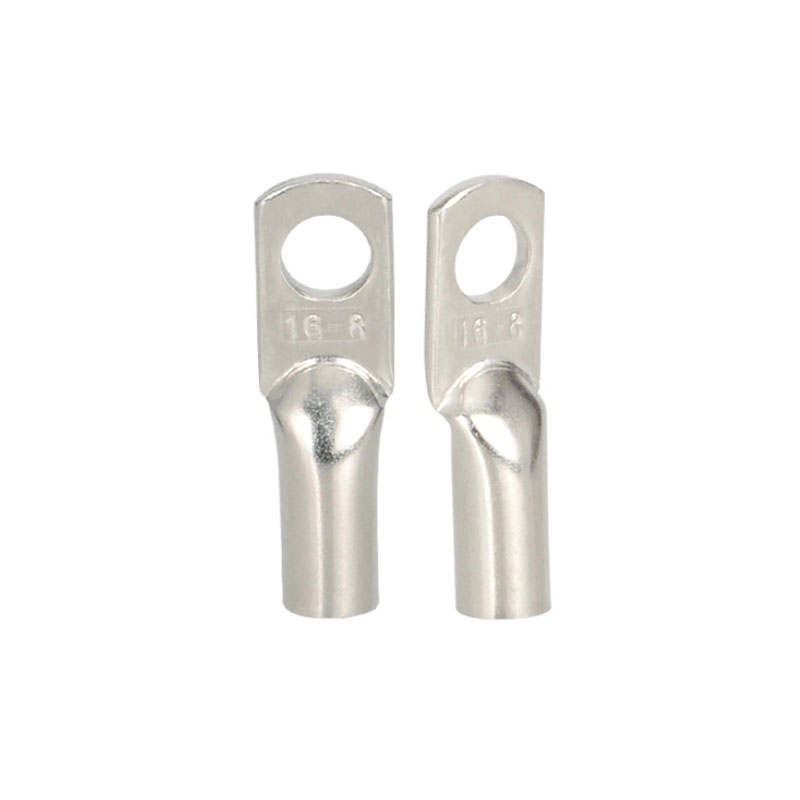

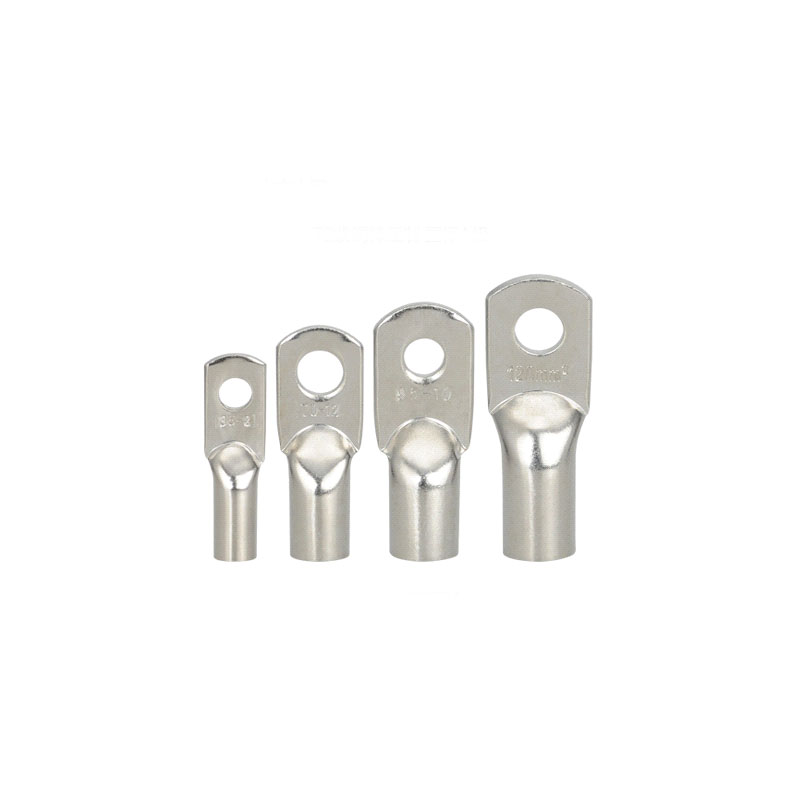

JG Tinned Copper Terminal Lugs

PRODUCT NAME:
JG Tinned Copper Terminal Lugs
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Technical Data
Material Red Copper Bar
Technology Tin plating
Wire Suitable for wires with nominal cross section 1.5-1000mm²
Operating Temperature -55℃~100℃
Scope of Application Home appliance / electrical / mechanical equipment factory / shipyard / distribution cabinet etc.

JG Tinned Copper Terminal Lugs
High purity T2 copper bar, thick enough
It is pressed by T2 copper bar. Its purity of copper is more than 99%. It has high conductivity, thermal conductivity, ductility and corrosion resistance. It is suitable for the connection of wires, cables and electrical equipment in power distribution devices.

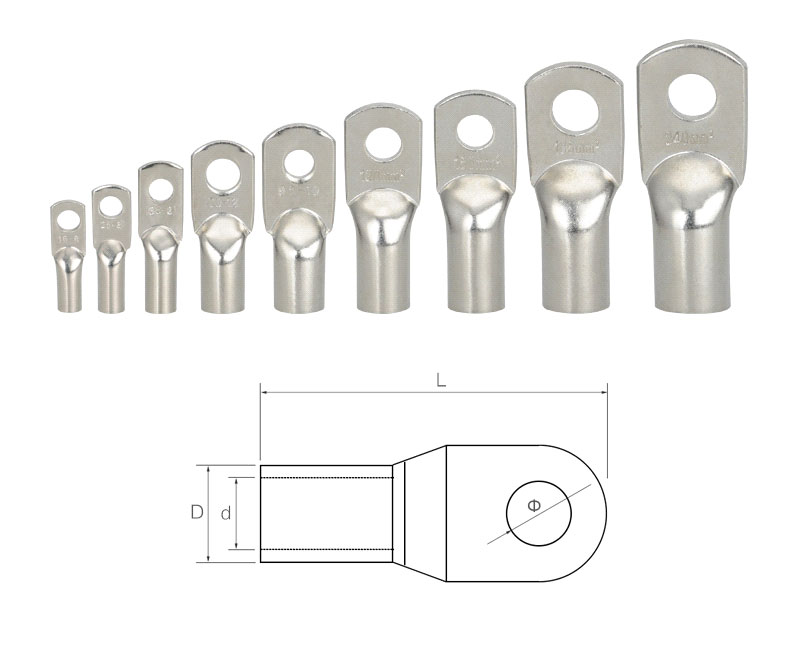

Technical Drawing

Structure Diagram (mm)

Model Φ D d L
JG-1.5 Φ4.2 Φ5.2 3.5 1.8 18
JG-2.5 Φ4.2 Φ5.2 Φ6.2 4 2.5 19
JG-4 Φ5.2 Φ6.2 4.8 3.1 21
JG-6 Φ5.2 Φ6.2 Φ8.2 5.5 3.5 24
JG-10 Φ6.2 Φ8.2 6.8 4.8 25.5
JG-16 Φ6.2 Φ8.2 Φ10.5 7.5 5.5 30.5
JG-25 Φ6.2 Φ8.2 Φ10.5 9 7 34
JG-35 Φ6.2 Φ8.2 Φ10.5 Φ12.5 10.5 8.2 38
JG-50 Φ8.2 Φ10.5 Φ12.5 12.5 9.8 45
JG-70 Φ8.2 Φ10.5 Φ12.5 14.5 11.5 50
JG-95 Φ10.5 Φ12.5 17.5 13.8 55.5
JG-120 Φ12.5 Φ16.5 19.5 15.5 63
JG-150 Φ12.5 Φ16.5 21 16.5 71
JG-185 Φ16.5 23.5 18.8 78
JG-240 Φ16.5 26.6 21 92
JG-300 Φ16.5 Φ20.5 30 24 102
JG-400 Φ16.5 Φ20.5 34 26.5 113
JG-500 Φ16.5 Φ20.5 38 30 123
JG-630 Φ20.5 45 35 135
JG-800 Φ22.5 50 39 170
JG-1000 Φ22.5 56 44 200
