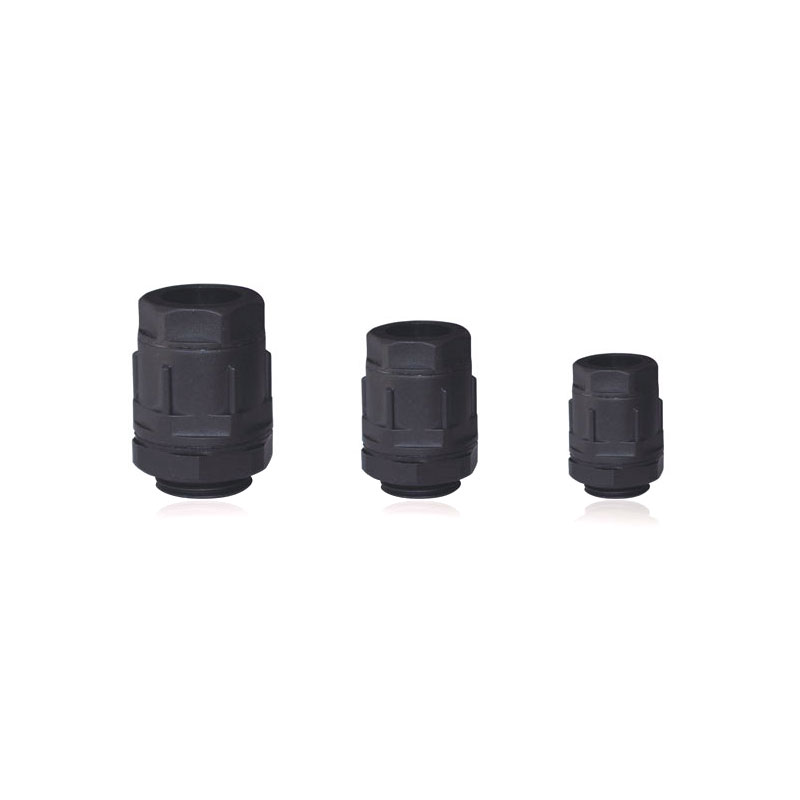

LM Straight Cable Glands

PRODUCT NAME:
LM Straight Cable Glands
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Material: Nylon Plastic (PA)
Seals: NBR
Protection Degree: IP68
Temperature Environment: Static -40℃ to 100℃, short time to 120℃; dynamic -20℃ to 80℃, short time to 120℃.

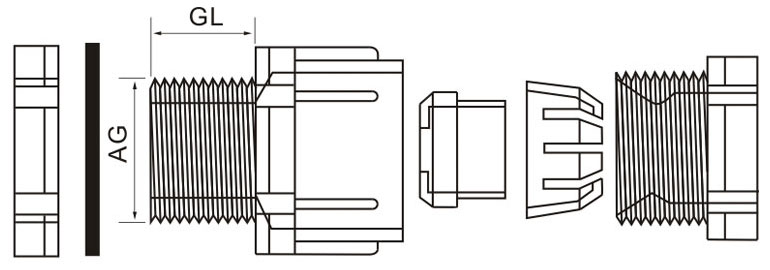

Model AG(M) Cable Range mm

GL mm

LM16×1.5 M16×1.5 5-10 12
LM20×1.5 M20×1.5 6-13 13
LM25×1.5 M25×1.5 10-18 13
LM32×1.5 M32×1.5 16-22 15
LM40×1.5 M40×1.5 20-27 21
LM50×1.5 M50×1.5 30-41 23
LM63×1.5 M63×1.5 40-53 25
