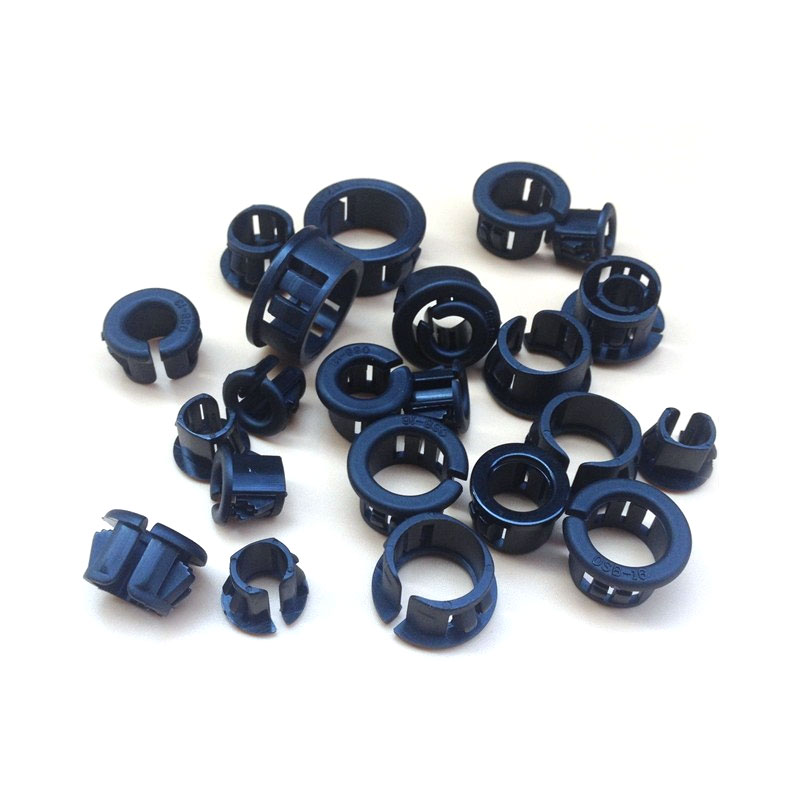

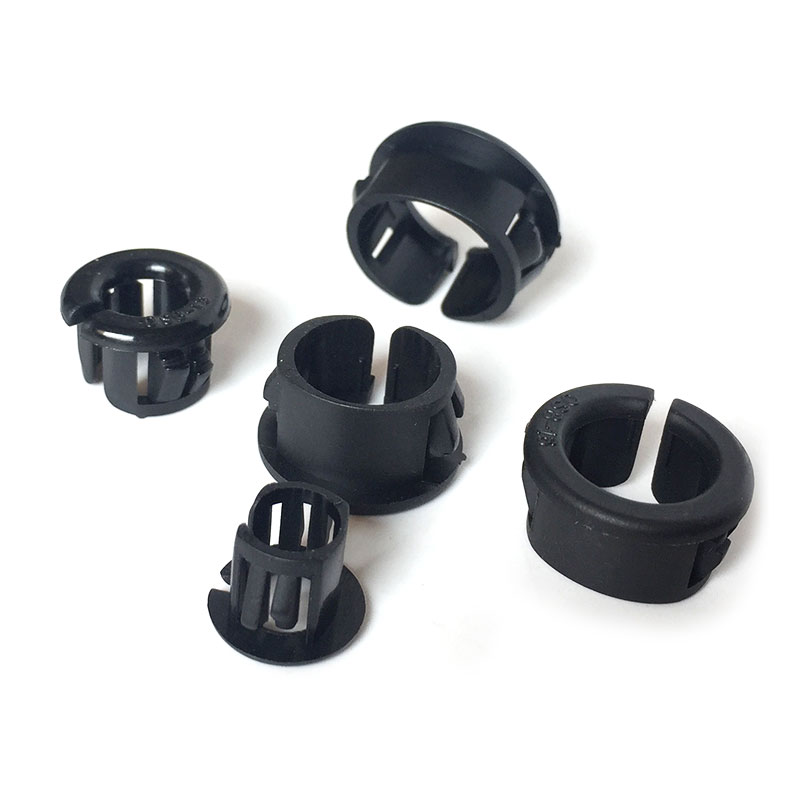

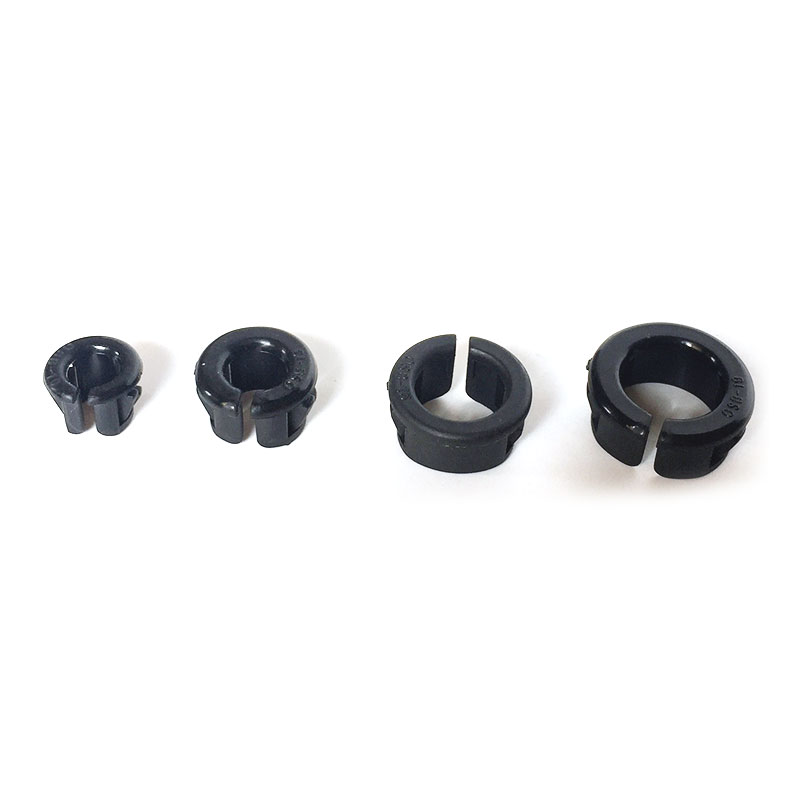

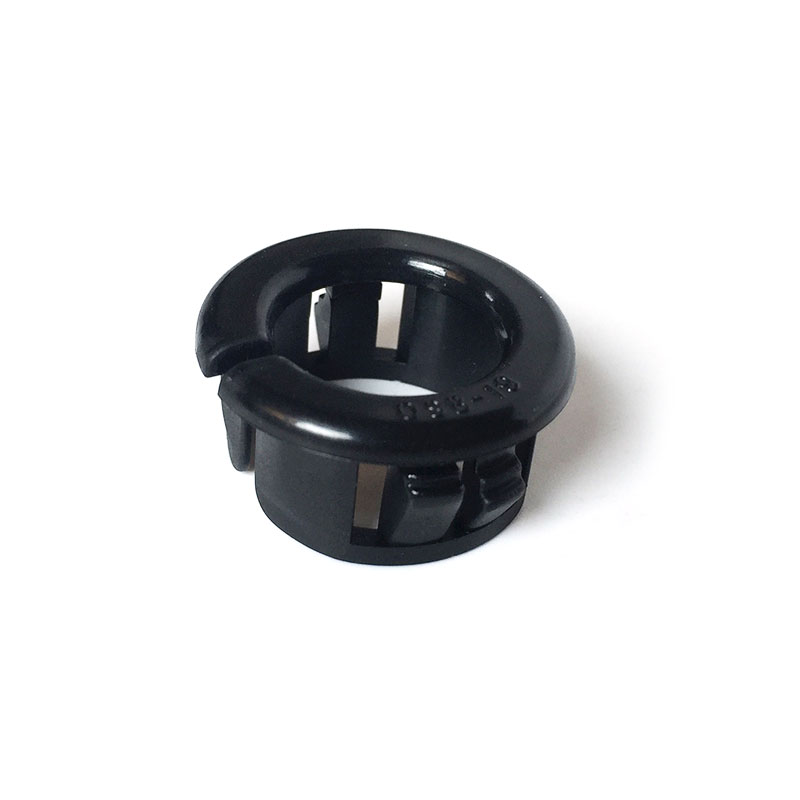

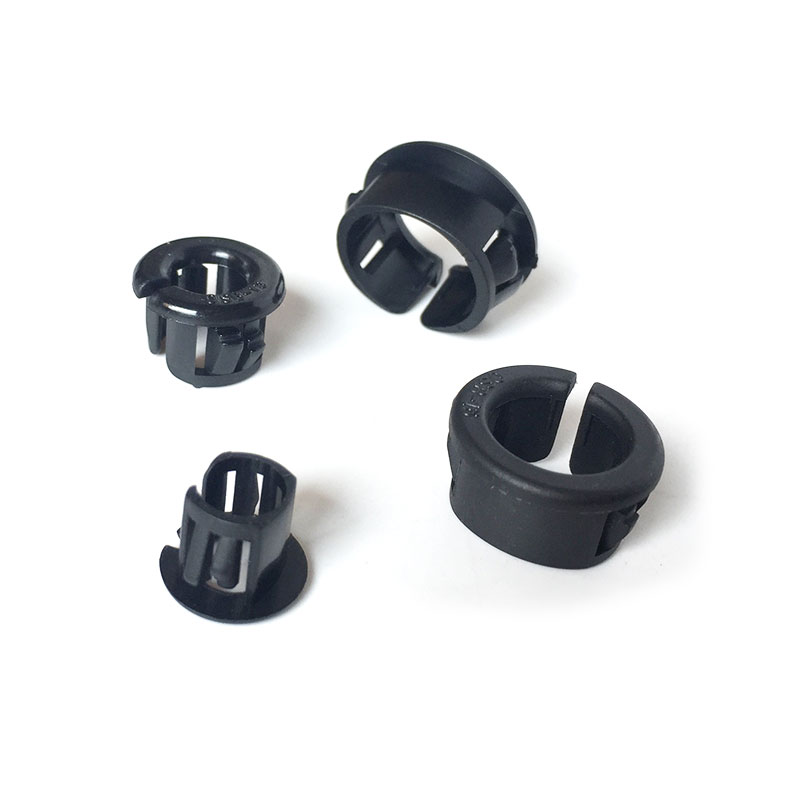

Snap Bushings Open Type

PRODUCT NAME:
Snap Bushings Open Type
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

● Material: UL approved Nylon 66. 94V-2
● Color: Black
● Protect power cord and smooth you chassis hole.
● Under 3.2mm chassis.
● Finger-tip pressure to install. No tool is needed.
● Can be applied after power cable was installed.

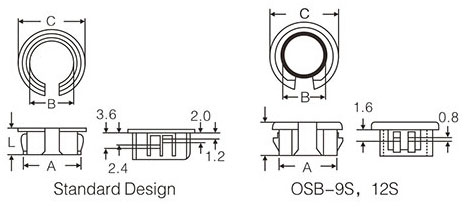

Item No Mounting Hole A B C L
OSB-10 9.5 6.0 11.8 10.3
OSB-13 12.7 7.5 15.1 10.3
OSB-16 15.9 11.2 18.5 10.3
OSB-19 19.1 12.5 21.0 10.3
OSB-22 22.2 17.0 24.6 10.3
OSB-29 25.4 20.0 28.0 10.3
