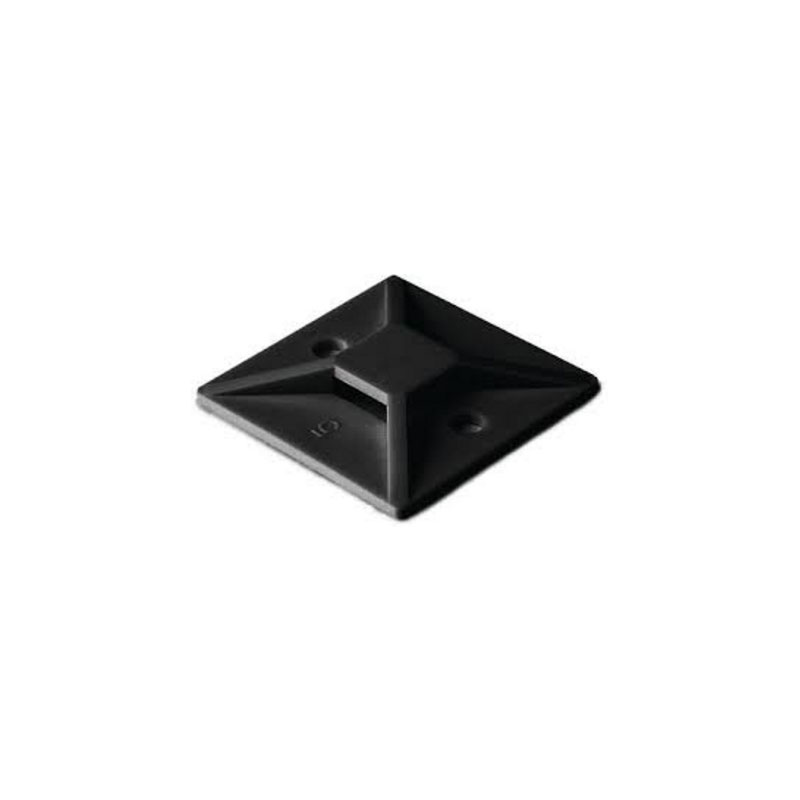

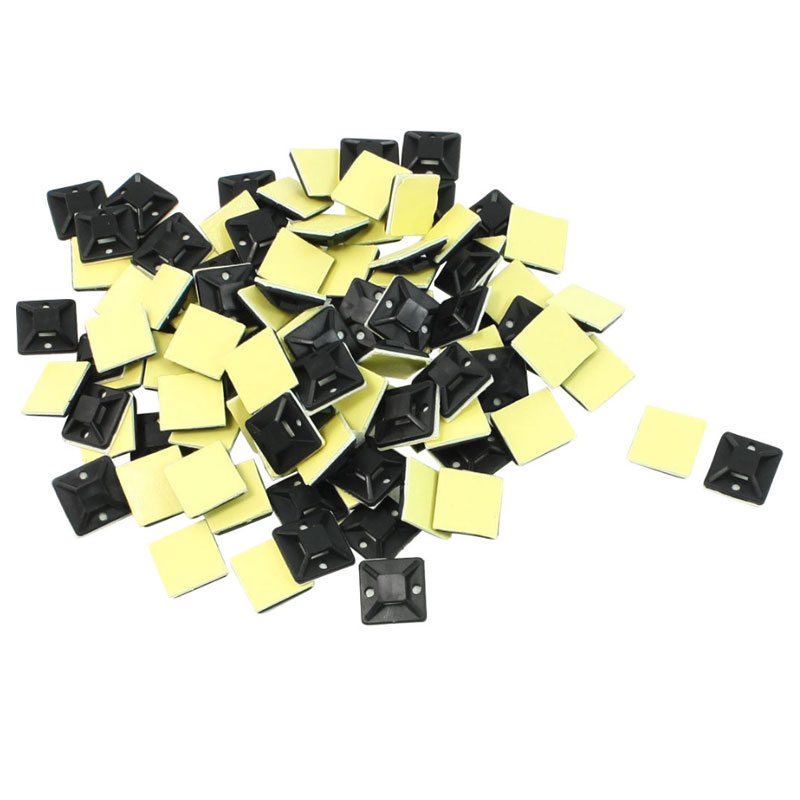

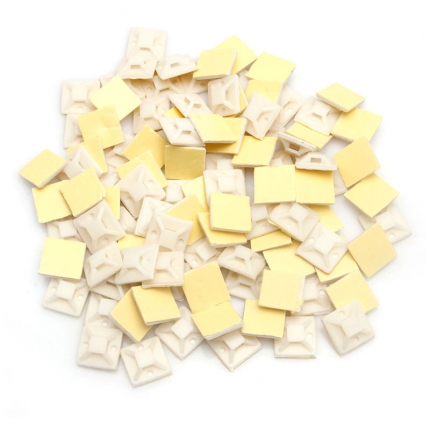

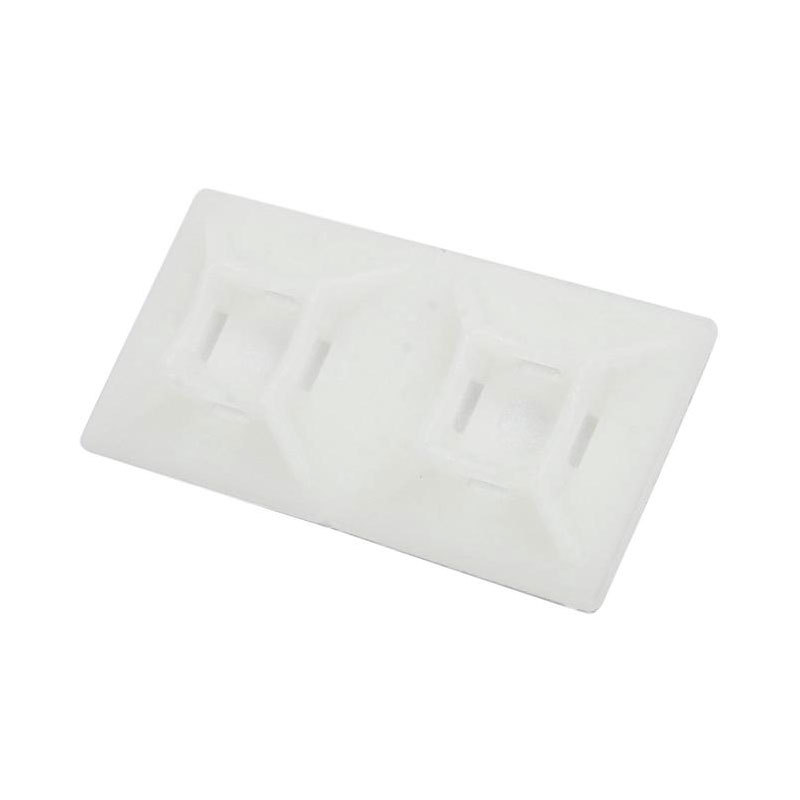

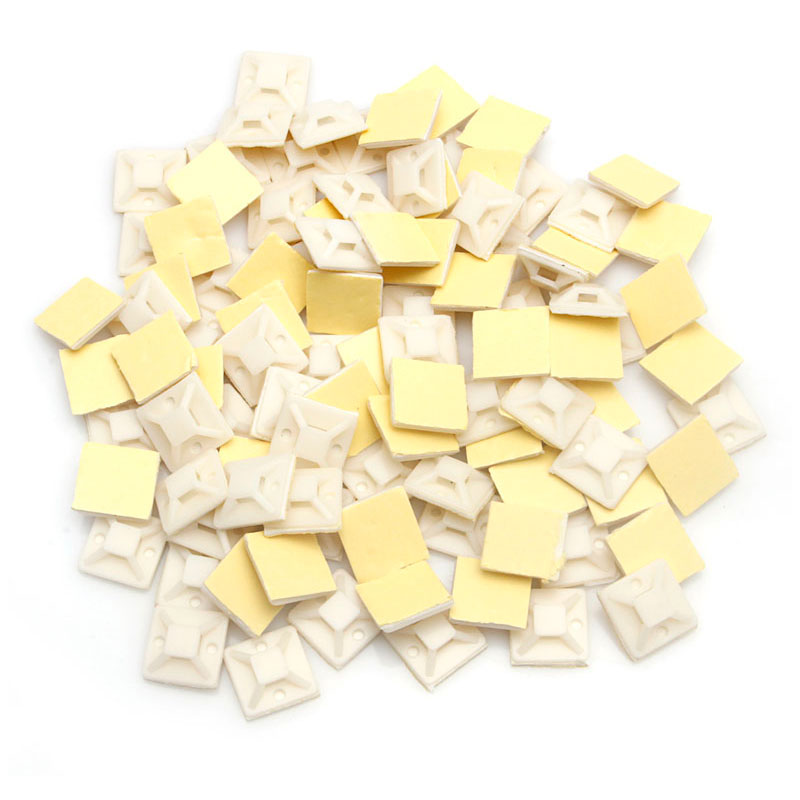

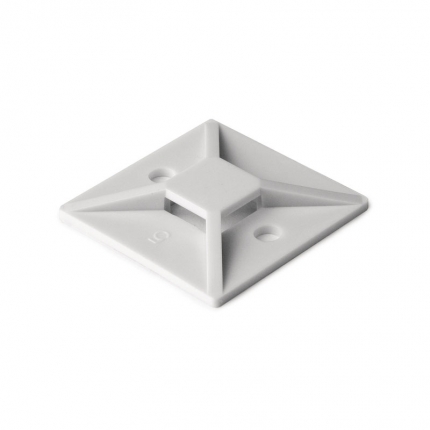

Self Adhesive Cable Tie Base

PRODUCT NAME:

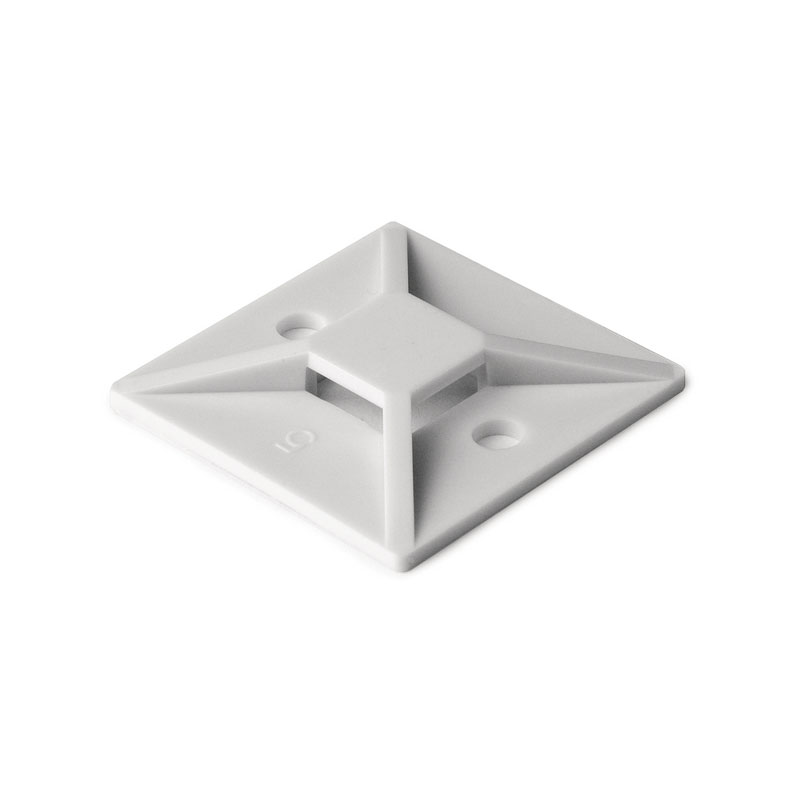

Self Adhesive Cable Tie Base
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

● Self Adhesive Cable Tie Base Material: ABS, UL approved Nylon 66, 94V-2
● Color: Natural, available in other colors.
Self Adhesive Cable Tie Base is designed to support light wire bundles when properly applied on any clean, smooth, grease-free surface. For heavy support, mounting hole is provided for screws.

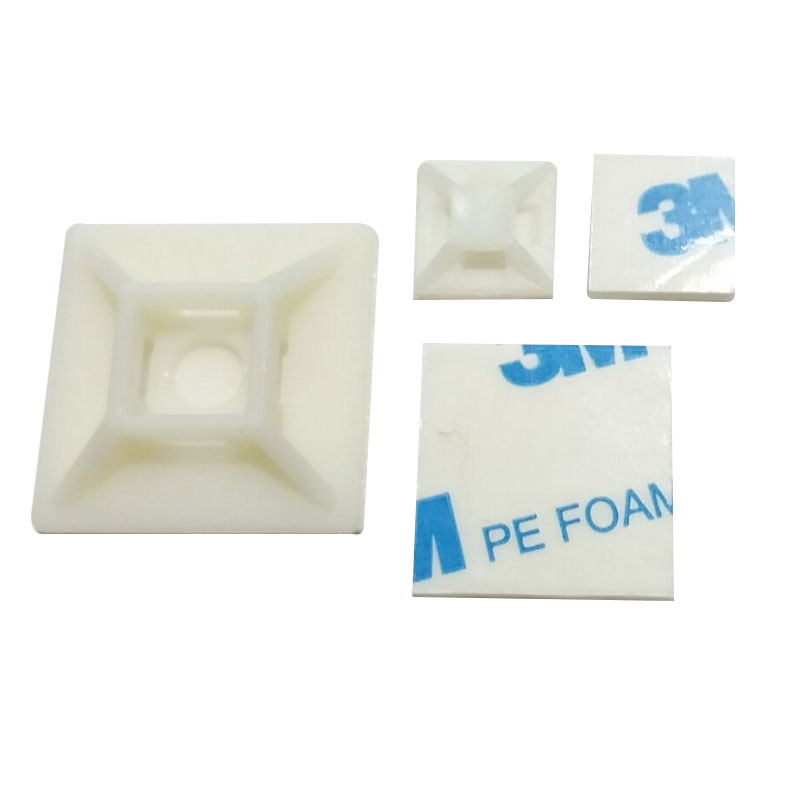

● To apply, simply peel off backing paper and apply mount to surface. After that, cable ties can be inserted to secure wire bundles.

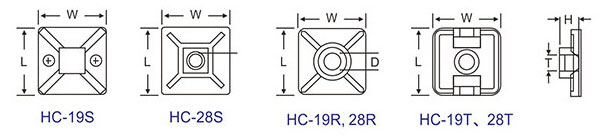

Item No. L×W H Mounting Hole (D) Cable Tie Hole (T)
HC-19S 19×19 4.8
4.5
HC-28S 28×28 6.6 6.2 5.4
HC-19R 19×19 5.9 4.5 4.2
HC-28R 28×28 6.6 5.0 6.0
HC-19T 19×19 5.2 4.1 4.1
HC-28T 28×28 8.6 4.1 5.8
