Quick Splice Wire Terminal

PRODUCT NAME:

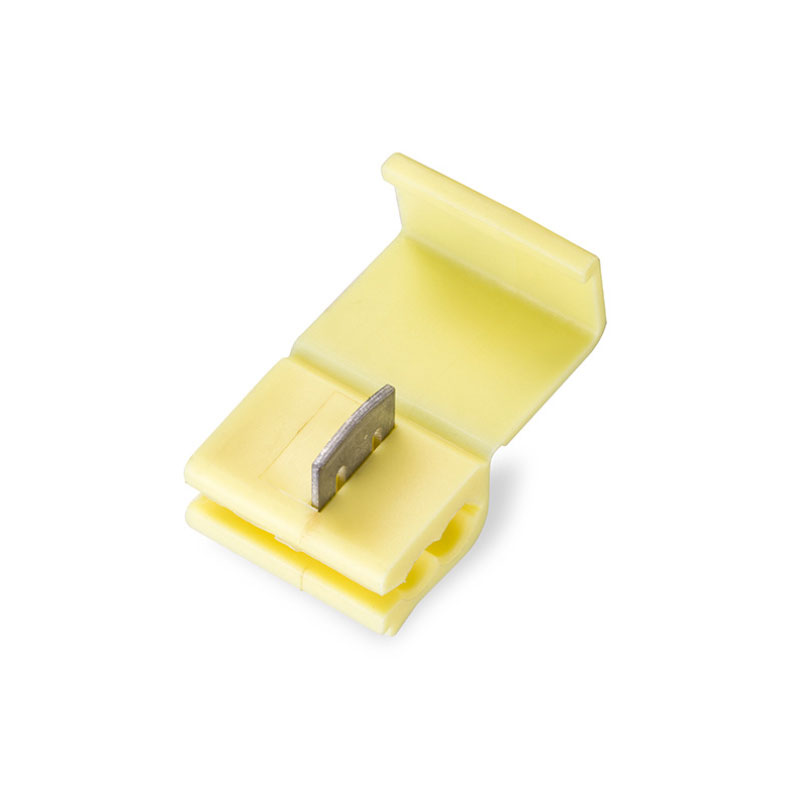

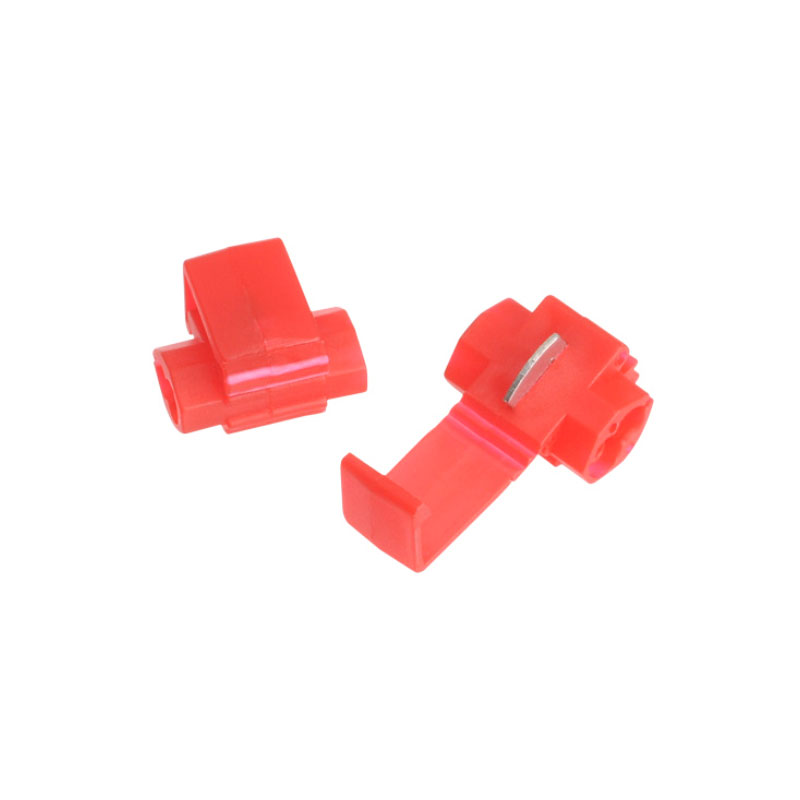

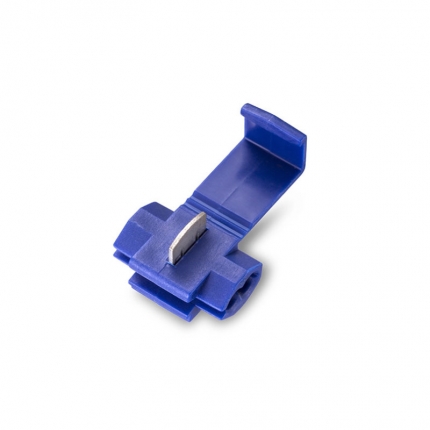

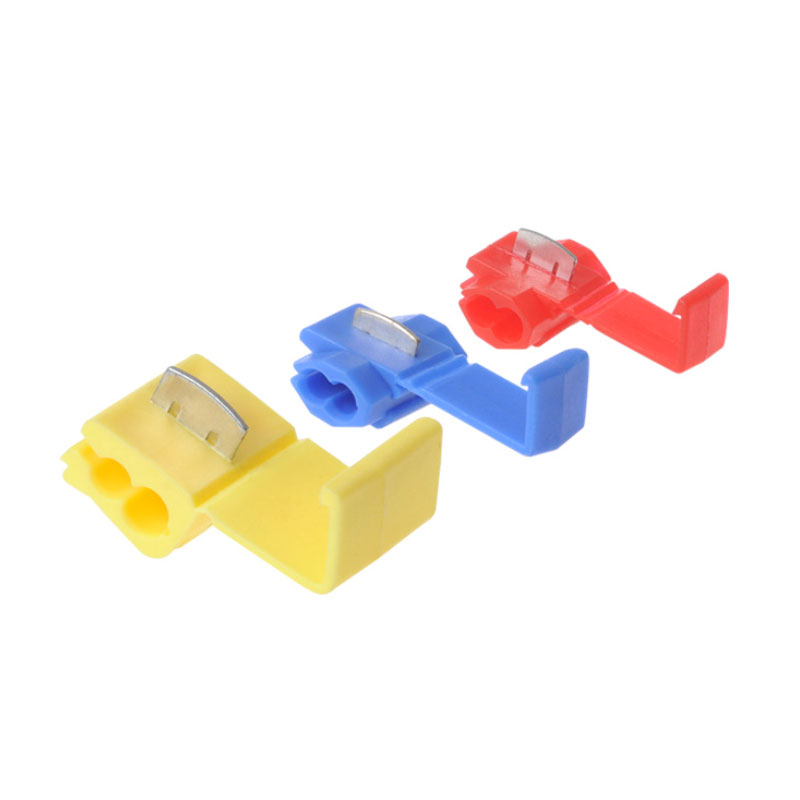

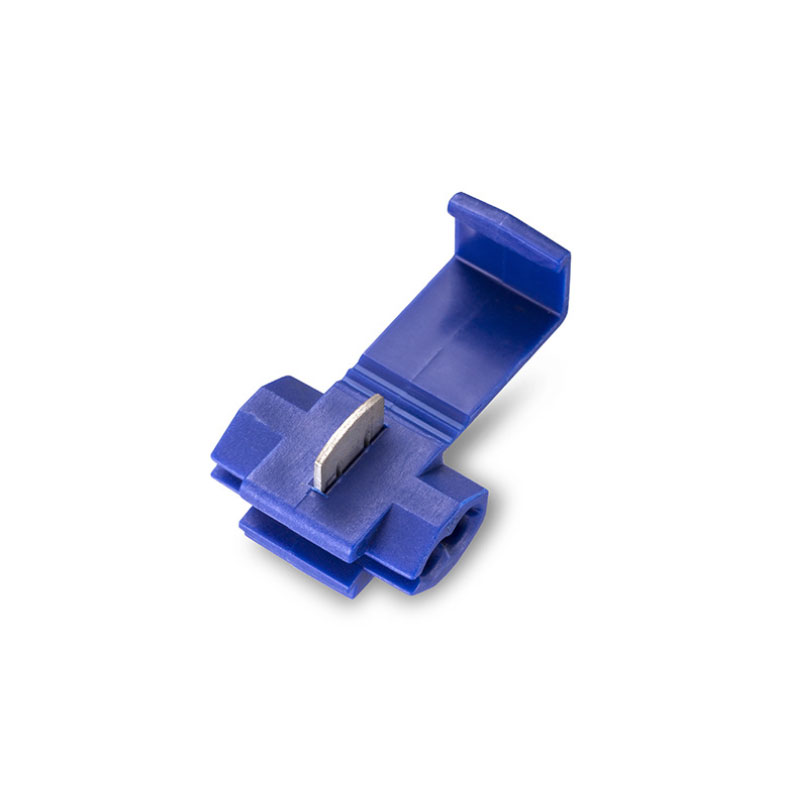

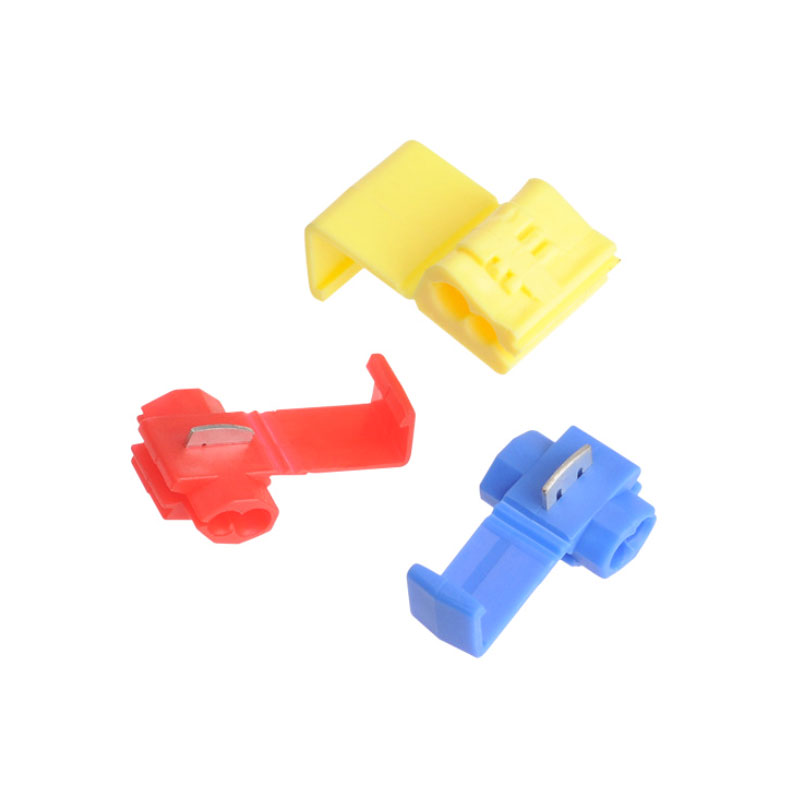

Quick Splice Wire Terminal
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Technical Data
Certification CE
Maximum Withstand Voltage 105℃ 600V
End Material Red Copper or Brass
Housing Material PVC Plastic

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

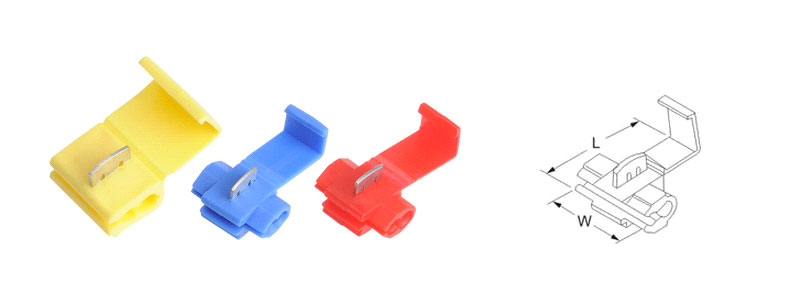

Technical Drawing

Structure Diagram (mm)

Item No Wire Section Packaging
pcs / pack
Dimension(mm) Color
W L
801P3 0.5-1.0mm² 1000 20.0 27.0 Red
802P3 0.75-2.5mm² 1000 20.0 27.0 Blue
803P3 4-6mm² 1000 20.5 34.5 Yellow
