PVC Wiring Duct

PRODUCT NAME:

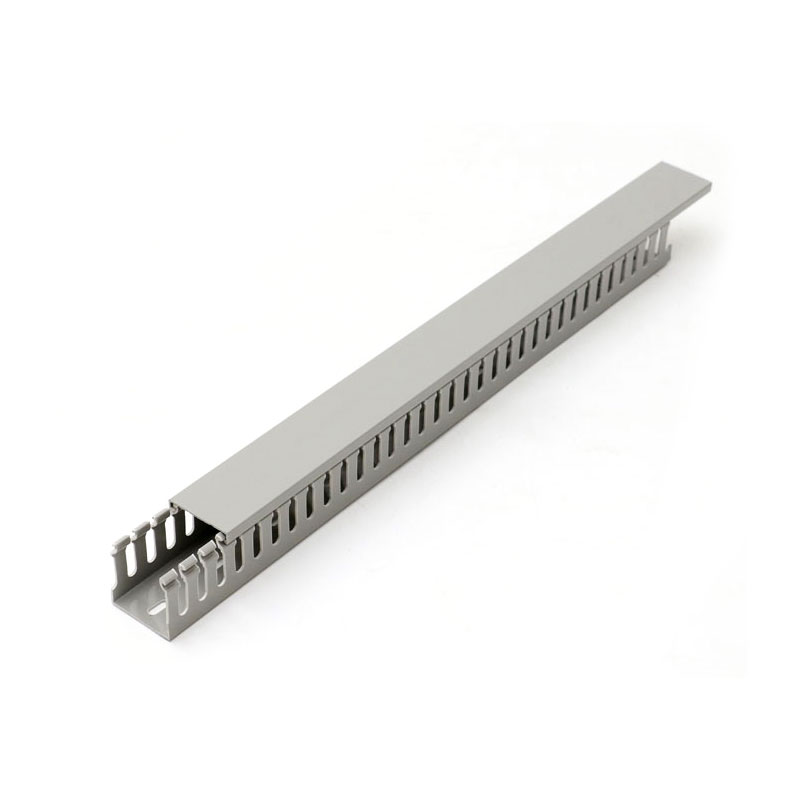

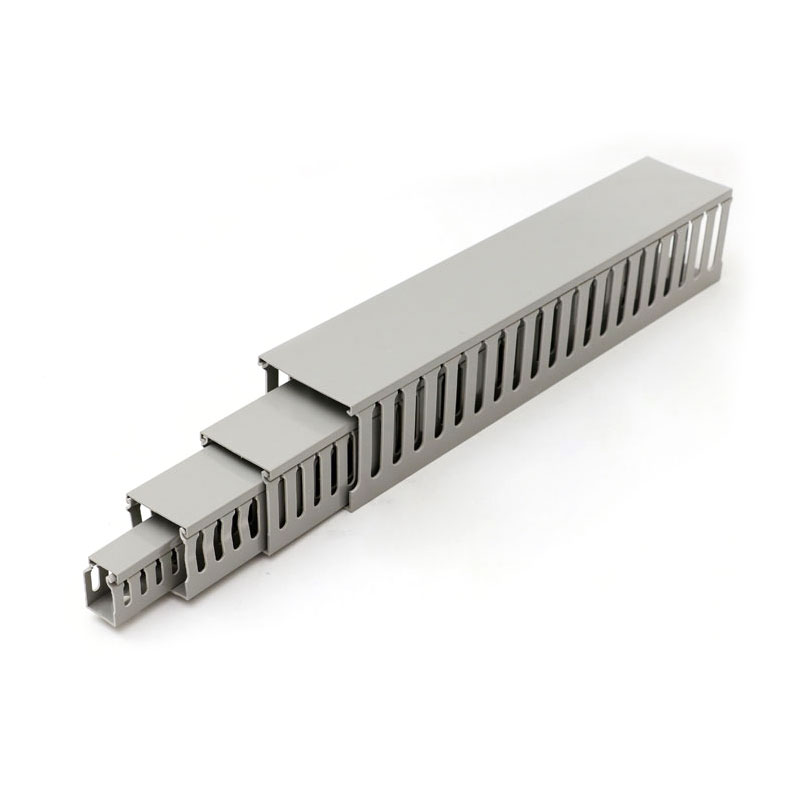

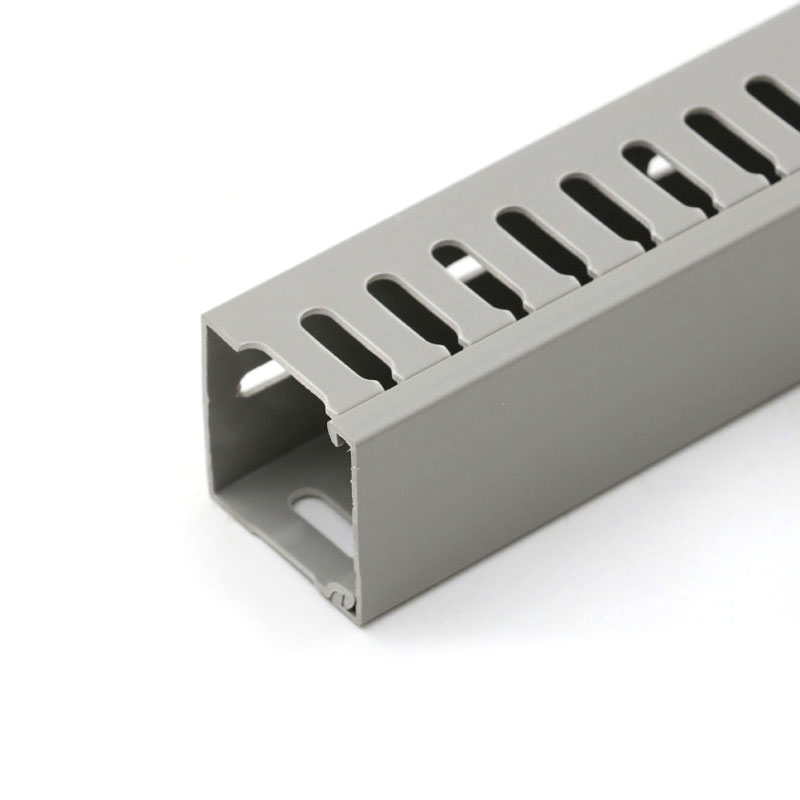

PVC Wiring Duct
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

●Material: made from PVC(gery), good insulation and heat-resisting up to 85℃

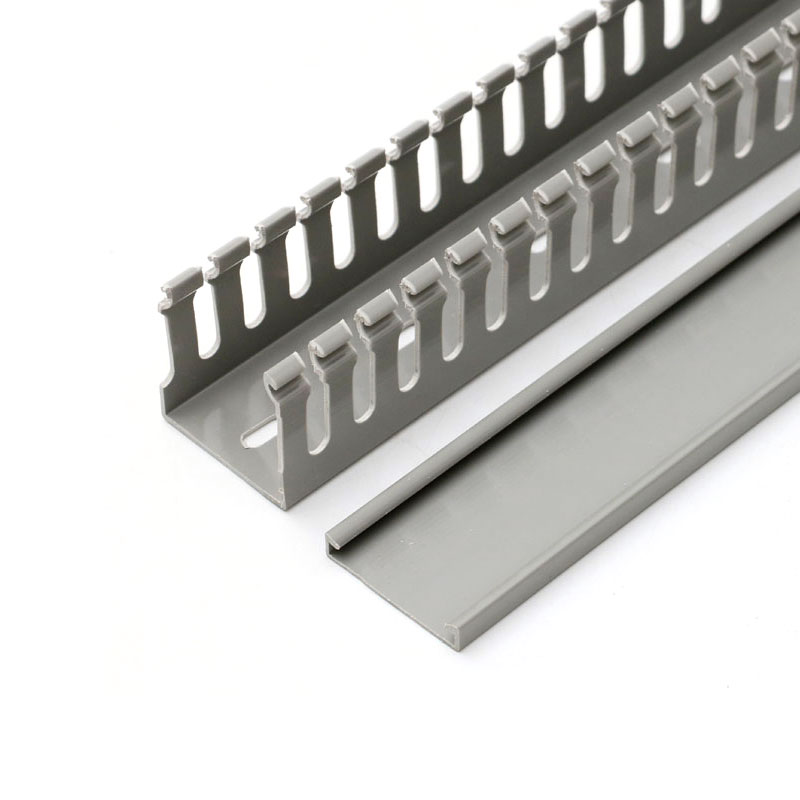

●Struction: made up of duct bottom and lid, with two out-holes design at the bottom.

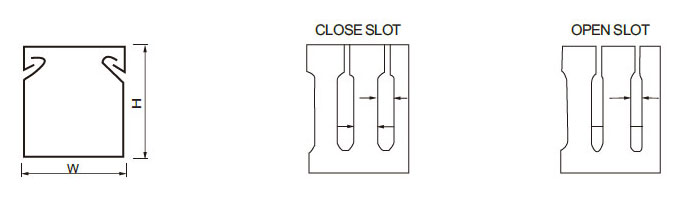

Item No. H×W Contained wire(1.5²) Length
PXC-2015 20×15 5-10PCS 2m
PXC-2020 20×20 10-15PCS
PXC-2025 20×25 10-20PCS
PXC-2525 25×25 15-25PCS
PXC-3015 30×15 20-30PCS
PXC-3020 30×20 30-40PCS
PXC-3025 30×25 40-50PCS
PXC-3030 30×30 45-55PCS
PXC-3035 30×35 50-70PCS
PXC-3040 30×40 60-80PCS
PXC-3050 30×50 35-50PCS
PXC-3525 35×25 45-60PCS
PXC-3530 35×30 50-70PCS
PXC-3535 35×35 60-80PCS
PXC-3540 35×40 45-60PCS
PXC-4025 40×25 50-70PCS
PXC-4030 40×30 5-10PCS
PXC-4035 40×35 60-80PCS
PXC-4040 40×40 70-90PCS
PXC-4545 45×45 80-110PCS
PXC-5020 50×20 45-60PCS
PXC-5025 50×25 50-70PCS
PXC-5030 50×30 60-80PCS
PXC-5035 50×35 70-90PCS
PXC-5040 50×40 90-120PCS
PXC-5045 50×45 110-130PCS
PXC-5050 50×50 120-150PCS
PXC-5055 50×55 130-160PCS
PXC-5060 50×60 150-180PCS
PXC-5080 50×80 180-230PCS
PXC-50100 50×100 220-250PCS
PXC-6025 60×25 80-100PCS
PXC-6035 60×35 90-120PCS
PXC-6040 60×40 100-130PCS
PXC-6045 60×45 110-140PCS
PXC-6050 60×50 120-150PCS
PXC-6060 60×60 150-180PCS
PXC-6080 60×80 180-210PCS
PXC-60100 60×100 230-260PCS
PXC-8025 80×25 130-160PCS
PXC-8035 80×35 140-170PCS
PXC-8040 80×40 150-180PCS
PXC-8045 80×45 170-200PCS
PXC-8050 80×50 180-220PCS
PXC-8060 80×60 220-250PCS
PXC-8080 80×80 240-290PCS
PXC-80100 80×100 280-320PCS
PXC-10080 100×80 280-320PCS
PXC-100100 100×100 300-400PCS
