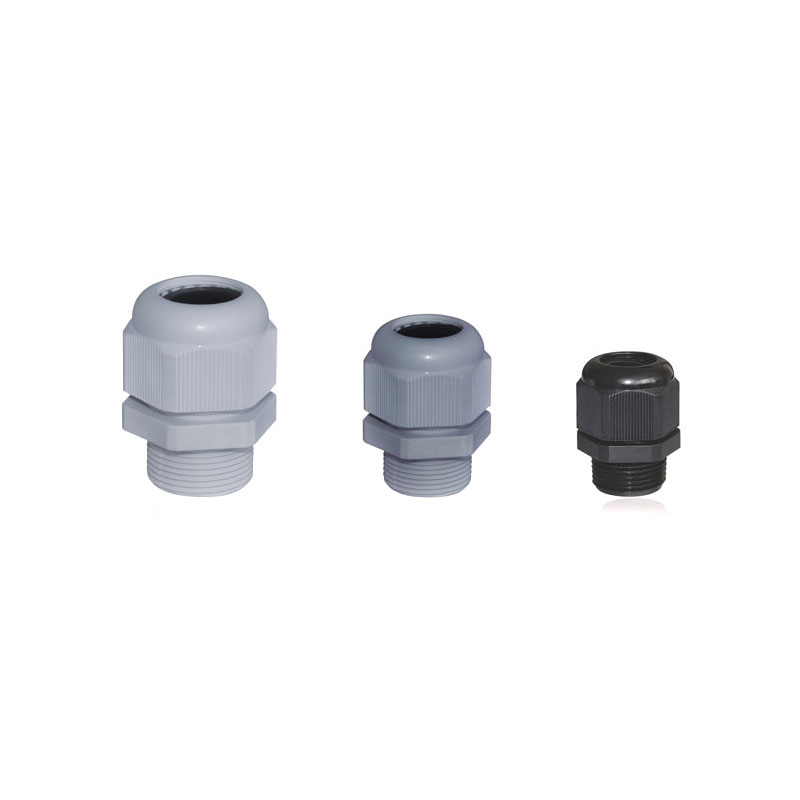

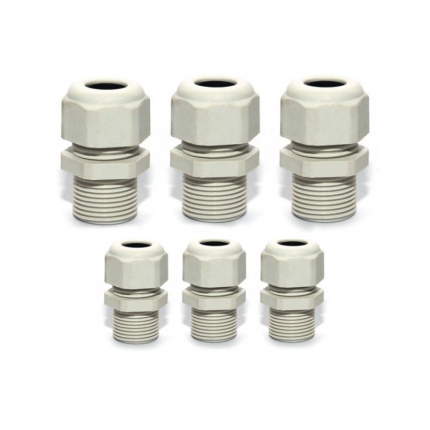

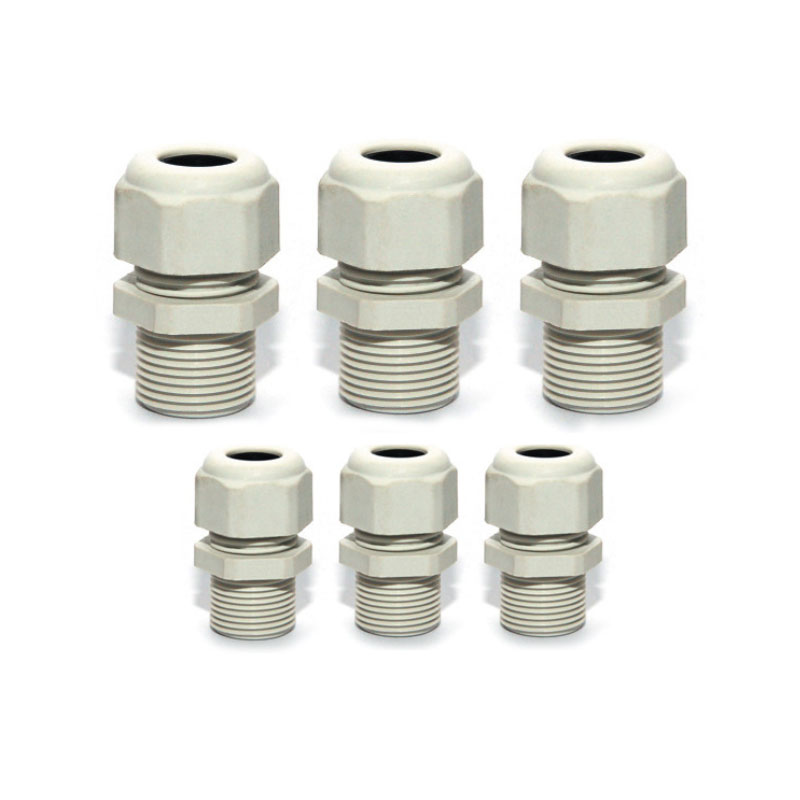

PG-K 13.5/19/25/63 Cable Gland

PRODUCT NAME:
PG-K 13.5/19/25/63 Cable Gland
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Material: Nylon Plastic (PA)
Seals: NBR
Protection Degree: IP68
Temperature Environment: Static -40℃ to 100℃, short time to 120℃; dynamic -20℃ to 80℃, short time to 120℃.

Model AG (PG/M) Cable Range mm

GL mm

H mm Wrench Diameter mm
PG-K7 PG7 3-6.5 11 21 15
PG-K9 PG9 4-8 15 22 19
PG-K11 PG11 5-10 15 25 22
PG-K13.5 PG13.5 6-12 15 27 24
PG-K16 PG16 10-14 15 28 27
PG-K21 PG21 13-18 15 31 33
PG-K29 PG29 18-25 20 39 42
PG-K36 PG36 22-32 20 48 53
PG-K42 PG42 32-38 20 48 60
PG-K48 PG48 37-44 20 49 65
PG-K63 PG63 40-50 29 95 75






M-K16 M16 4-8 15 22 19
M-K20 M20 6-12 14 25 22
M-K22 M22 10-14 15 28 27
M-K40 M40 22-32 18 45 46
M-K50 M50 32-44 20 47 56
M-K63 M63 37-44 20 47 68
