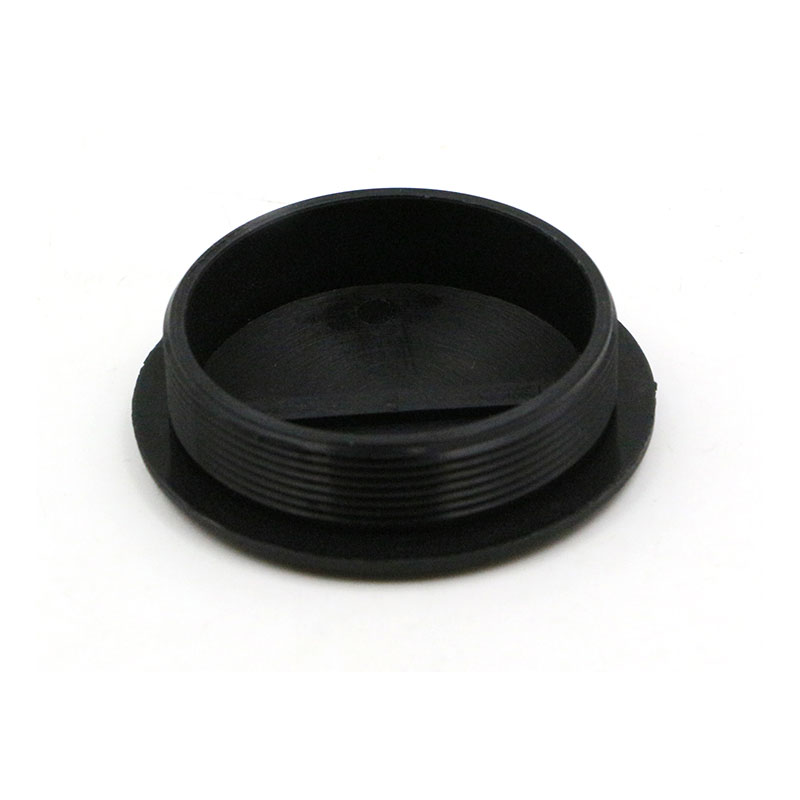

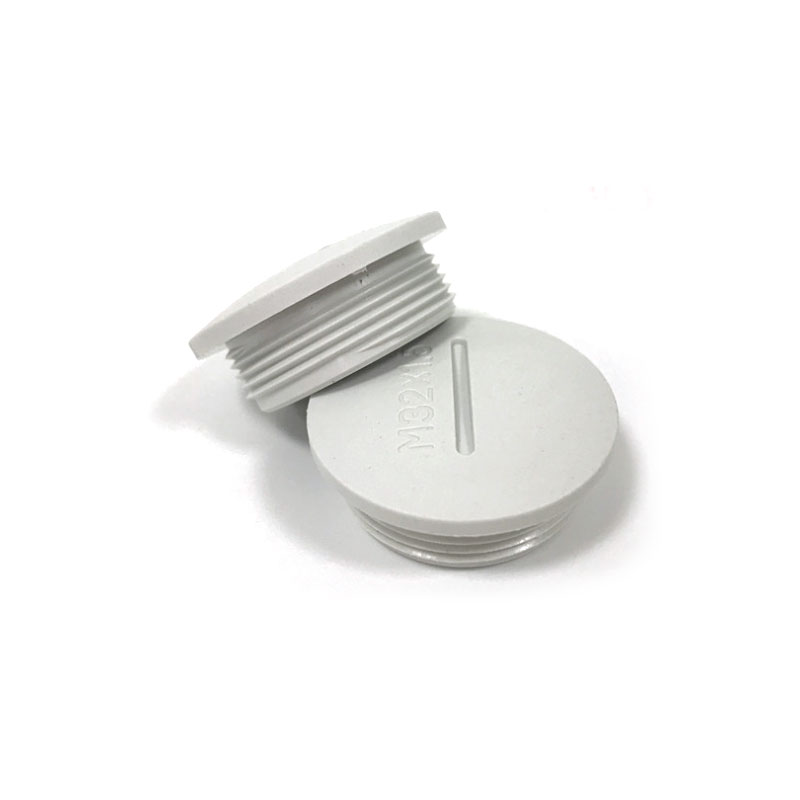

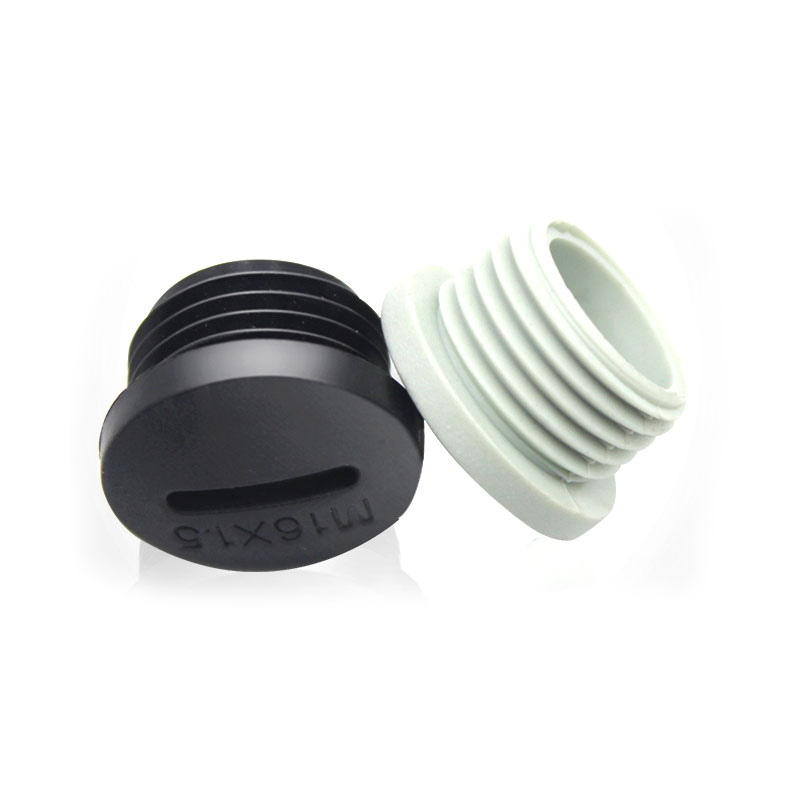

Nylon Screw Plug

PRODUCT NAME:
Nylon Screw Plug
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Material: Nylon PA66
Protection degree: IP68
Working temperature: -40℃ to 100℃
Application: Dust-proof for spare holes
Colors: Black and gray

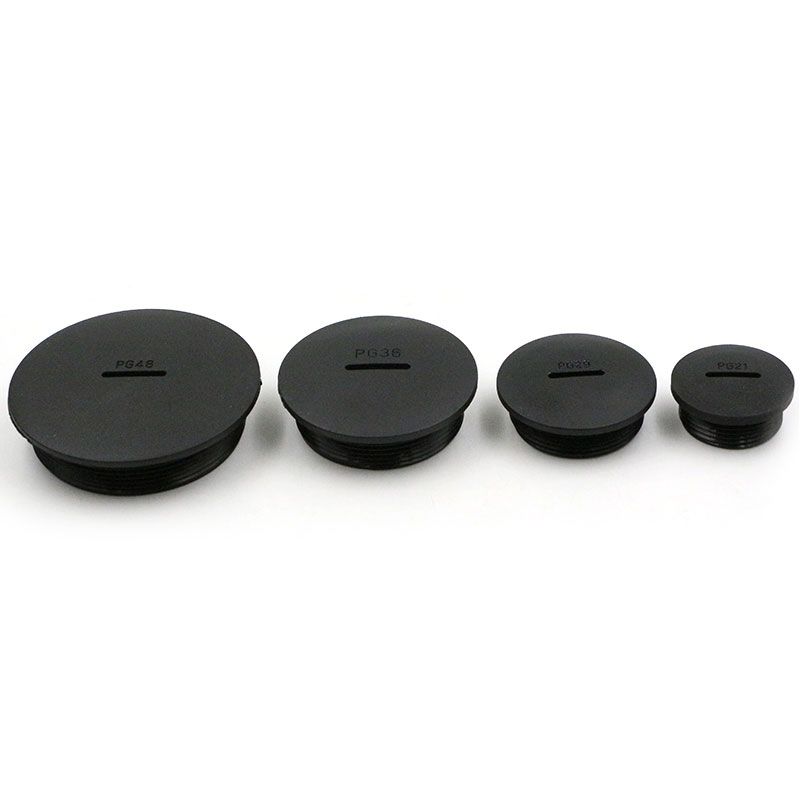

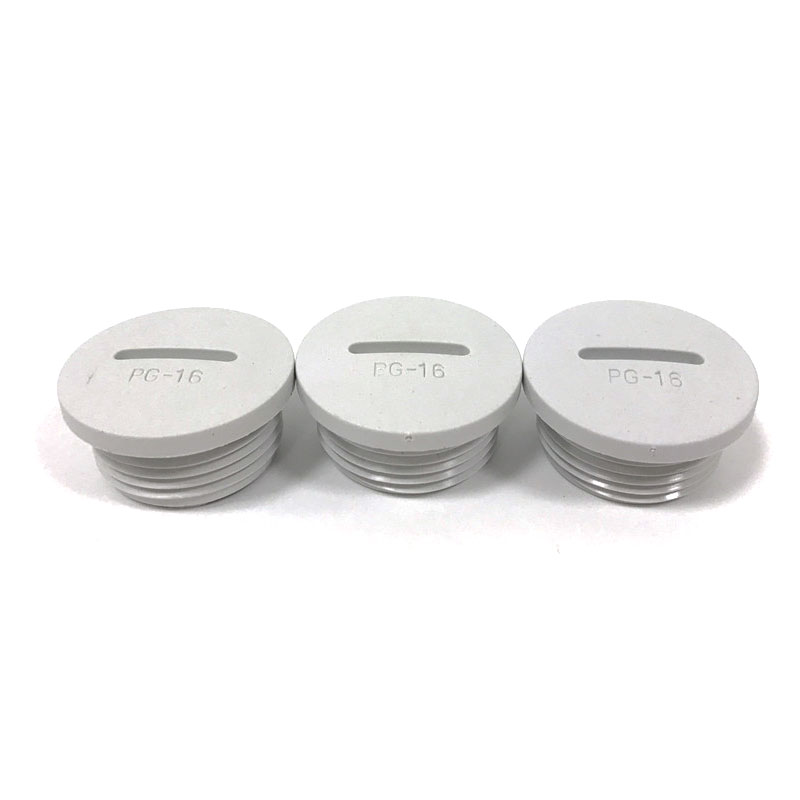

PG Type Product Model Thread Diameter
(C1)
Thread Length
(C2)
Main Dimensions
(H)
Cover Dimensions
(D)
PG7 12.5 8.5 12.5 15
PG9 15.2 8.5 13 19
PG11 18.6 9 13 22
PG13.5 20.4 9 13 25
PG16 22.5 10.5 15 27
PG21 28.3 10.5 15.5 33
PG29 37 11.5 16 44
PG36 47 13.5 18 55
PG42 45 13.5 18.5 62
PG48 59.3 15.5 19.5 68

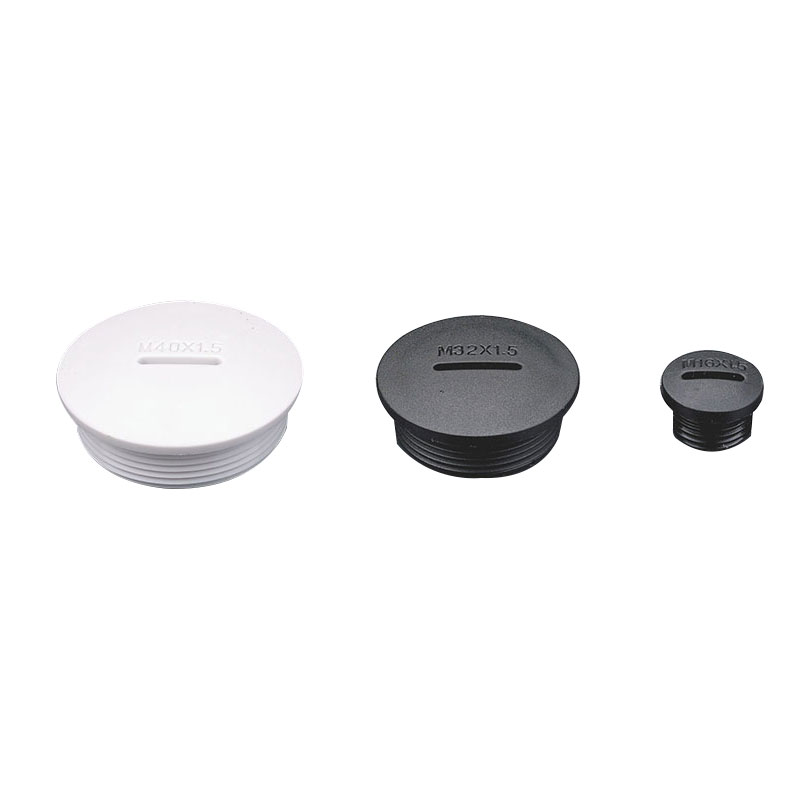

M Type Product Model Thread Diameter
(C1)
Thread Length
(C2)
Main Dimensions
(H)
Cover Dimensions
(D)
M12×1.5 12 8.5 12.5 15
M16×1.5 16 8.5 13 19
M18×1.5 18 9 13 22
M20×1.5 20 9 13 25
M22×1.5 22 10.5 15 27
M25×1.5 25 10.5 15.5 30
M27×1.5 27 10.5 15.5 33
M32×1.5 32 10.5 16 38
M40×1.5 40 11.5 16 46
M50×1.5 50 13.5 18 56
M63×1.5 63 14 19 68
