Nylon Frame Fixing

PRODUCT NAME:
Nylon Frame Fixing
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

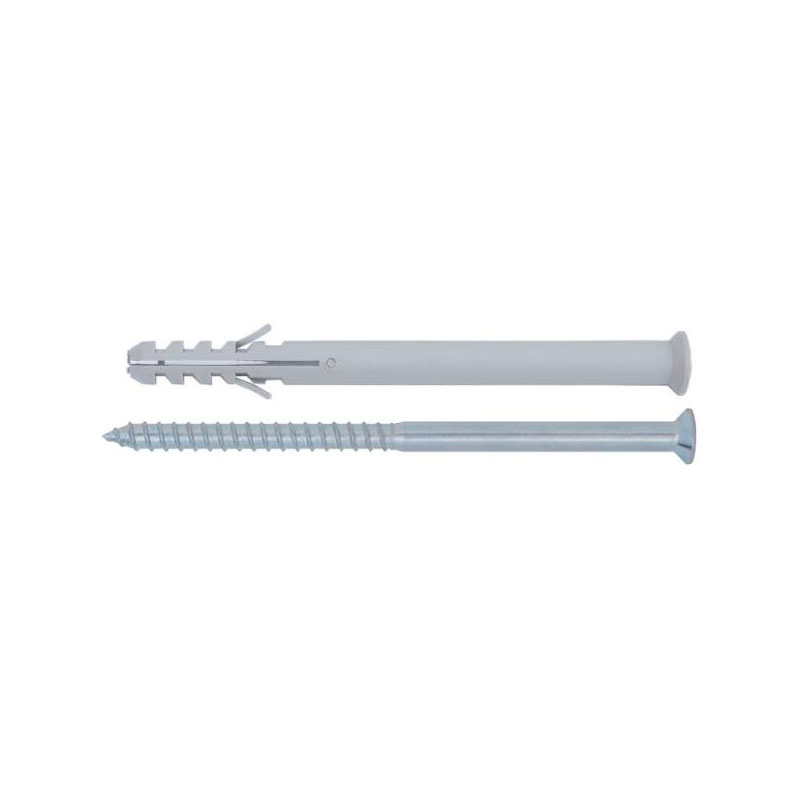

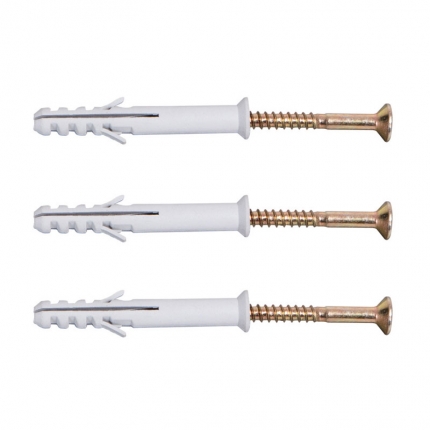

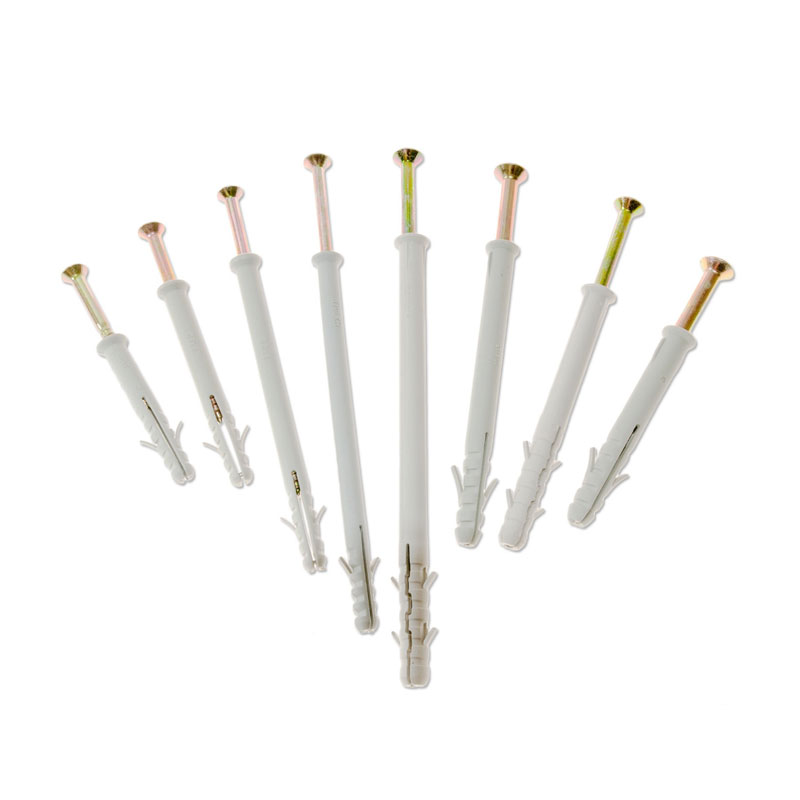

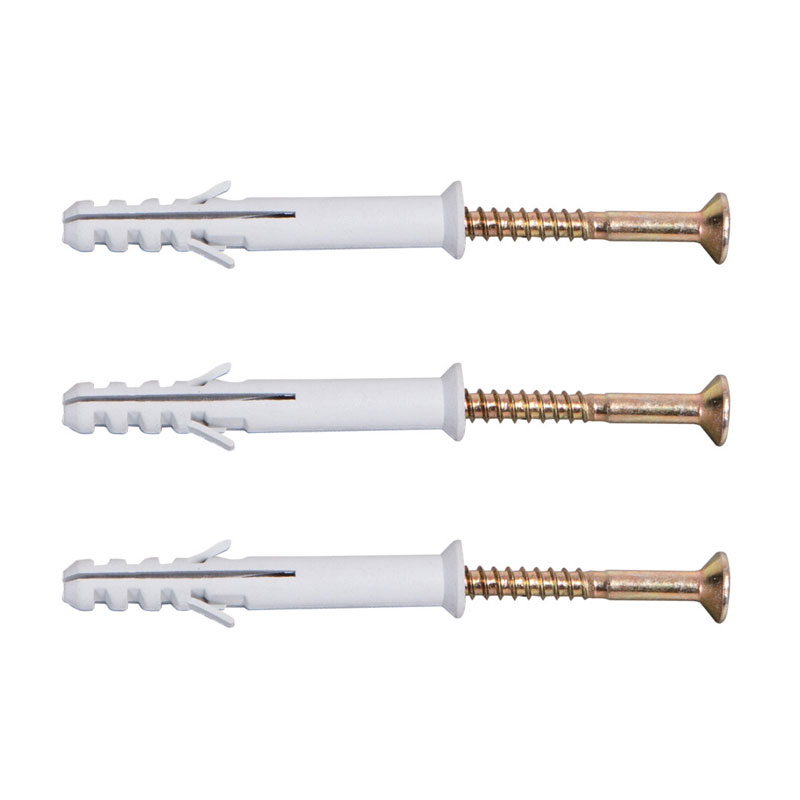

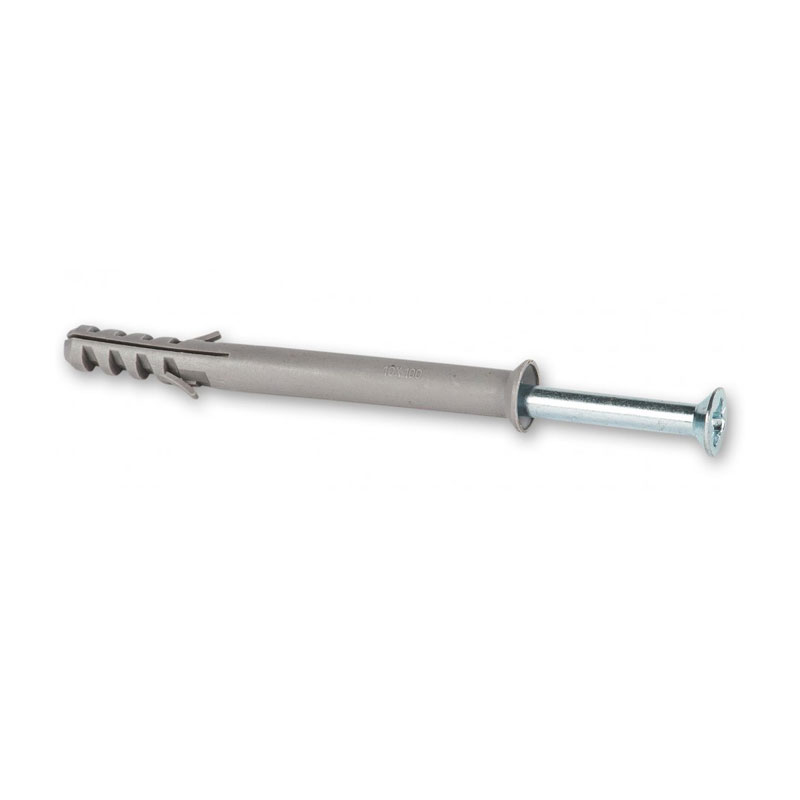

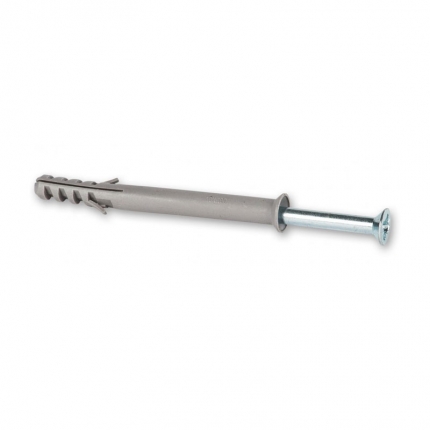

● Description: the article con states of a nylon plug with countersunk head and a positive screw.
● Yellow Zinc Plated with a drilled head. Suitable for fixings on concrete, blocks and other high-density material.

Item No. Anchor Size Nail Size Drill Dia.
(mm)
Practapplic Max
(mm)
FF05302 5×30 3.5×35 5 5
FF06402 6×40 4.0×45 6 10
FF06602 6×60 4.0×65 6 30
FF06802 6×80 4.0×85 6 5
FF08602 8×60 5.0×65 8 20
FF08802 8×80 5.0×85 8 40
FF081002 8×100 5.0×105 8 60
FF081202 8×120 5.0×125 8 80
FF10802 10×80 7.0×85 10 40
FF101002 10×100 7.0×105 10 50
FF101202 10×120 7.0×125 10 80
FF101402 10×140 7.0×145 10 90
FF101602 10×160 7.0×165 10 100
