BV Insulated Butt Connectors

PRODUCT NAME:

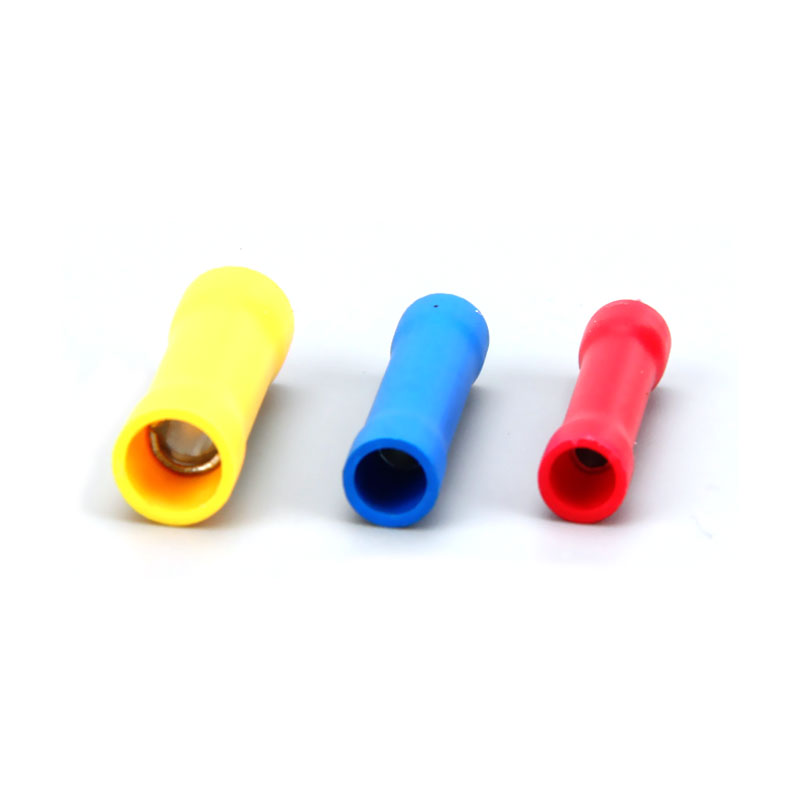

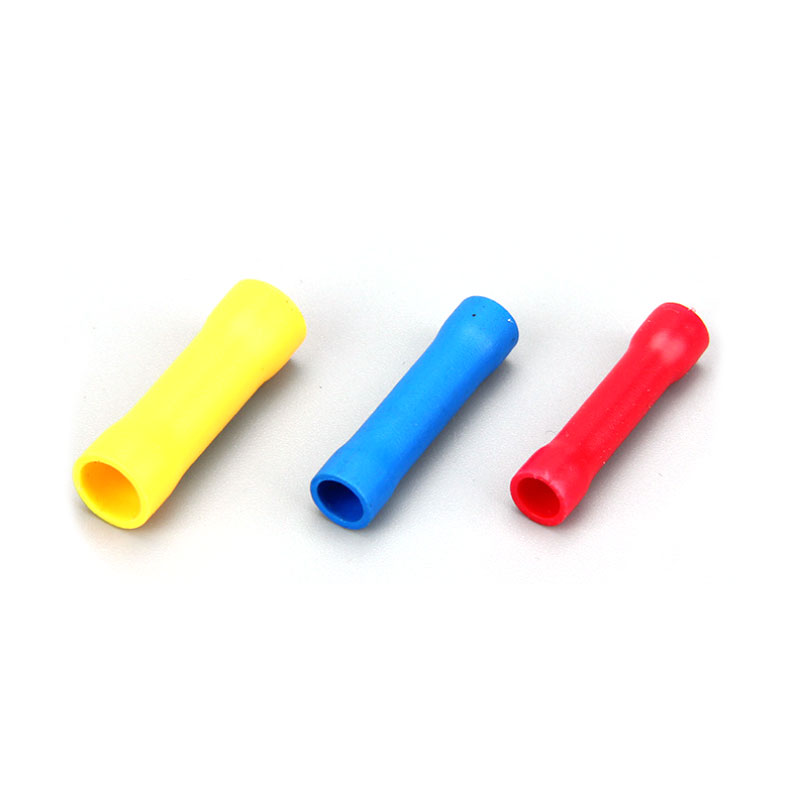

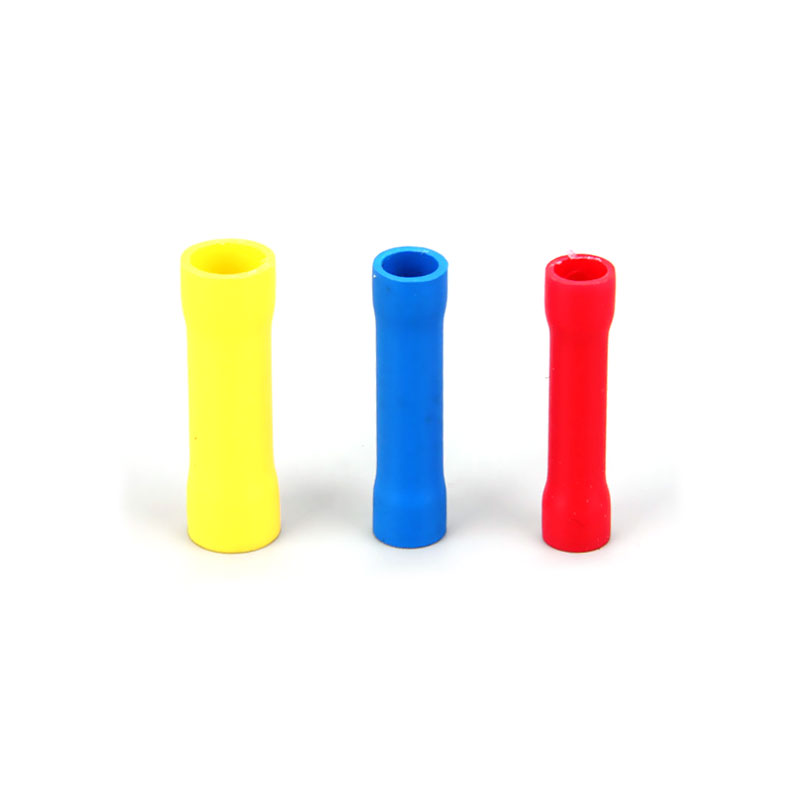

BV Insulated Butt Connectors
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

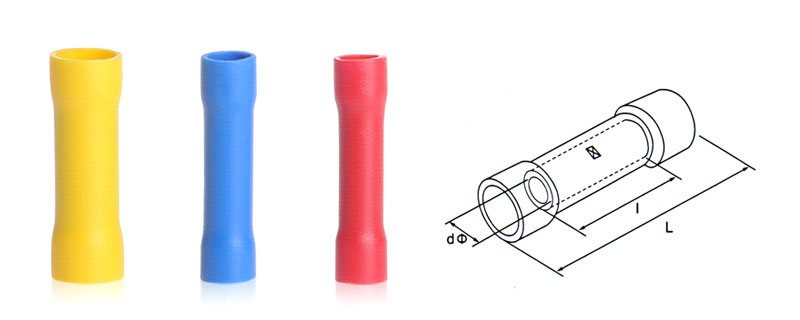

Technical Drawing

Structure Diagram (mm)

Item No Max Current Packaging
pcs / pack
Wire Range Dimension(mm) Color
A.W.G mm² I Φd L
BV1.25 19A 1000 22-16 0.5-1.5 15.0 1.7 26.0 Red
BV2 27A 1000 16-14 1.5-2.5 15.0 2.3 26.0 Blue
BV5.5 48A 500 12-10 4-6 15.0 3.4 26.0 Yellow
BV8 62A 200 #8 6-10 21.0 4.5 32.0 Red
BV14 88A 100 #6 10-16 26.0 5.8 42.0 Blue
BV22 115A 100 #4 16-25 29.0 7.7 50.0 Yellow
BV38 160A 100 #2 35-50 32.0 9.4 55.0 Red
