Industrial Socket Coupler

PRODUCT NAME:

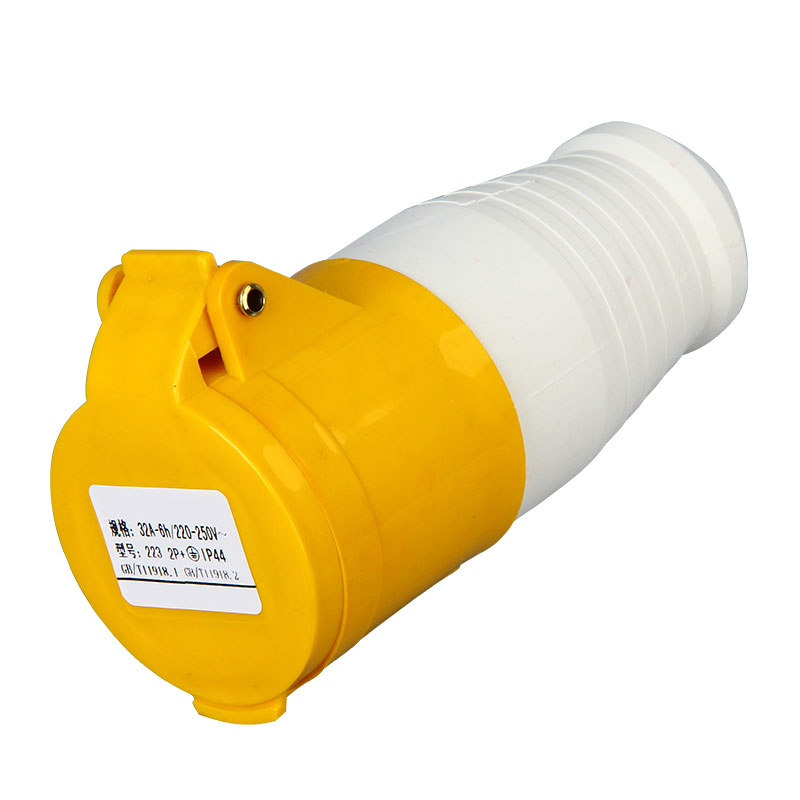

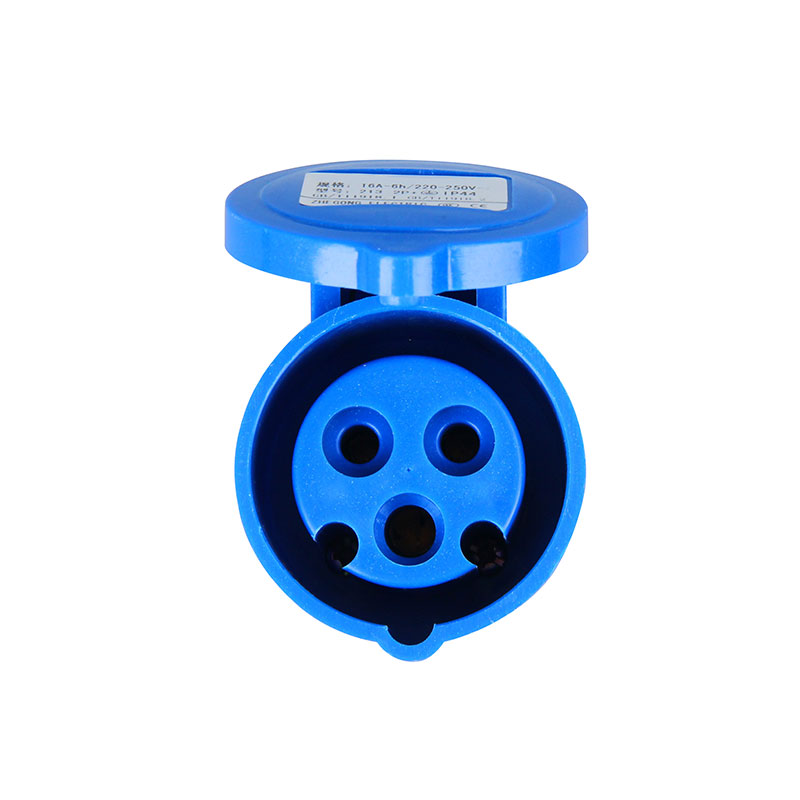

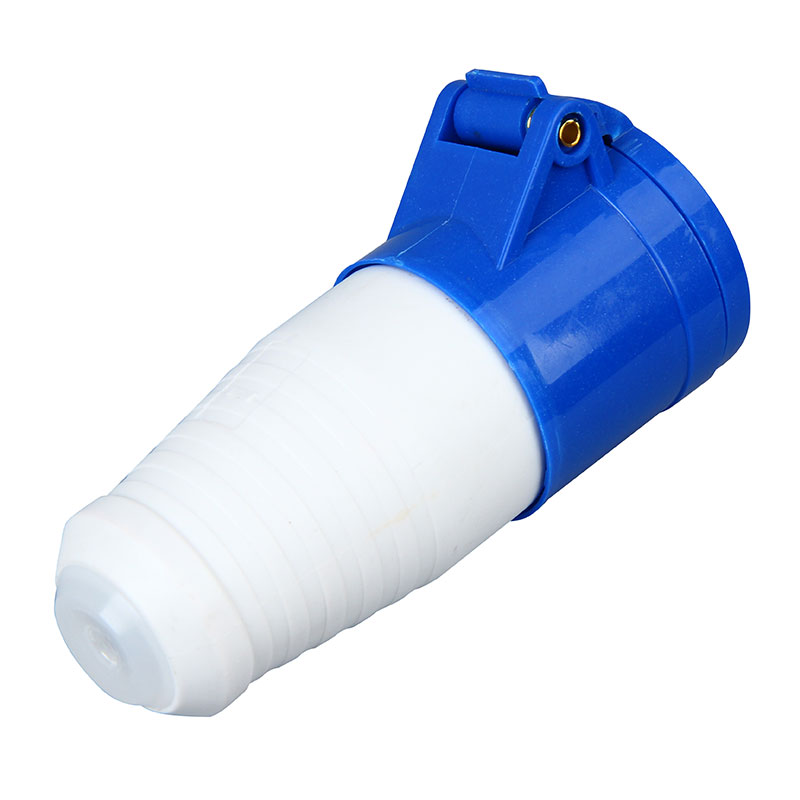

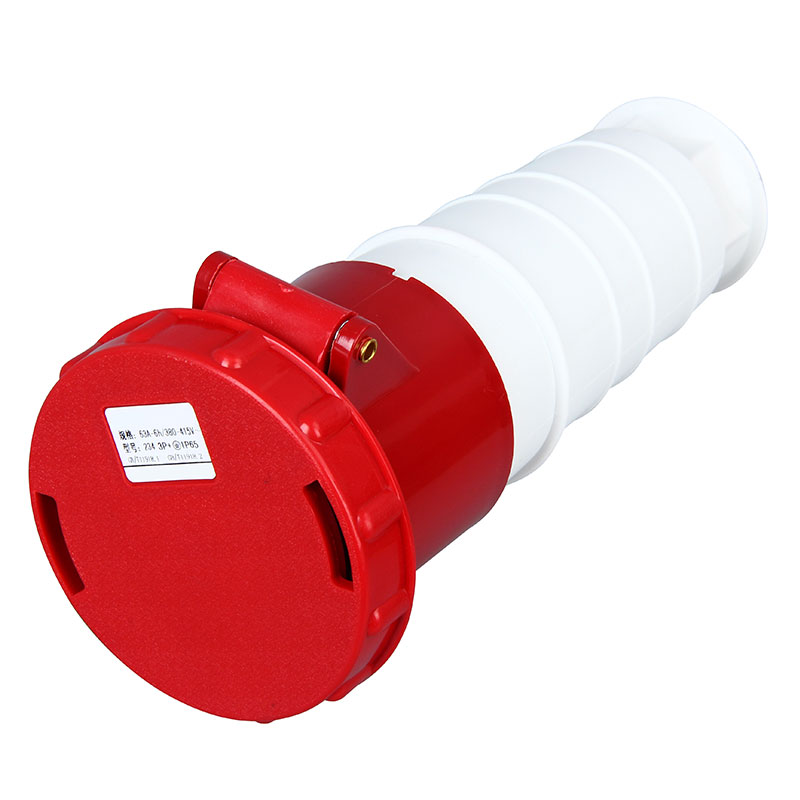

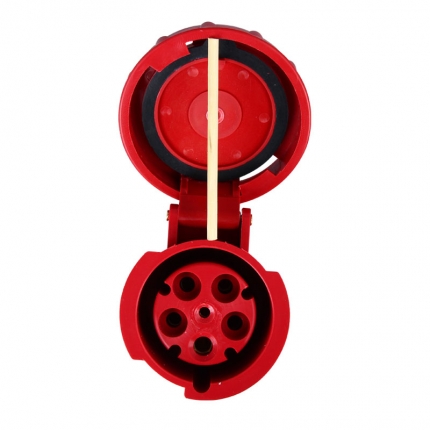

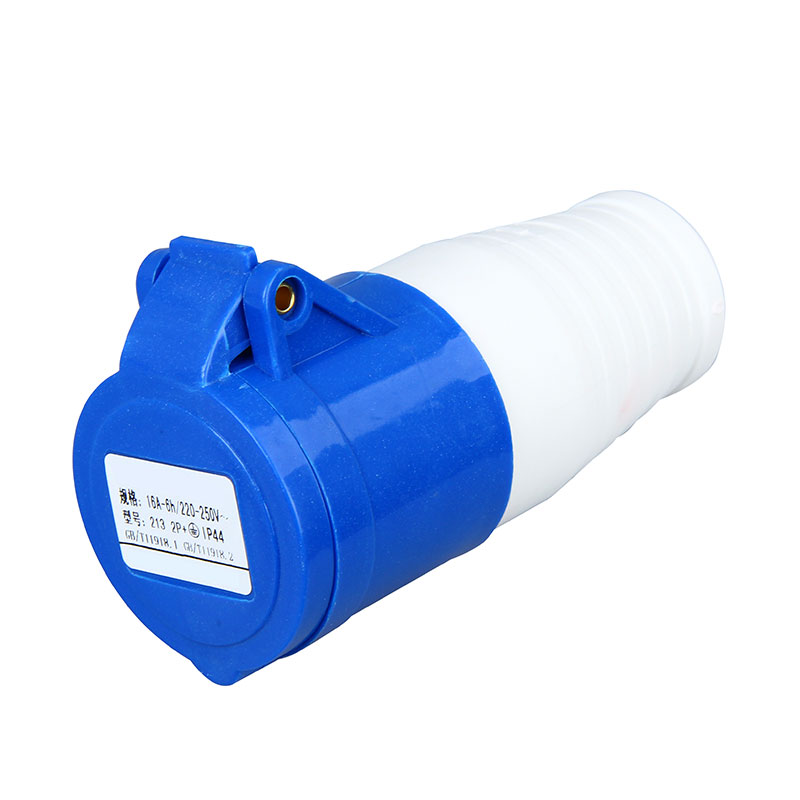

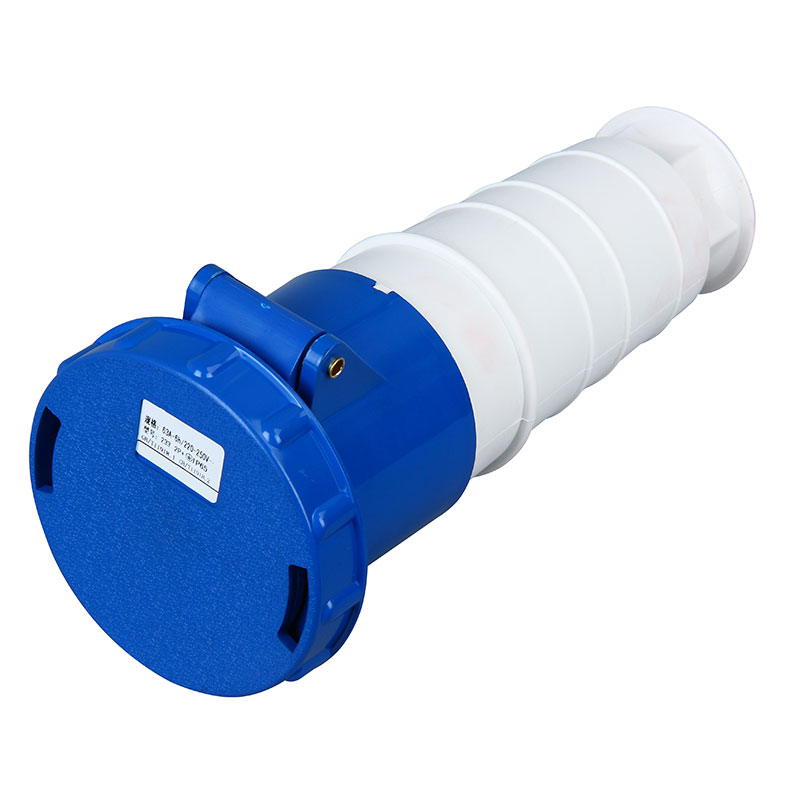

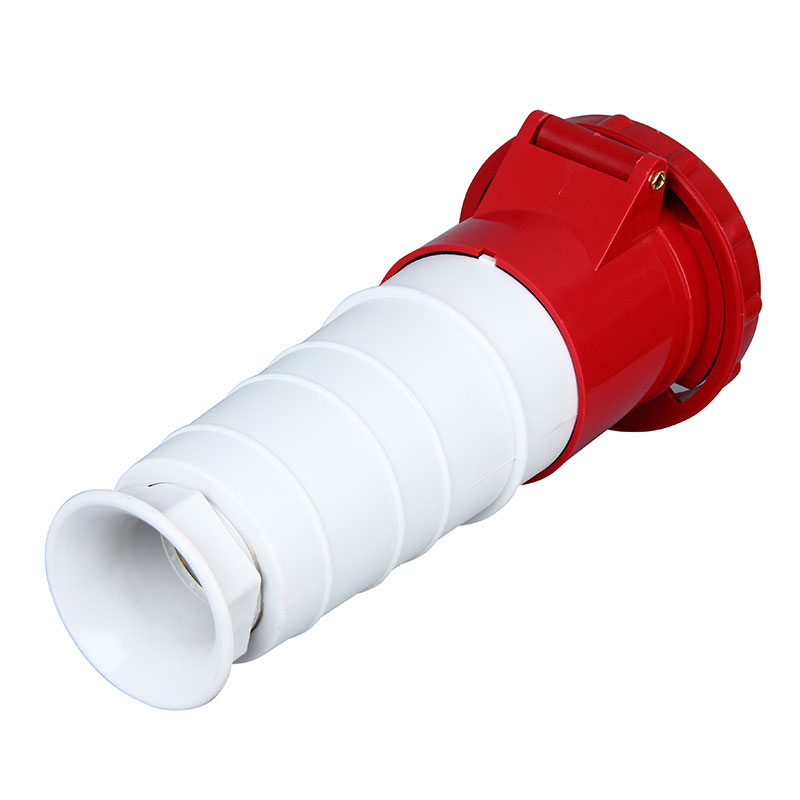

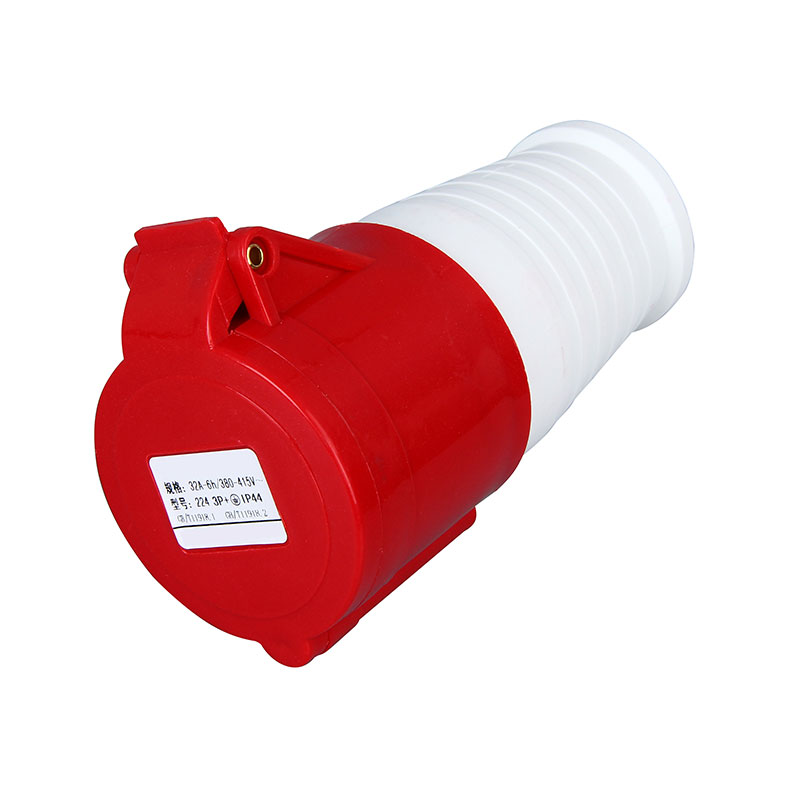

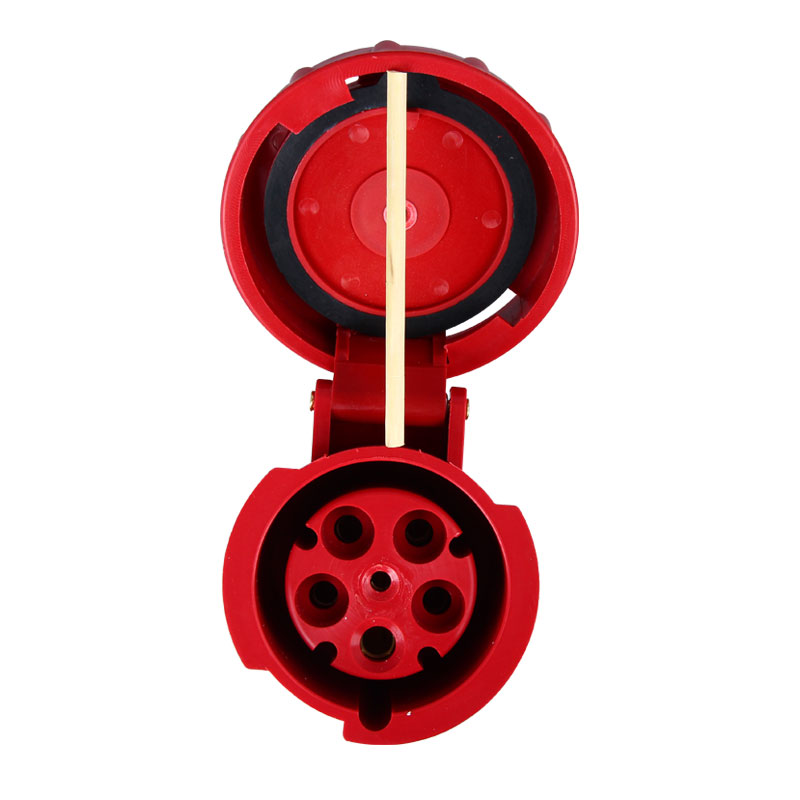

Industrial Socket Coupler
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

Model KB-213-4 KB-223-4 KB-213 KB-223 KB-214 KB-224 KB-215 KB-225 KB-233 KB-243 KB-234 KB-244 KB-235 KB-245
Earth Contact Position 4h 6h 6h 6h 6h 6h 6h
Rated Voltage (V) 110-130V~2P+E 220-240V~2P+E 380-415V~3P+E 220-380V / 240-415V~3P+N+E 220~240V~2P+E 380~415V~3P+E 220-380V / 240-415V~3P+N+E
Protection Degree IP44 IP44 IP44 IP44 IP67 IP67 IP67
Pole 3 3 4 5 3 4 5
Rated Current (A) 16 32 16 32 16 32 16 32 63 125 63 125 63 125

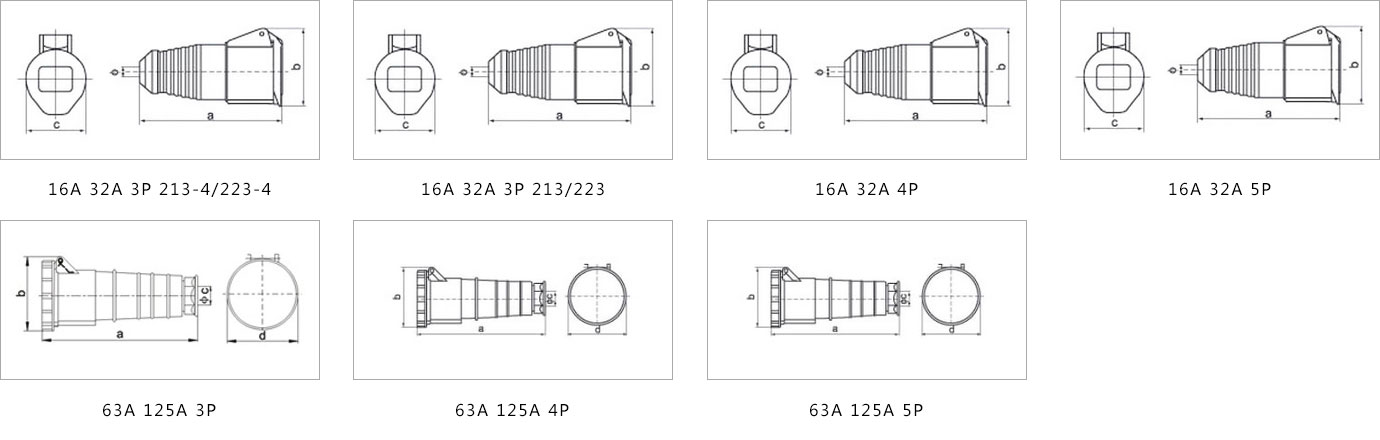

Dimension (mm) a 131 150 131 150 131 150 139 154 240 303 240 303 240 303
b 68 92 68 92 79 92 90 100 115 128 115 128 115 128
c 50 65 50 65 56 65 63 70.5 16-38 30-50 16-38 30-50 16-38 30-50
d - - - - - - - - 108 120 108 120 108 120
Φ 6 8 6 8 6 8 8 8 - - - - - -
Cable Nominal Cross-section Area (mm²) 1-2.5 2.5-6 1-2.5 2.5-6 1-2.5 2.5-6 1-2.5 2.5-6 6-16 16-50 6-16 16-50 6-16 16-50
