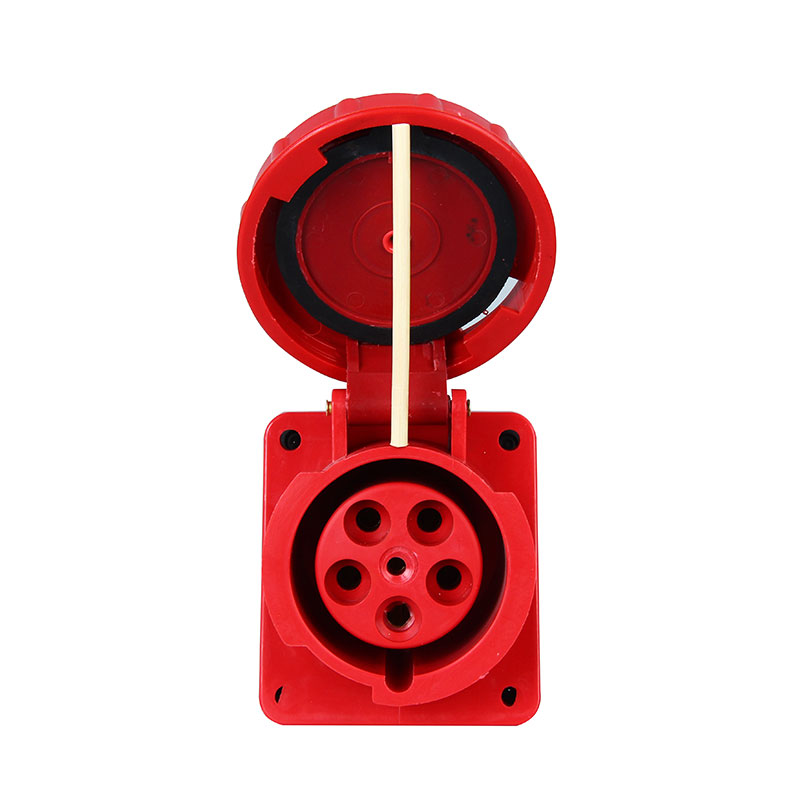

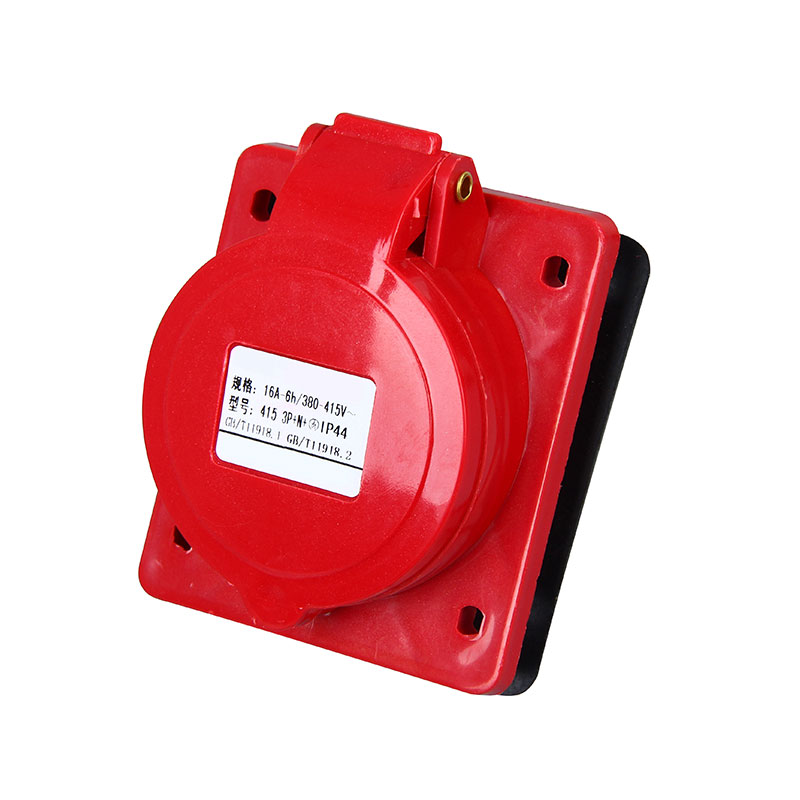

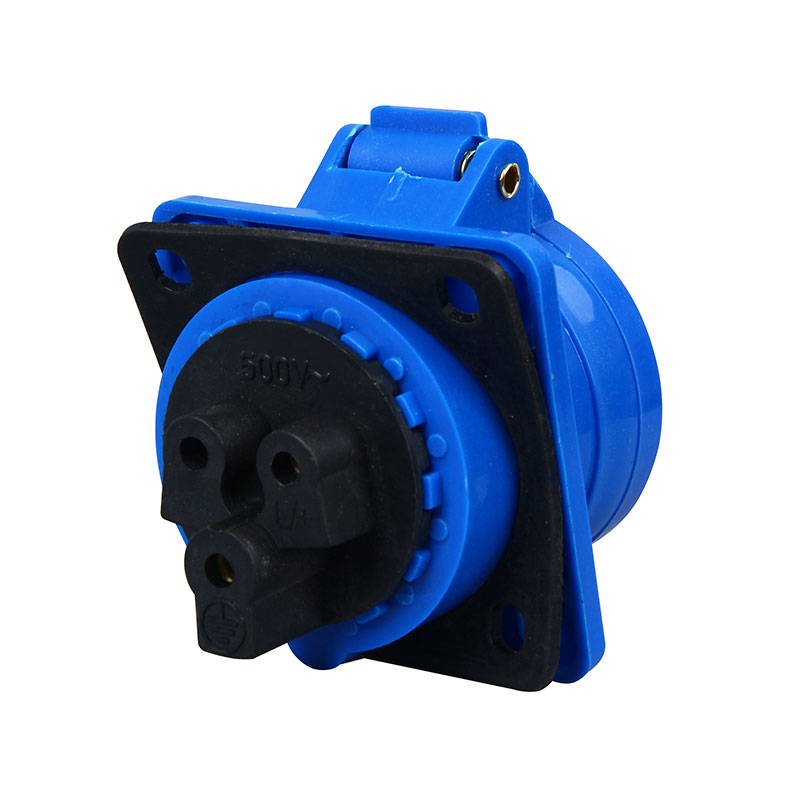

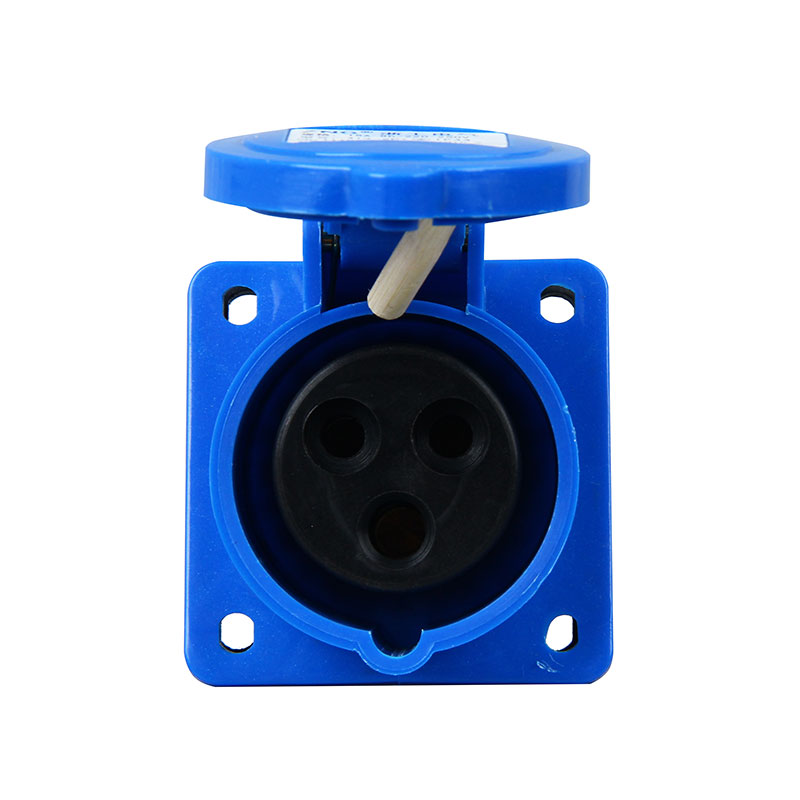

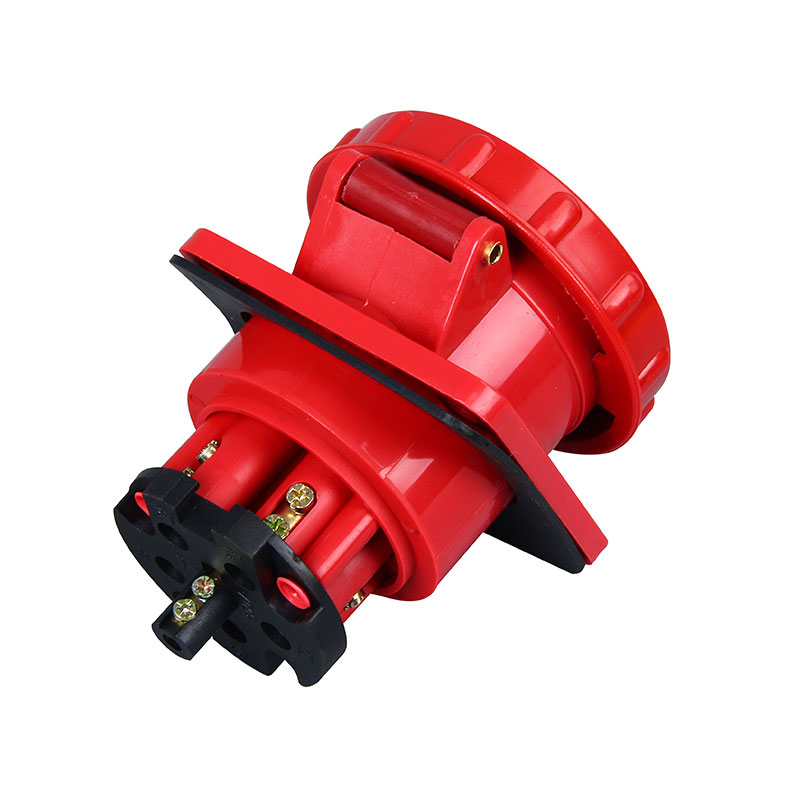

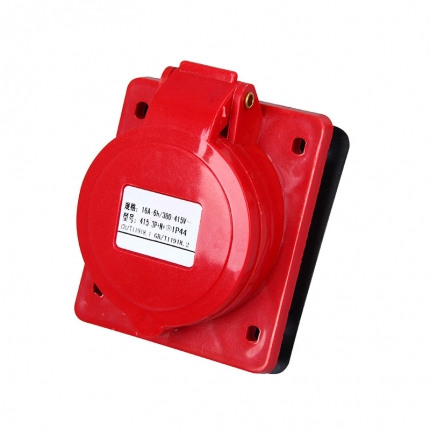

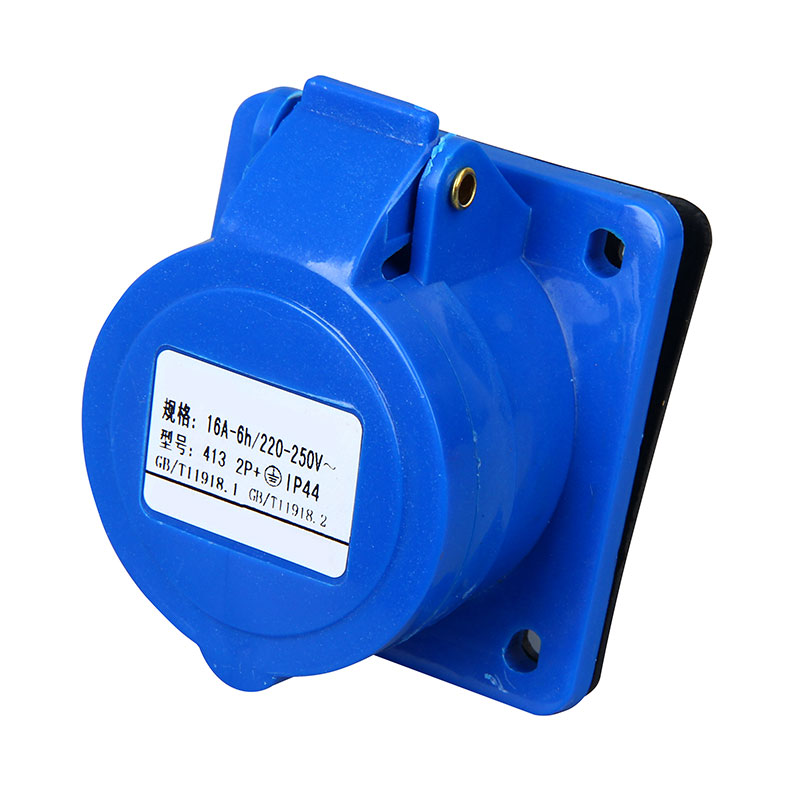

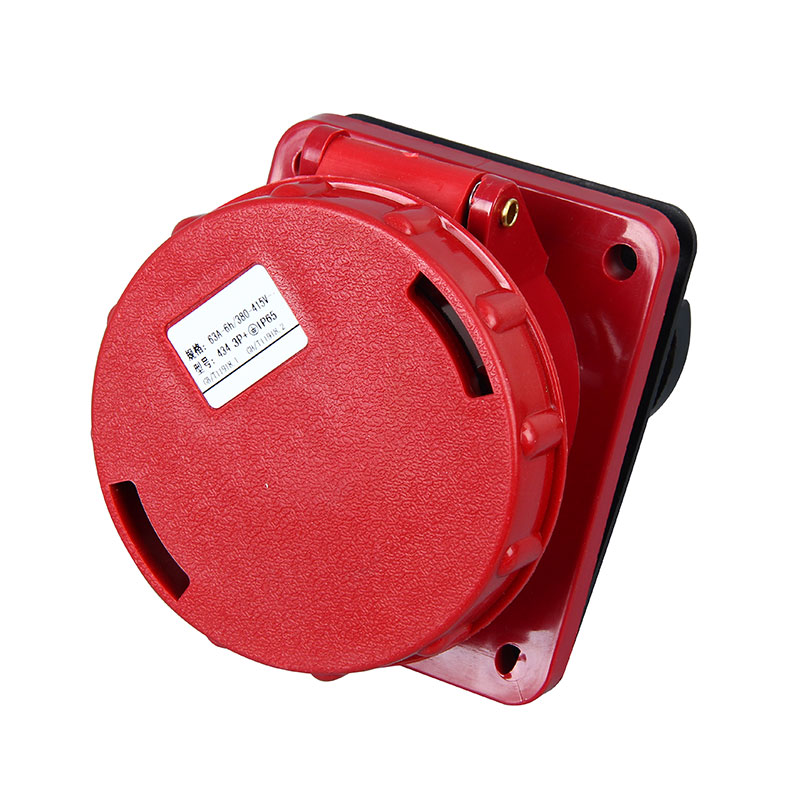

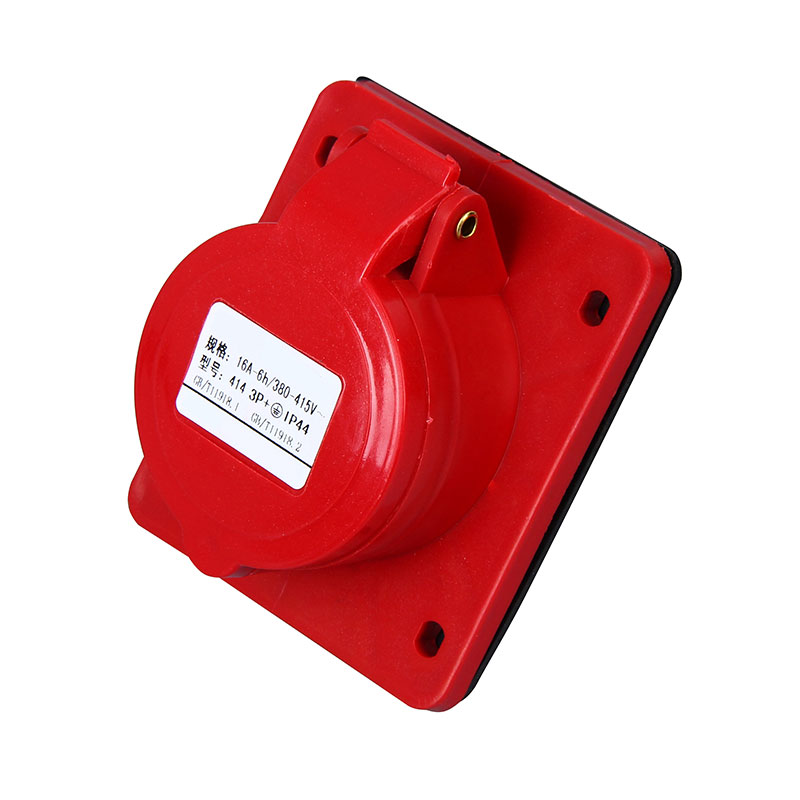

Industrial Angled Panel Socket

PRODUCT NAME:
Industrial Angled Panel Socket
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Model KB-413 KB-423 KB-414 KB-424 KB-415 KB-425 KB-433 KB-443 KB-434 KB-444 KB-435 KB-445
Earth Contact Position 6h 6h 6h 6h 6h 6h
Rated Voltage (V) 220-240V~2P+E 380-415V~3P+E 220-380V / 240-415V~3P+N+E 220~240V~2P+E 380~415V~3P+E 220-380V / 240-415V~3P+N+E
Protection Degree IP44 IP44 IP44 IP67 IP67 IP67
Pole 3 4 5 3 4 5
Rated Current (A) 16 32 16 32 16 32 63 125 63 125 63 125

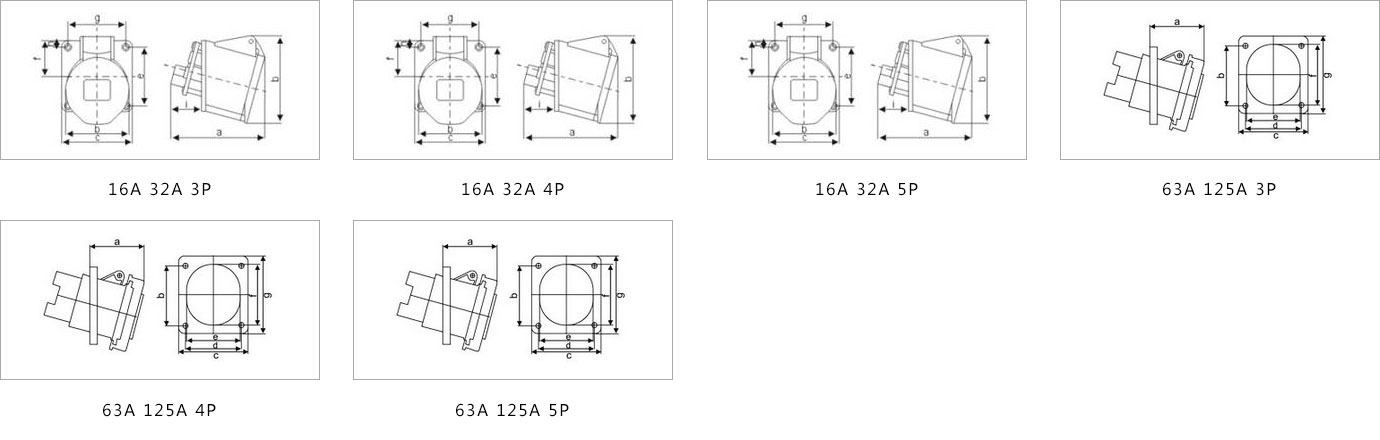

Dimension (mm) a 76 86 80 100 80 100 83 80 83 80 83 80
b 70.5 99 85 97 85 97 89 106 89 106 89 106
c 63 80 75 80 75 80 101 120 101 120 101 120
d 49 62 59 68 59 68 81 92 81 92 81 92
e 49 72 66 80 66 80 80.5 99 80.5 99 80.5 99
f 49 70.5 61 70.5 61 70.5 92.2 105 92.2 105 92.2 105
g 49 62 60 59.5 60 59.5 113 130 113 130 113 130
h 10.5 13 13 13 13 13 - - - - - -
i 37 40 46 55 46 55 - - - - - -
j 70 96 85 96 85 96 - - - - - -
Cable Nominal Cross-section Area (mm²) 1-2.5 2.5-6 1-2.5 2.5-6 1-2.5 2.5-6 6-25 16-50 6-25 16-50 6-25 16-50
