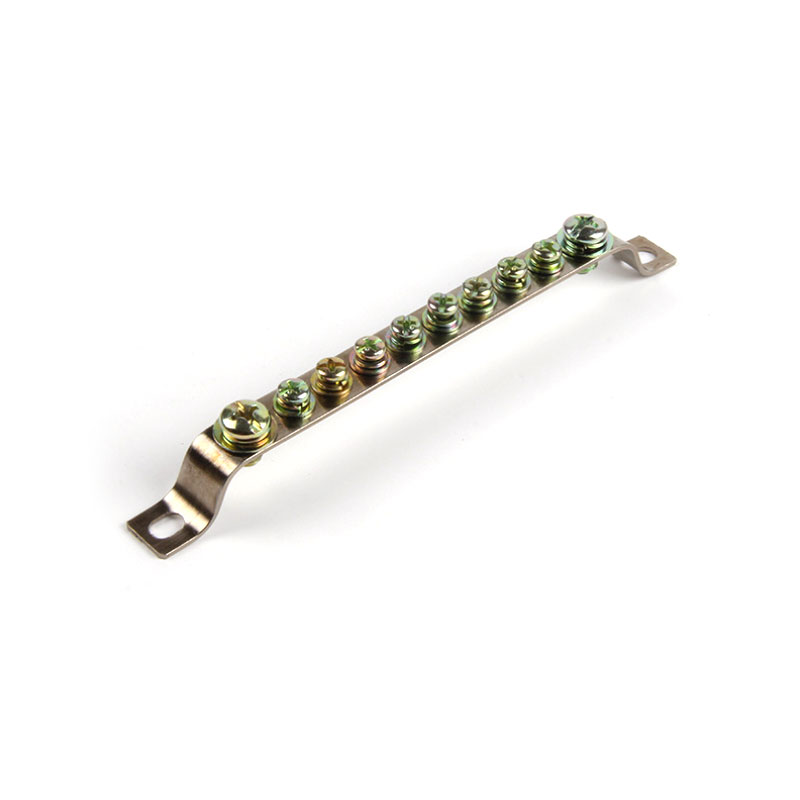

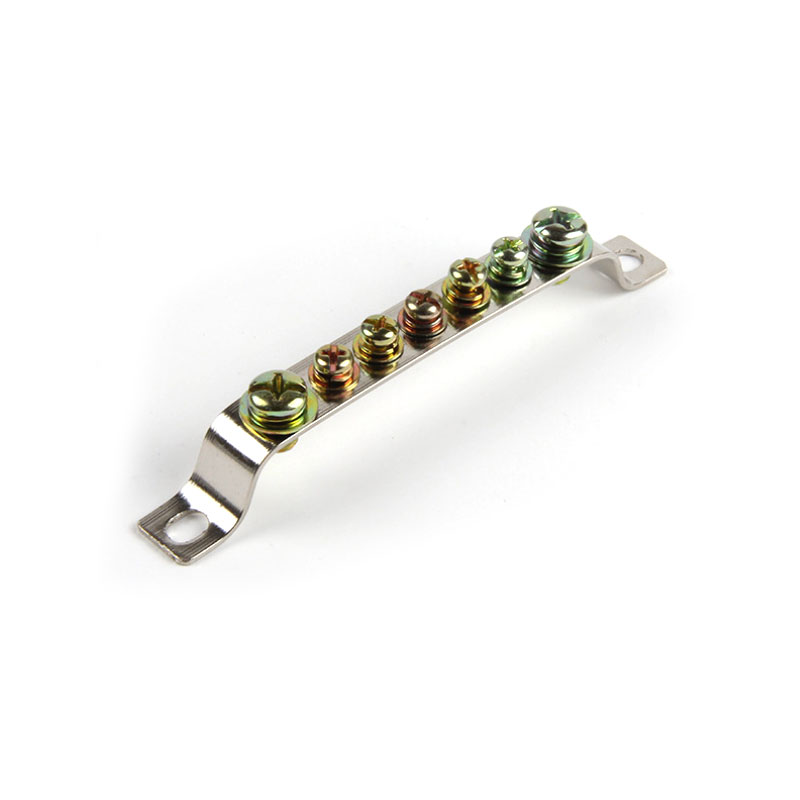

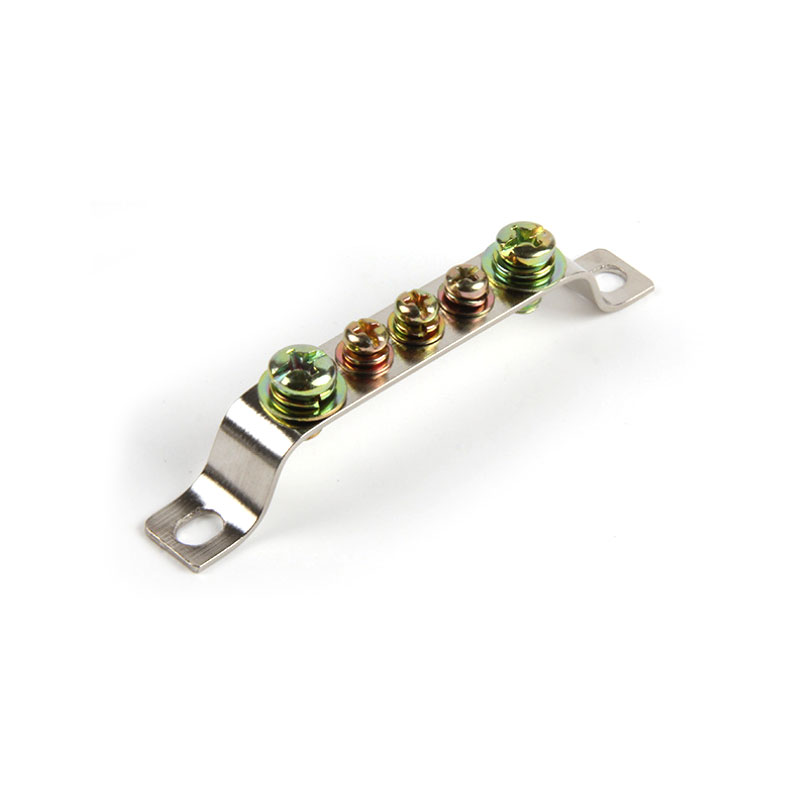

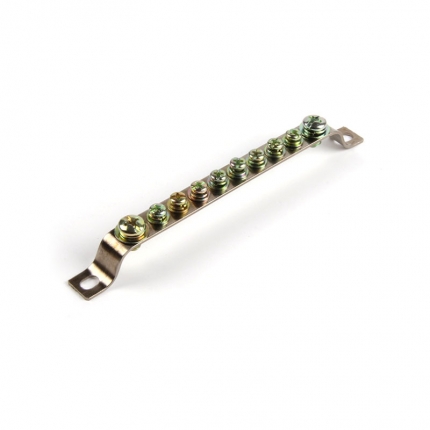

DP Ground Wire Terminal Block

PRODUCT NAME:
DP Ground Wire Terminal Block
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Technical Data
Screw Torx Screw
Material Brass
Color Screw surface for colored zinc plating, copper parts surface for nickel plating
Application Generally used for power distribution cabinets, distribution boxes and a variety of high voltage cabinet

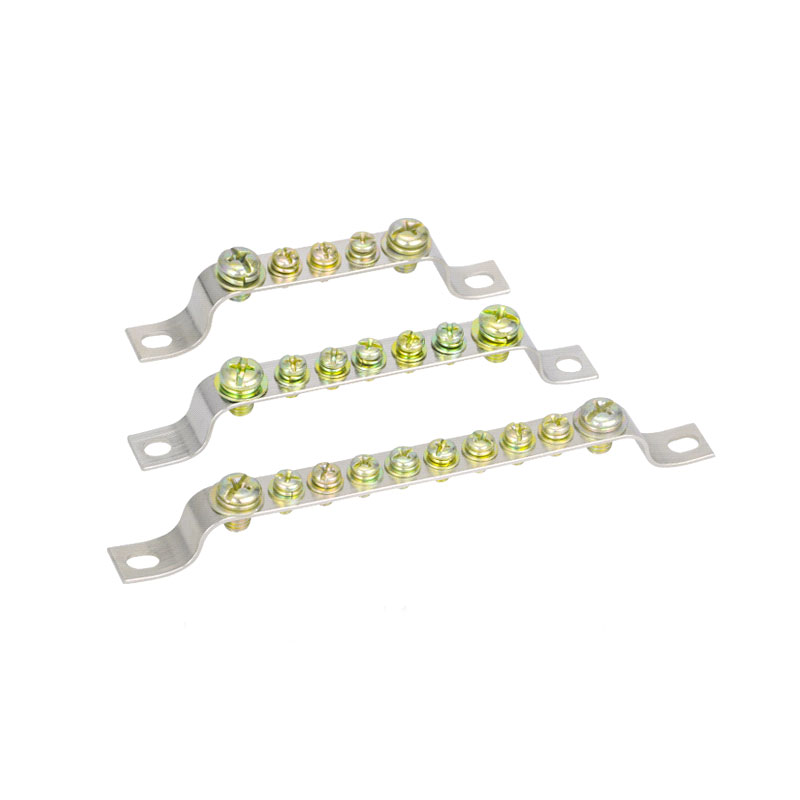

5 holes / 7 holes / 10 holes Ground Row
Brass nickel plating, not easy to oxidize
Ground row terminals is made of high quality brass, both ends use the M8 hole, the middle use the M5 hole. With high carrying capacity, easy wiring, not easy to oxidize and so on.

Technical Drawing

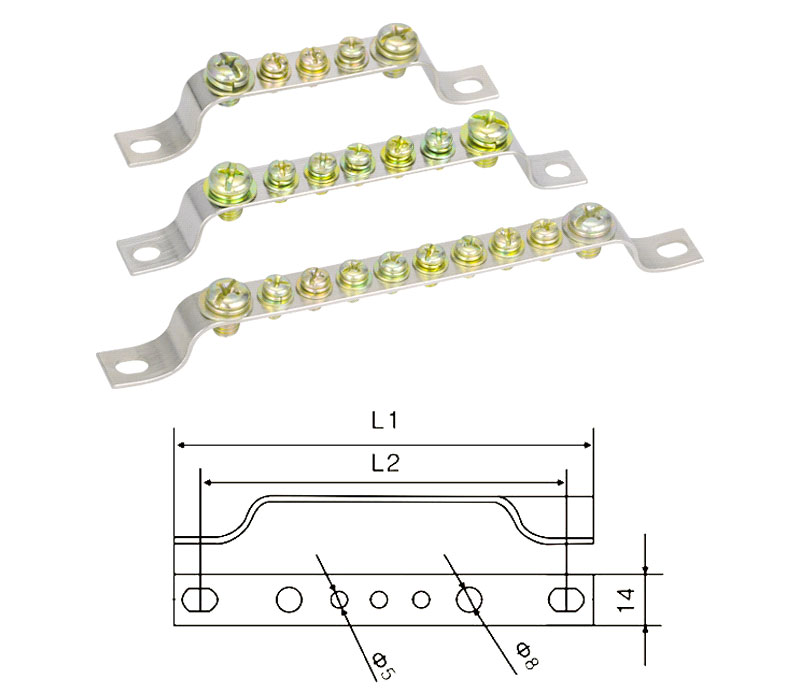

DP1614 Ground Line Terminal Block

Item No. Holes Spec. Total Length Dimension
DP1614-05 5 1.6×14 113mm 99mm
DP1614-07 7 1.6×14 135mm 70.5mm
DP1614-10 10 1.6×14 168mm 103mm

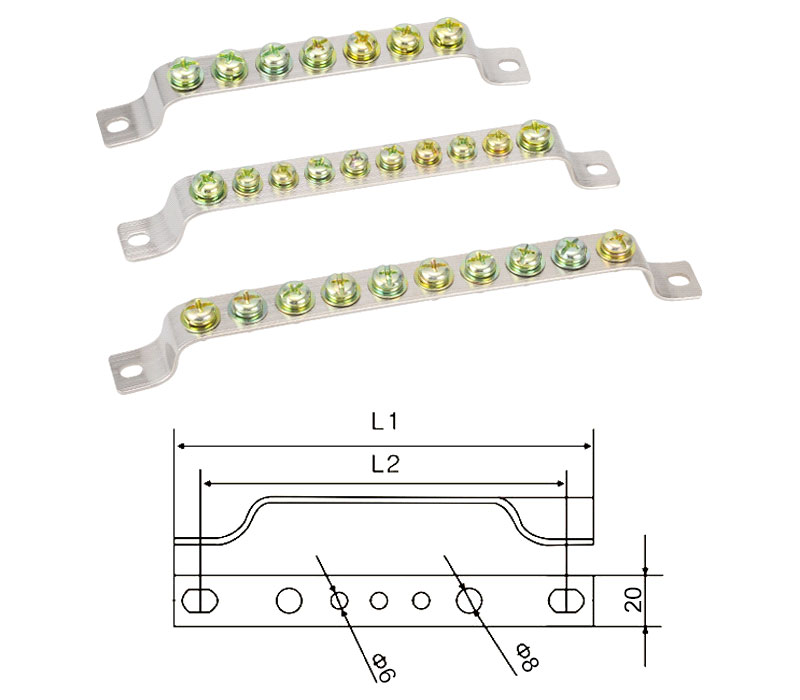

DP1820 Ground Line Terminal Block

Item No. Holes Spec. Total Length Dimension
DP1820-05 5 1.8×20 122mm 107mm
DP1820-07 7 1.8×20 152mm 137mm
DP1820-10 10 1.8×20 197mm 182mm

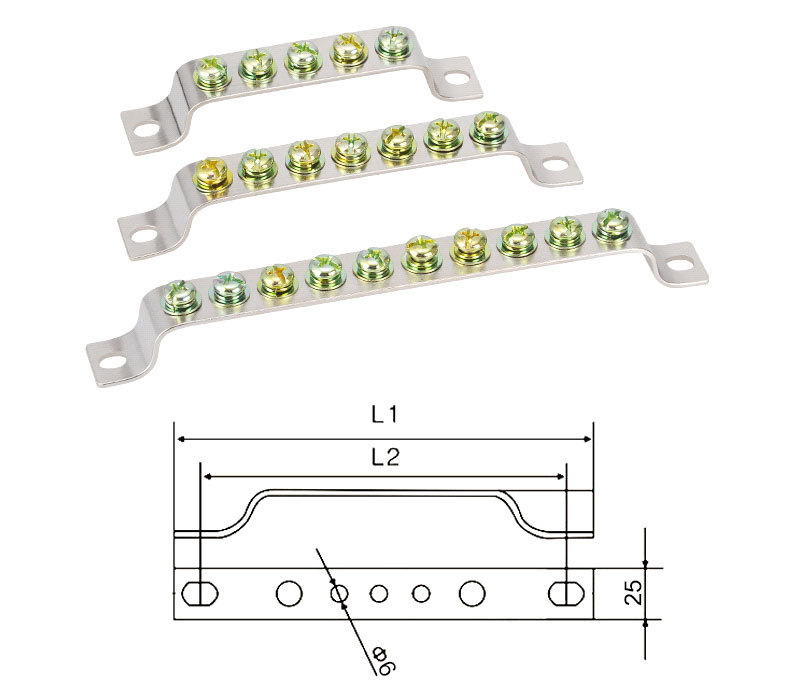

DP2025 DP2525 Ground Line Terminal Block

Item No. Holes Spec. Total Length Dimension
DP2025-05/DP2525-05 5 2.0×25 2.5×25 140mm 122mm
DP2025-07/DP2525-07 7 2.0×25 2.5×25 176mm 158mm
DP2025-10/DP2525-10 10 2.0×25 2.5×25 230mm 212mm
