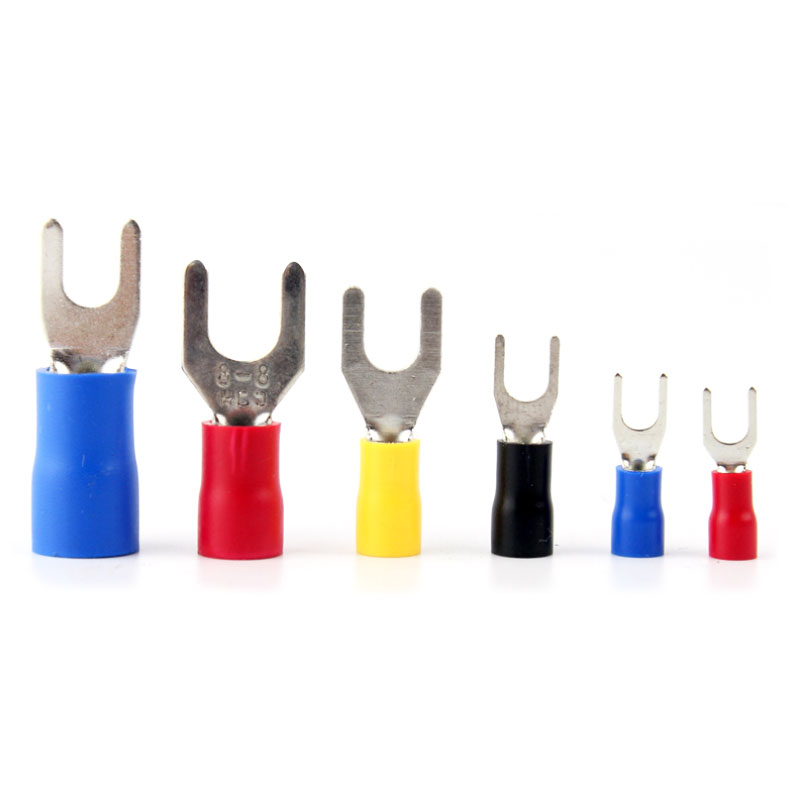

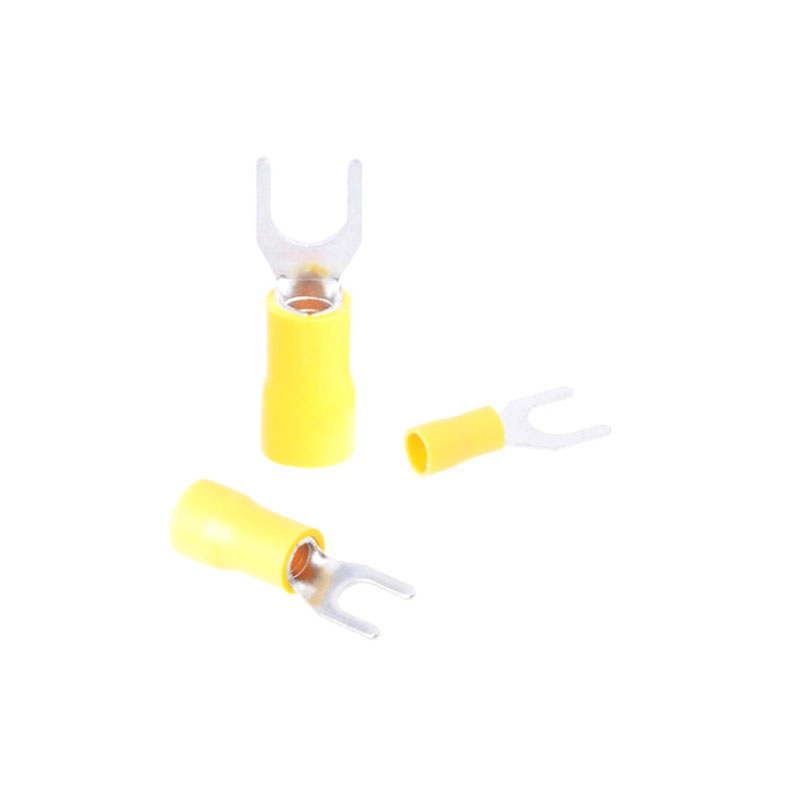

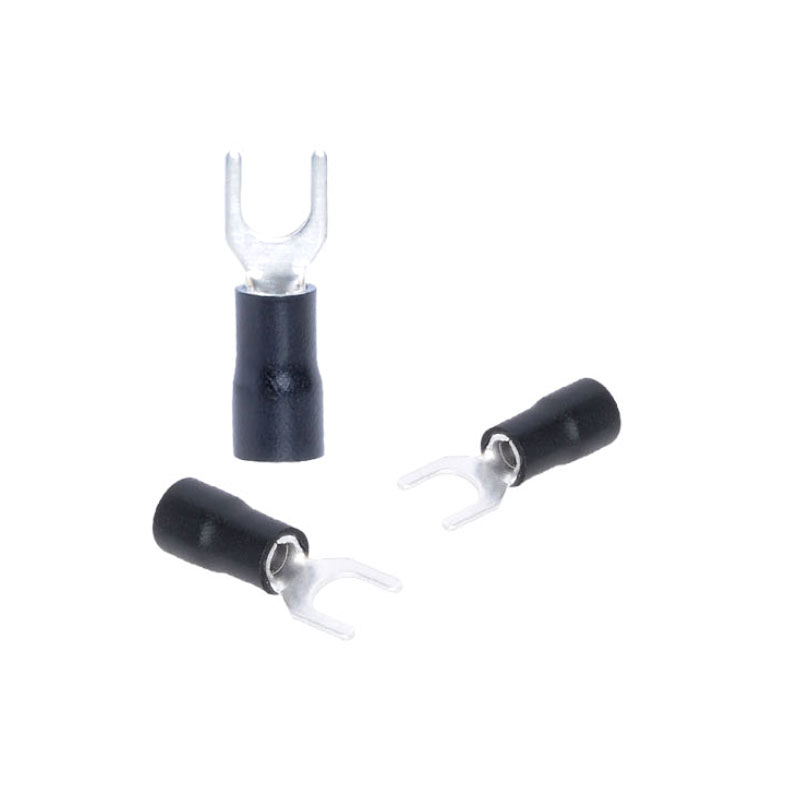

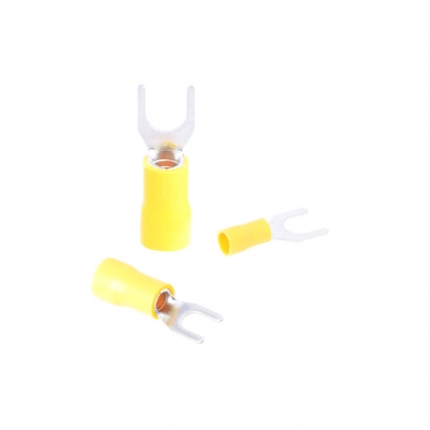

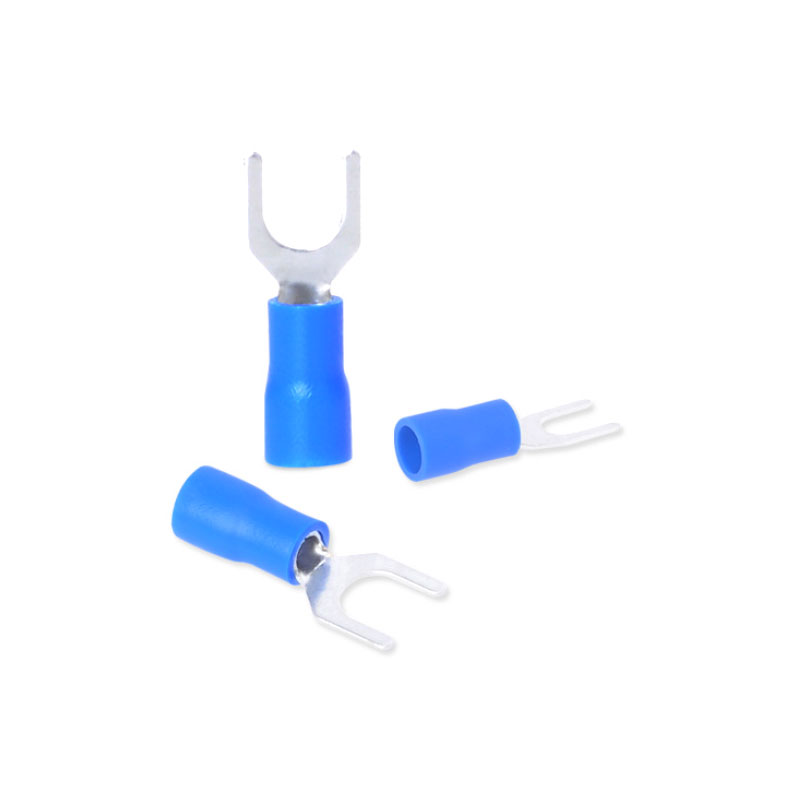

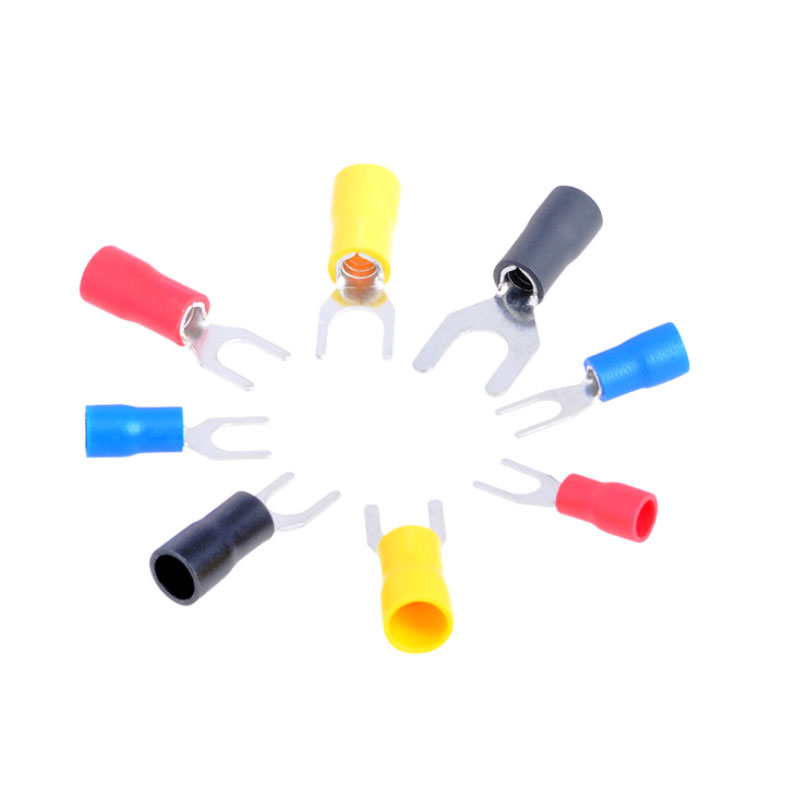

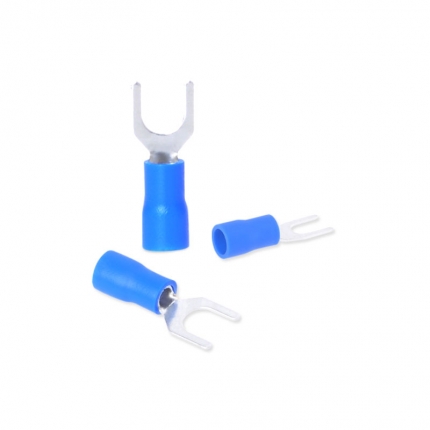

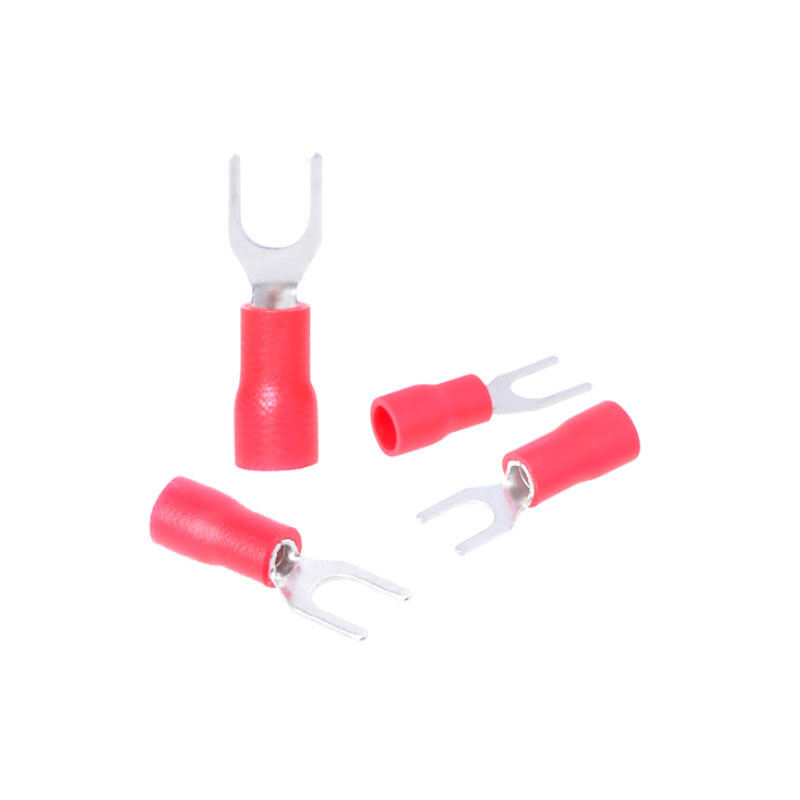

SV Fork Terminal Connectors

PRODUCT NAME:
SV Fork Terminal Connectors
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Technical Data



Item No. Wire Section AWG Maximum current Material
SV1.25 0.5~1.5mm² 22~16 19A Red Copper or Brass
SV2 1.5~2.5mm² 16~14 27A Red Copper or Brass
SV3.5 2.5~4mm² 14~12 37A Red Copper or Brass
SV5.5 4~6mm² 12~10 48A Red Copper or Brass

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

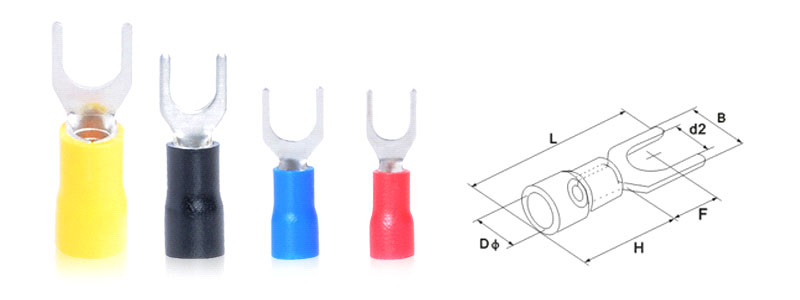

Technical Drawing

Structure Diagram (mm)

Item No USA Screw Diameter
d2
Packaging
pcs / pack
Dimension(mm) Color
B L F H ΦD
SV1.25-3.2 #4 3.2 1000 5.7 21.2 6.5 10.0 4.3 Red
SV1.25-3.5S #6 3.7 1000 5.7 21.2 6.5
SV1.25-3.5L #6 3.7 1000 6.4 21.2 6.5
SV1.25-4S #8 4.3 1000 6.4 21.2 6.5
SV1.25-4M #8 4.3 1000 7.2 21.2 6.5
SV1.25-4L #8 4.3 1000 8.1 21.2 6.5
SV1.25-5S #10 5.3 1000 8.1 21.2 6.5
SV1.25-5L #10 5.3 1000 9.5 21.2 6.5
SV1.25-6S 1/4 6.4 1000 9.5 21.2 6.5
SV1.25-6L 1/4 6.4 500 12.0 27.2 11.0
SV2-3.2 #6 3.2 1000 5.7 21.2 6.5 10.0 4.9 Blue
SV2-3.5S #6 3.7 1000 5.7 21.2 6.5
SV2-3.5L #6 3.7 1000 6.0 21.2 6.5
SV2-4S #8 4.3 1000 6.4 21.2 6.5
SV2-4M #8 4.3 1000 7.2 21.2 6.5
SV2-4L #8 4.3 1000 8.1 21.2 6.5
SV2-5S #10 5.3 1000 8.1 21.2 6.5
SV2-5L #10 5.3 1000 9.5 21.2 6.5
SV2-6S 1/4 6.4 1000 9.5 21.2 6.5
SV2-6L 1/4 6.4 500 12.0 27.2 11.0
SV3.5-3 #4 3.2 500 5.7 24.8 7.0 13.0 6.2 Black
SV3.5-4 #8 4.3 500 8.0 24.8 7.0
SV3.5-5 #10 5.3 500 8.0 24.8 7.0
SV3.5-6 1/4 6.4 500 12.0 28.0 12.1
SV5.5-3.5 #6 3.7 500 8.3 25.2 7.5 13.0 6.7 Yellow
SV5.5-4S #8 4.3 500 8.3 25.2 7.5
SV5.5-4L #8 4.3 500 9.0 25.2 7.5
SV5.5-5 #10 5.3 500 9.0 25.2 7.5
SV5.5-6S 1/4 6.4 500 9.0 25.2 7.5
SV5.5-6L 1/4 6.4 500 12.0 21.2 12.0
SV5.5-8 5/16 8.4 500 14.0 30.0 11.5
