TE Crewel Tube Pre Insulated Terminals

PRODUCT NAME:

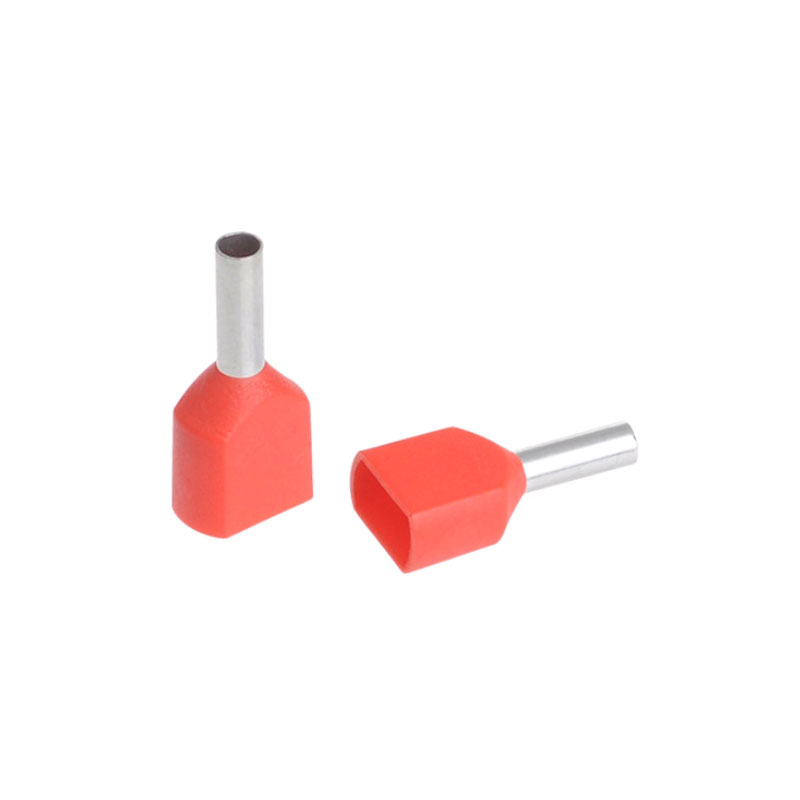

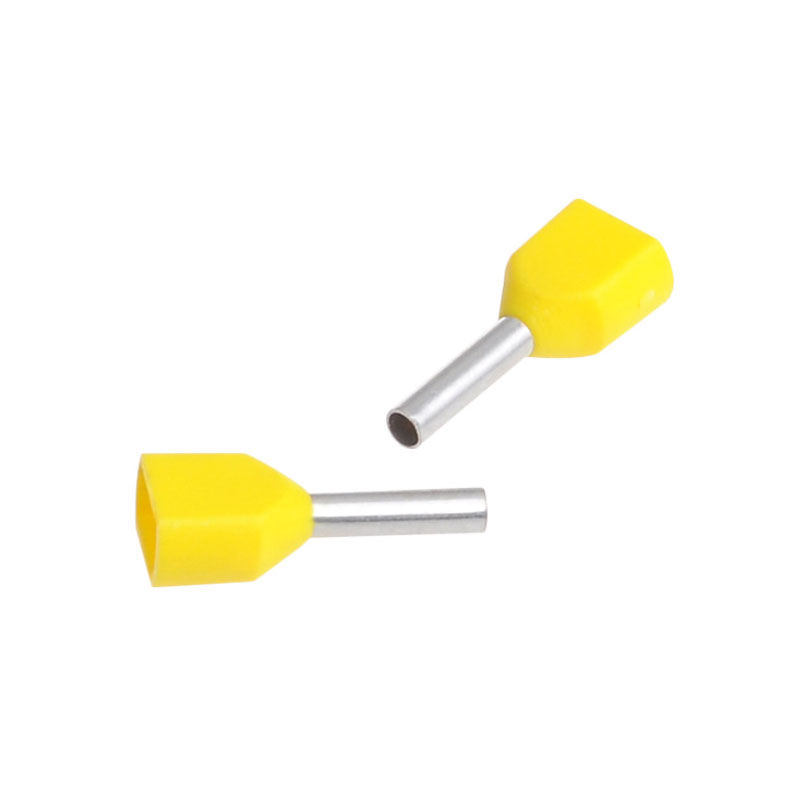

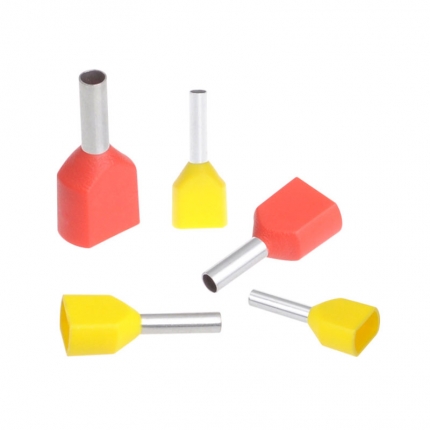

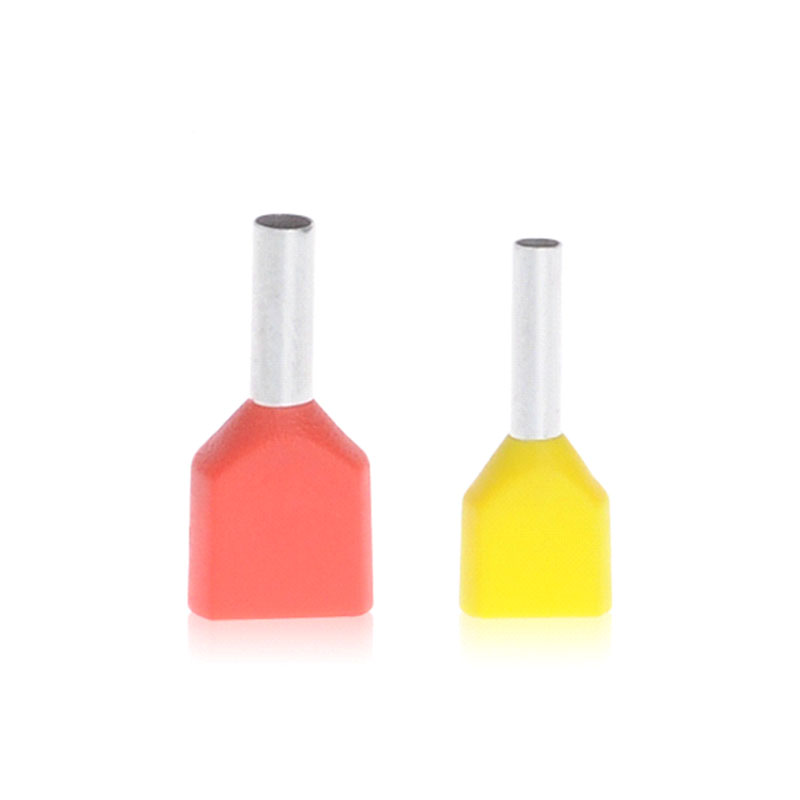

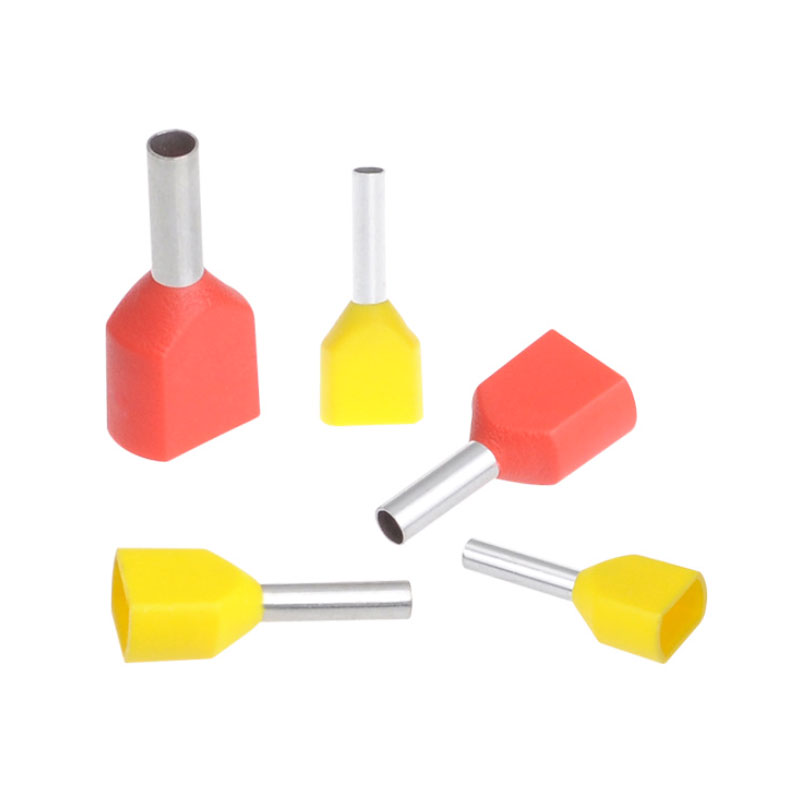

TE Crewel Tube Pre Insulated Terminals
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Technical Data
Certification CE
Maximum withstand voltage 105℃ 300V
End Material Red Copper or Brass
Housing Material PVC Plastic

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

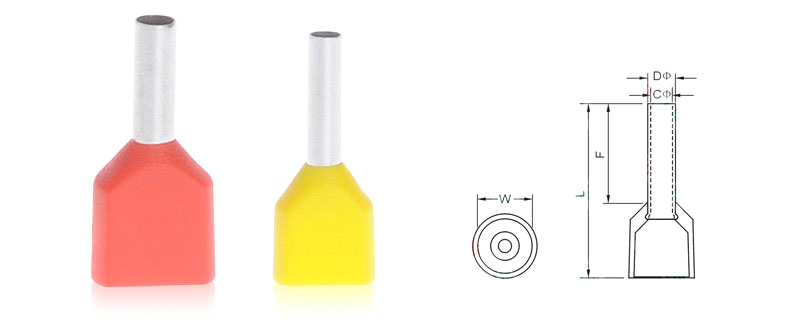

Technical Drawing

Structure Diagram (mm)

Item No Packaging
pcs / pack
Dimension(mm) Comdutor Color
F L W ΦD ΦC B DIN NF
TE0508 1000 8.0 14.5 5.0 1.8 1.5 6.5 2×0.5 White White
TE7508 1000 8.0 14.7 5.5 2.1 1.8 6.7 2×0.75 Blue Grey
TE7510 1000 10.0 16.7 5.5 2.1 1.8 6.7 2×0.75
TE1008 1000 8.0 15.1 5.5 2.3 2.0 7.1 2×1.0 Red Red
TE1010 1000 10.0 17.1 5.5 2.3 2.0 7.1 2×1.0
TE1508 1000 8.0 15.5 6.4 2.6 2.3 7.5 2×1.5 Black Yellow
TE1512 1000 12.0 19.5 6.4 2.6 2.3 7.5 2×1.5
TE2510 1000 10.0 18.5 8.0 3.3 2.9 8.5 2×2.5 Grey Blue
TE2513 1000 13.0 21.5 8.0 3.3 2.9 8.5 2×2.5
TE4012 1000 12.0 23.1 8.8 4.2 3.8 11.1 2×4.0 Orange Grey
TE6014 500 14.0 26.1 9.5 5.3 4.9 12.1 2×6.0 Green Yellow
TE10-14 500 14.0 26.6 12.6 6.9 6.5 12.6 2×10.0 Brown Red
TE16-14 500 14.0 31.3 19.0 8.7 8.3 17.3 2×16.0 Milky white Blue
