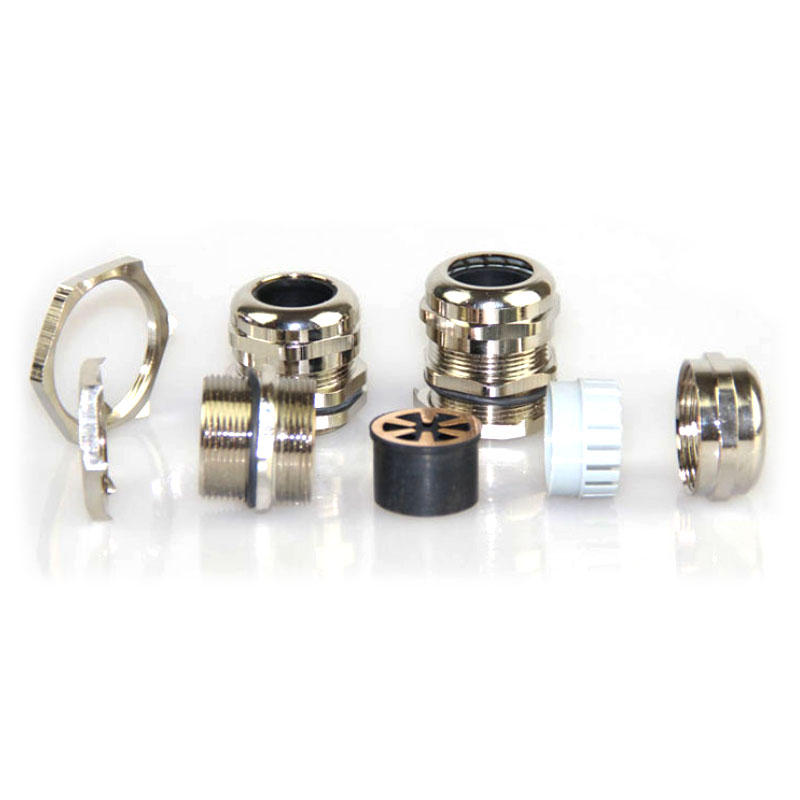

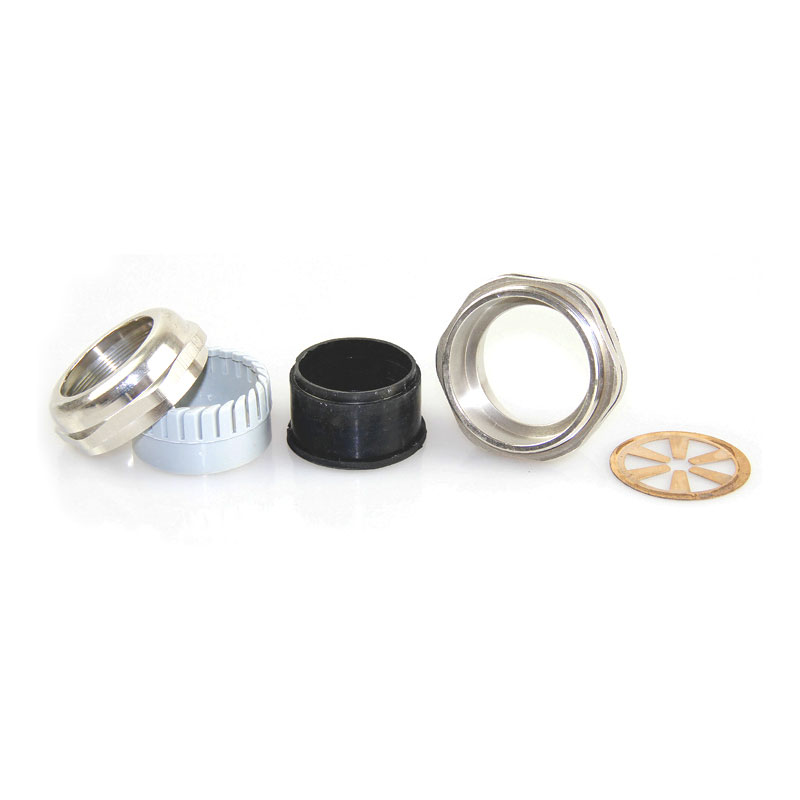

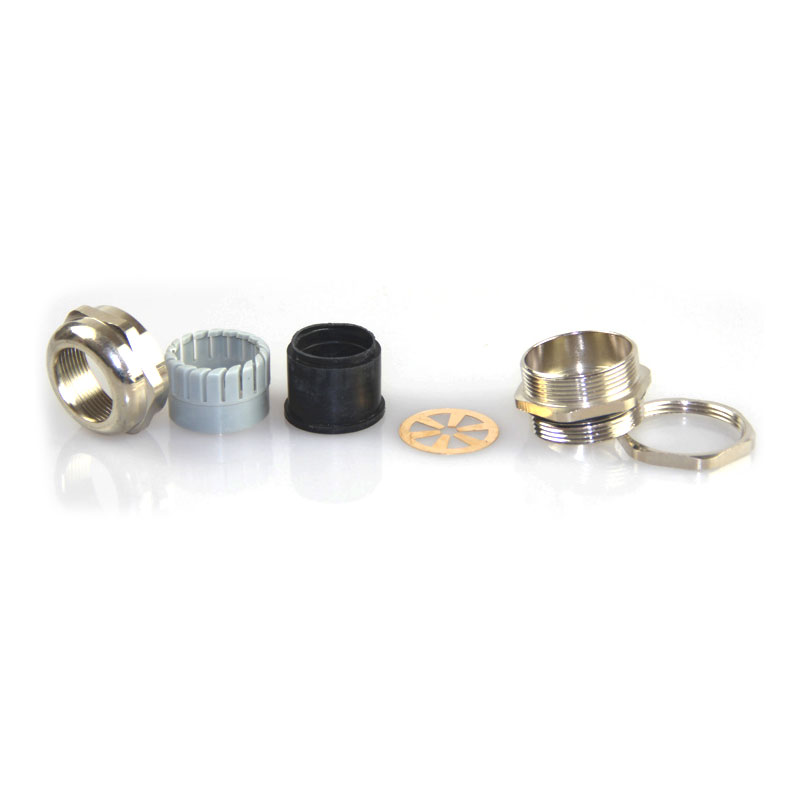

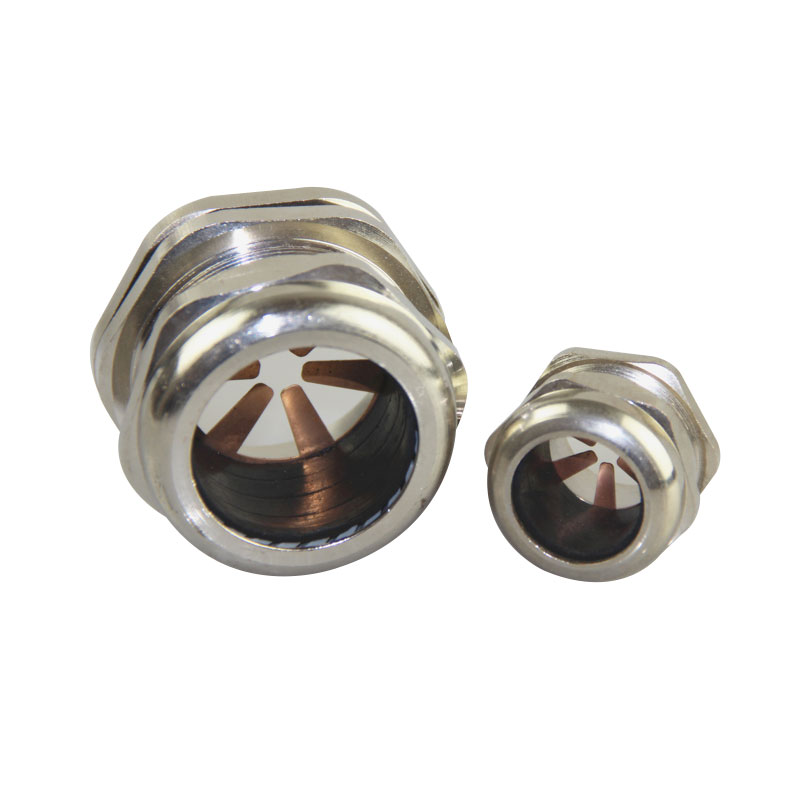

E-PG Copper Cable Gland

PRODUCT NAME:
E-PG Copper Cable Gland
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Material: Nickel Plated Brass
Clamping Piece: Nylon Plastic (PA)
Seals: NBR
O-Sealing Ring: NBR
Protection Degree: IP68
Temperature Environment: -40℃ to 100℃, short time to 120℃

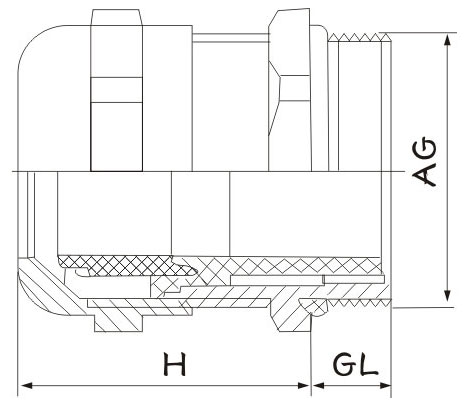

Model AG (M) Cable Range mm

GL mm

H mm Wrench Diameter mm
E-M12×1.5 M12×1.5 3-6 6 19 14
E-M14×1.5 M14×1.5 3-6 6 19 17
E-M16×1.5 M16×1.5 4-8 8 20 18
E-M18×1.5 M18×1.5 6-10 8 22 20
E-M20×1.5 M20×1.5 6-12 8 21 22
E-M22×1.5 M22×1.5 8-12 9 25 24
E-M24×1.5 M24×1.5 10-14 10 25 27
E-M25×1.5 M25×1.5 13-18 10 25 27
E-M32×1.5 M32×1.5 15-22 11 32 36
E-M40×1.5 M40×1.5 18-25 12 35 42
E-M50×1.5 M50×1.5 25-32 13 38 54
E-M63×1.5 M63×1.5 37-44 14 40 64
E-M27×2 M27×2 13-18 11 29 30
E-M30×2 M30×2 13-18 11 30 32
E-M33×2 M33×2 15-22 11 31 36
E-M36×2 M36×2 18-25 11 31 40
E-M42×2 M42×2 22-28 12 34 45
E-M48×2 M48×2 25-32 13 37 54
E-M54×2 M54×2 32-38 14 39 57
E-M60×2 M60×2 37-44 14 40 64
E-M64×2 M64×2 37-44 14 42 70
E-M72×2 M72×2 42-45 15 43 78
E-M76×2 M76×2 48-55 17 45 82
E-M80×2 M80×2 50-60 18 48 87
