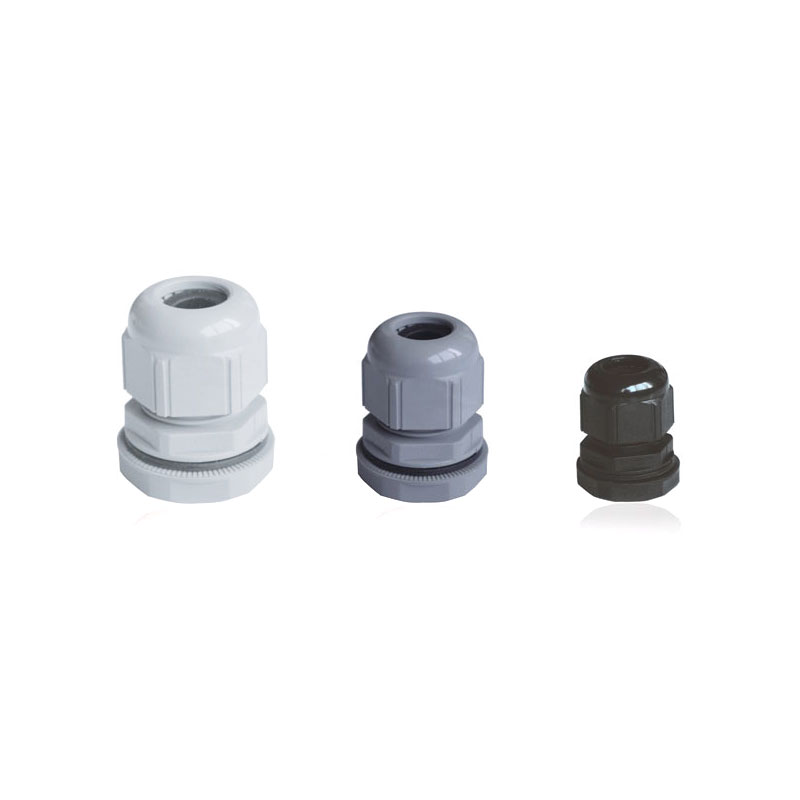

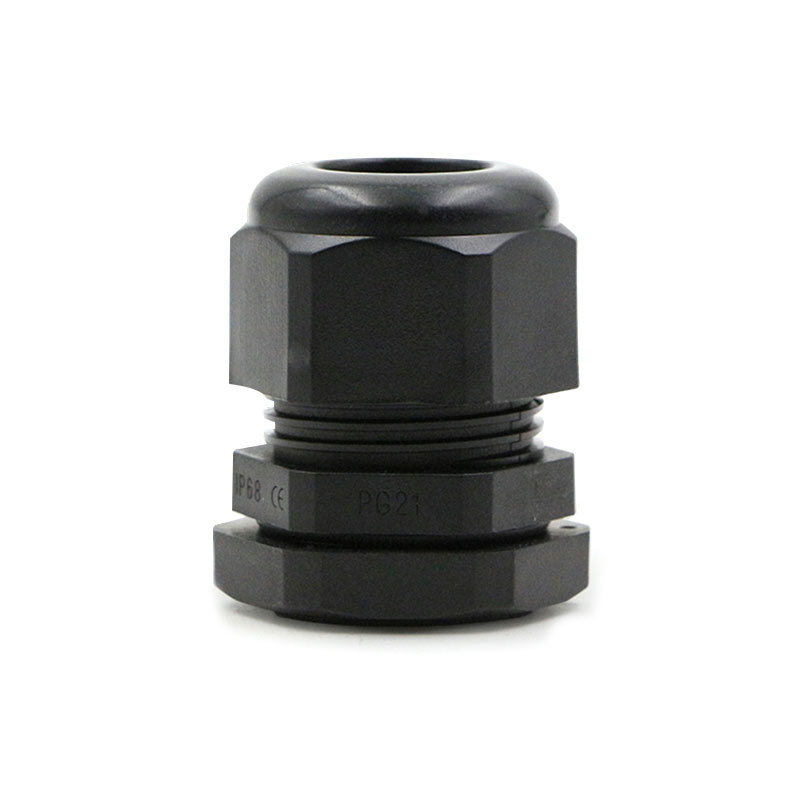

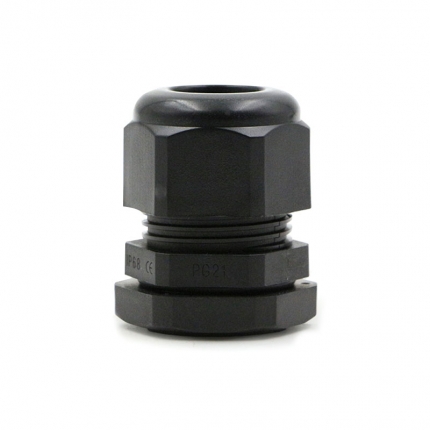

Cable Gland PG-F Type

PRODUCT NAME:
Cable Gland PG-F Type
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Material: Nylon Plastic (PA)
Seals: NBR
Protection Degree: IP68
Temperature Environment: Static -40℃ to 100℃, short time to 120℃; dynamic -20℃ to 80℃, short time to 120℃.

Model AG(PG) Cable Range mm

GL mm

H mm Wrench Diameter mm
PG-F7 PG7 3-6.5 8 21 15
PG-F9 PG9 4-8 8 22 19
PG-F11 PG11 5-10 8 25 22
PG-F13.5 PG13.5 6-12 9 27 24
PG-F16 PG16 10-14 10 28 27
PG-F21 PG21 13-18 11 31 33
PG-F29 PG29 18-25 11 39 42
PG-F36 PG36 22-32 13 48 53
PG-F42 PG42 32-38 13 48 60
PG-F48 PG48 37-44 14 49 65
