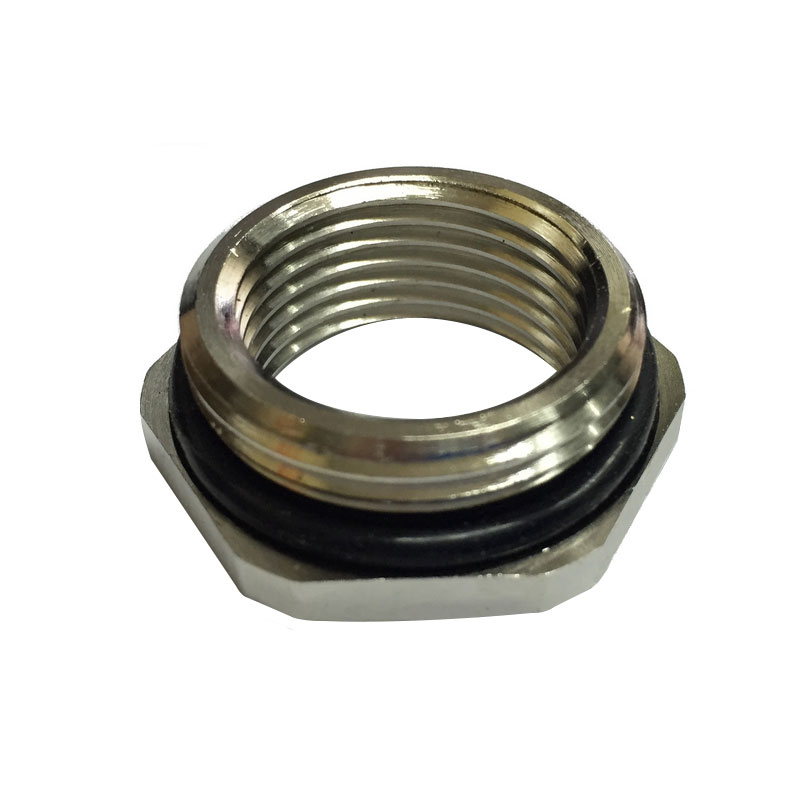

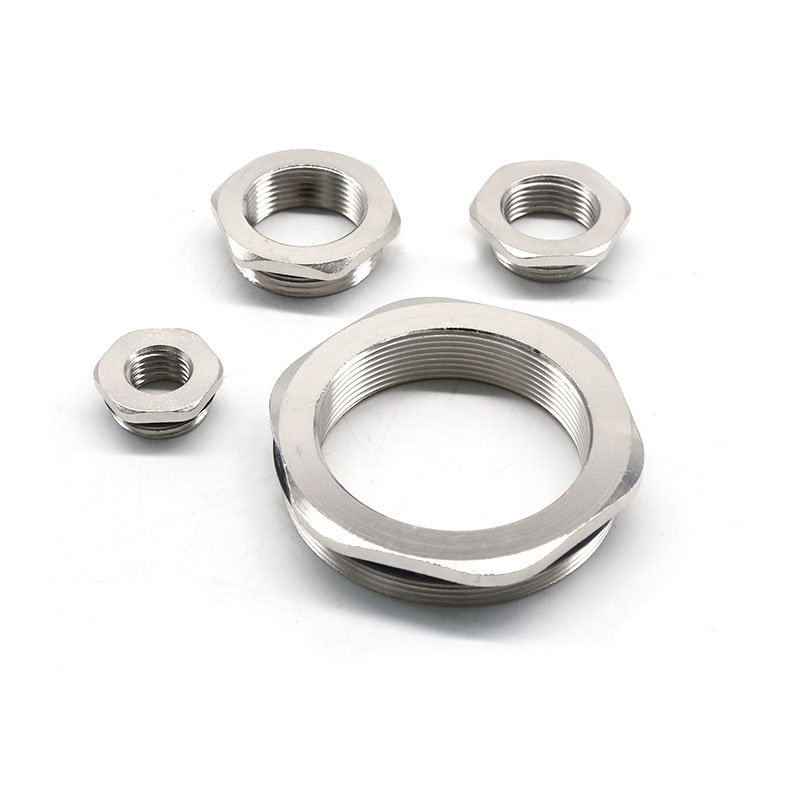

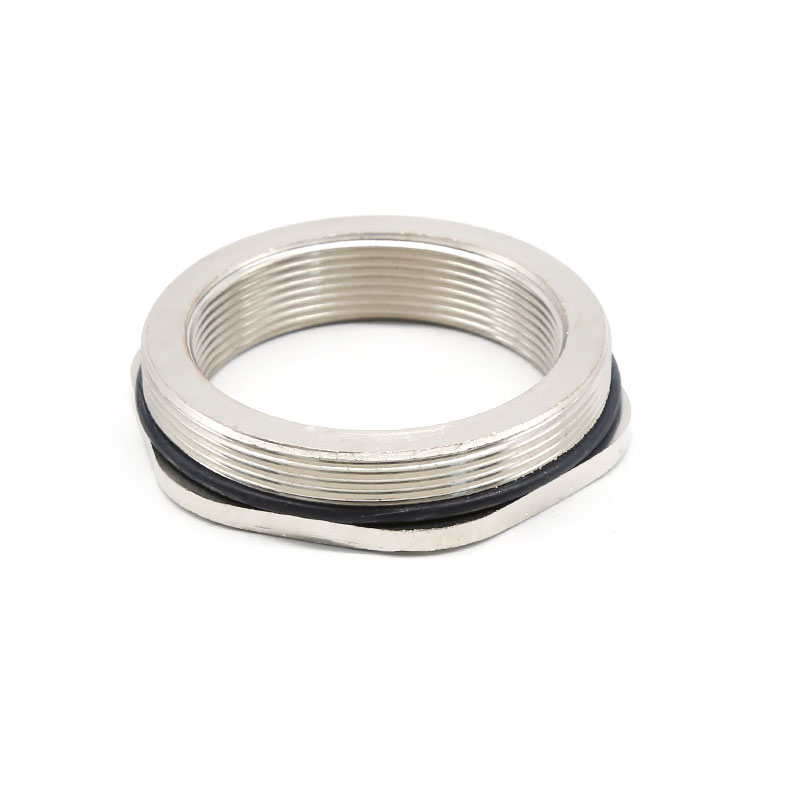

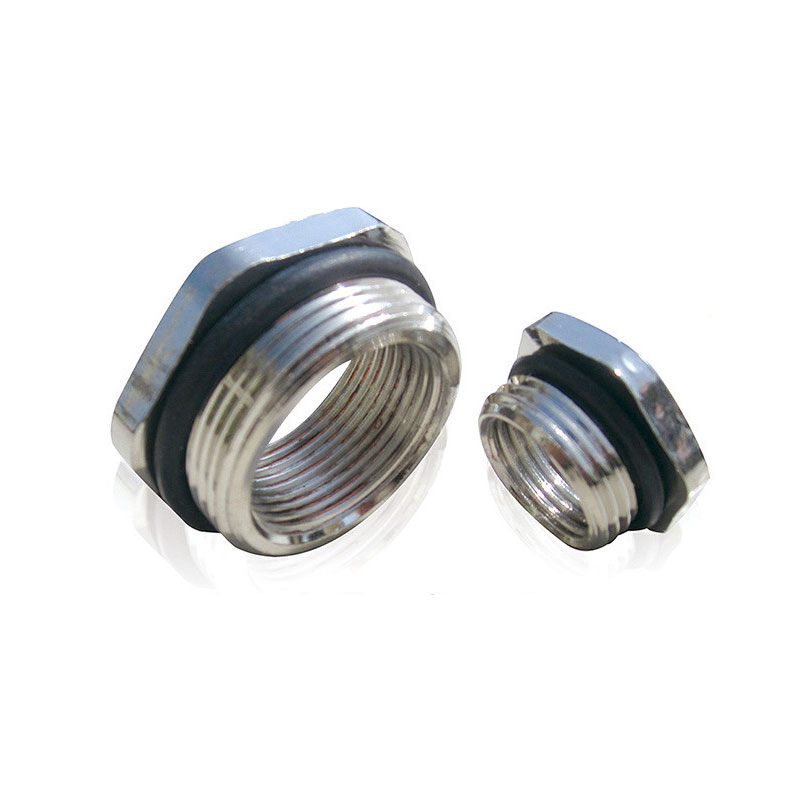

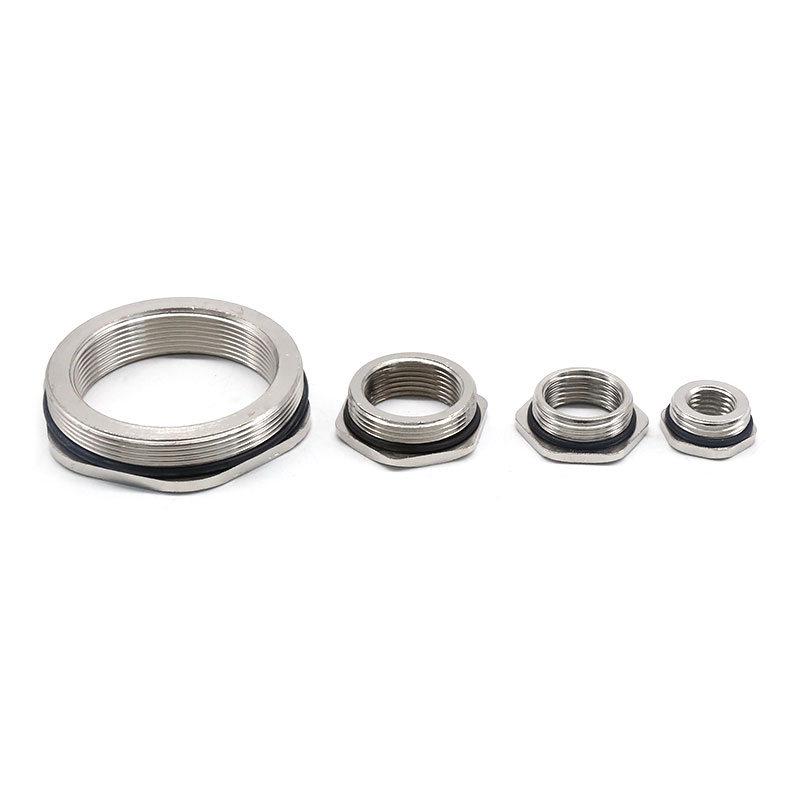

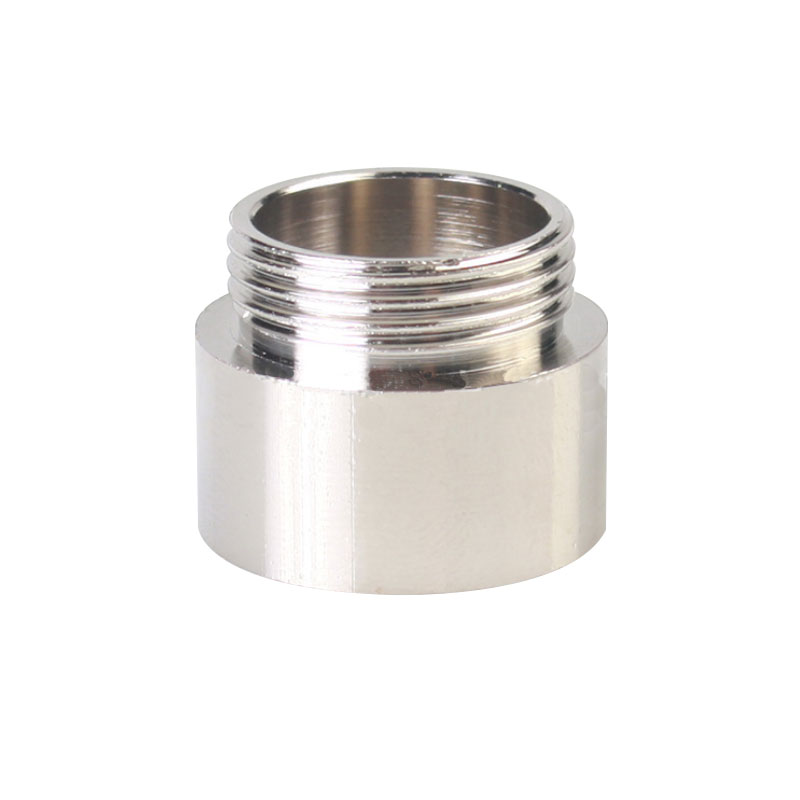

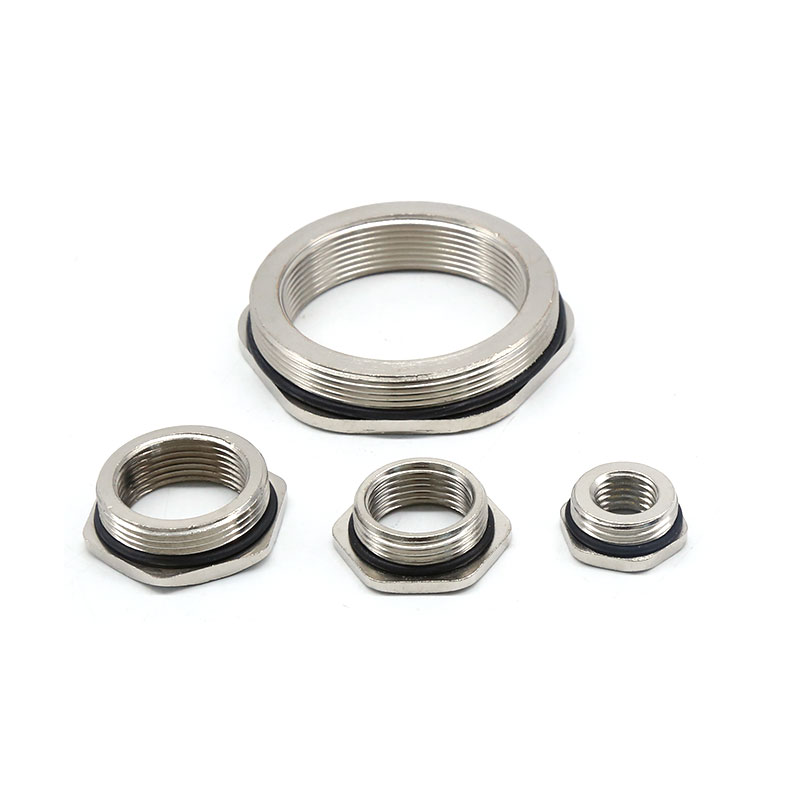

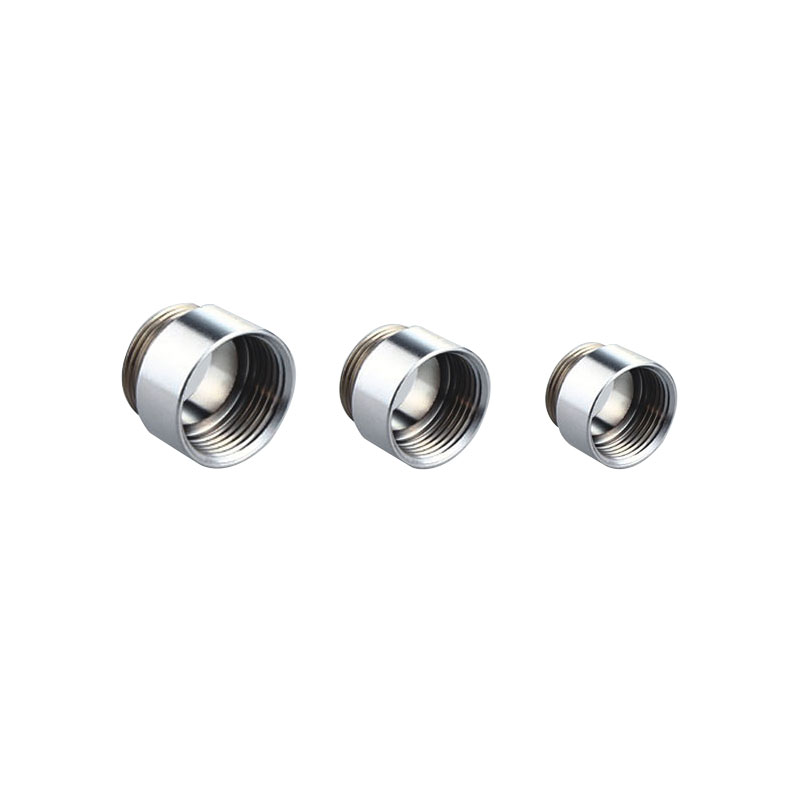

T-BJ Cable Gland Enlarger

PRODUCT NAME:
T-BJ Cable Gland Enlarger
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Material: Nickel Plated Brass
O-Seals: NBR
Temperature Environment: -40℃ to 100℃, short time to 120℃

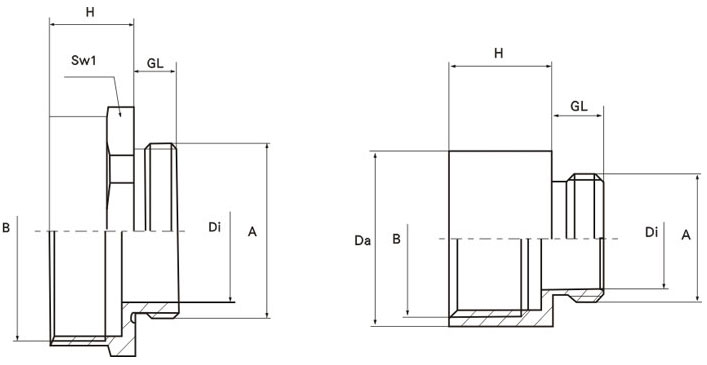

Model A Model B

GL mm

H mm Sw1 mm Da mm Di mm
M12×1.5 M16×1.5 5 16 18
8
M16×1.5 M20×1.5 5 16.5 22
12
M20×1.5 M25×1.5 6 18.5 27
15
M25×1.5 M32×1.5 7 20.5 34
21
M32×1.5 M40×1.5 8 23.5 42
26
M40×1.5 M50×1.5 8 30 52
34
M50×1.5 M63×1.5 9 32.5 65
44

PG7 PG9 5 15
17 10
PG9 PG11 6 16.5
20 12
PG9 PG13.5 6 17.5
22 12
PG11 PG13.5 6 17.5
22 15
PG11 PG16 6.5 19
24 15
PG11 PG21 6.5 21
30 15
PG13.5 PG16 6.5 19
24 17
PG13.5 PG21 6.5 21
30 17
PG16 PG21 6.5 21
30 18.5
PG16 PG29 6.5 22.5
39 18.5
PG21 PG29 7 23
39 24
PG29 PG36 8 27.5
50 32
PG36 PG42 9 31
57 42
PG42 PG48 10 33
64 48
