Snap Bushings

PRODUCT NAME:

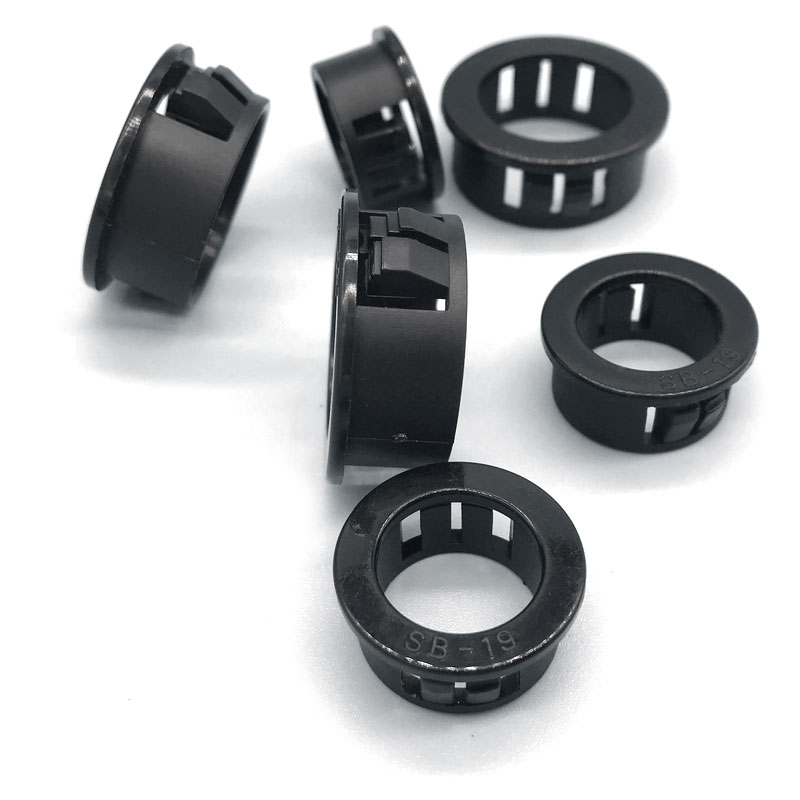

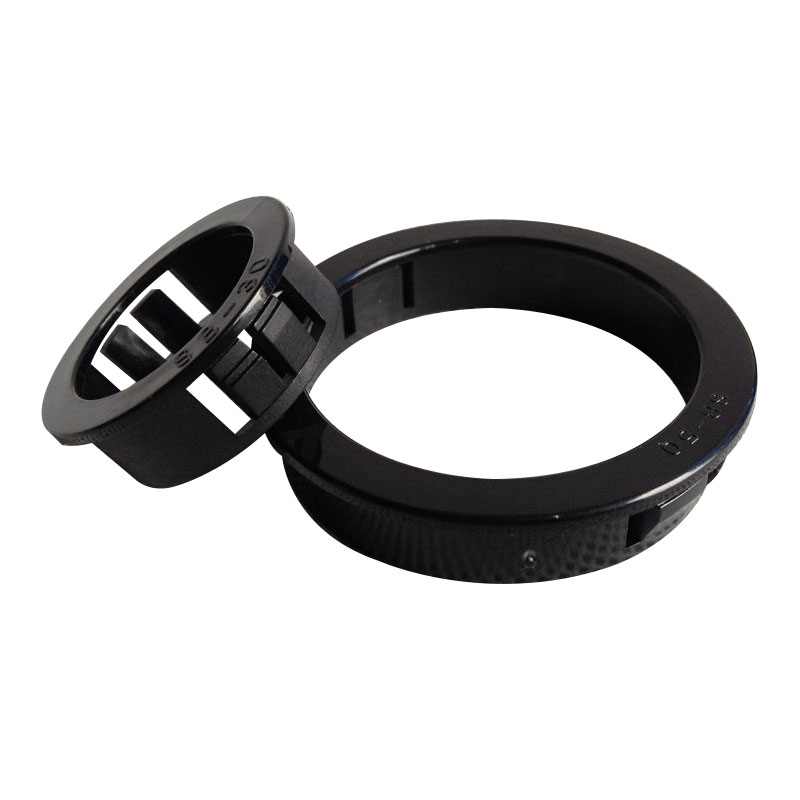

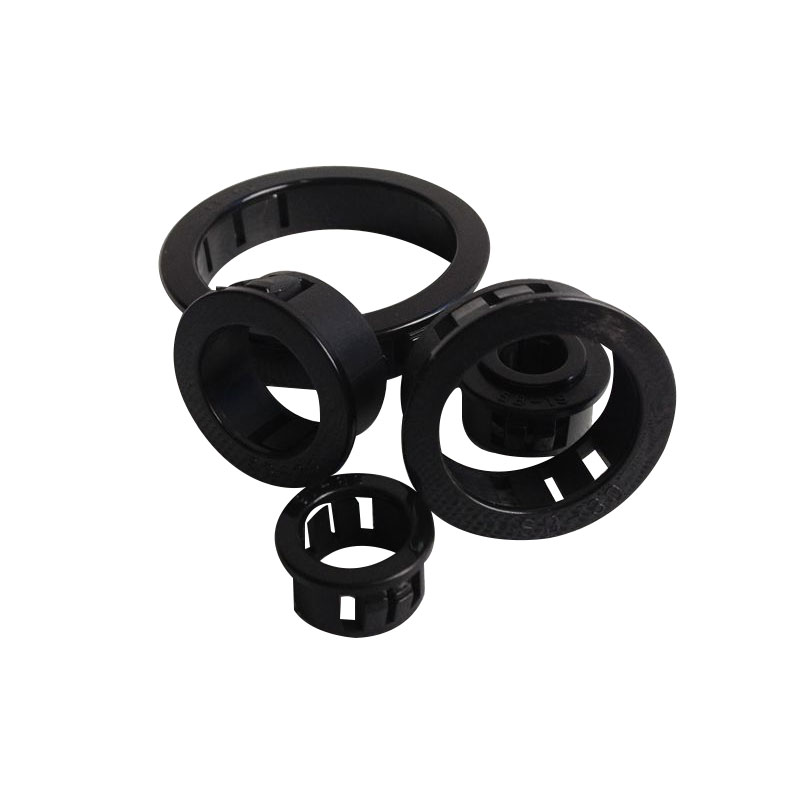

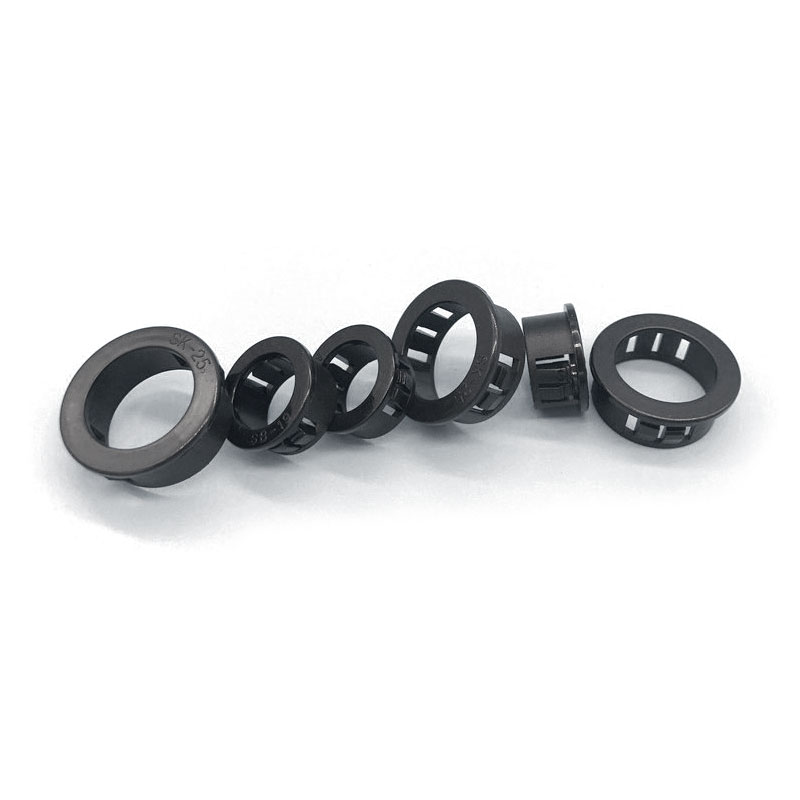

Snap Bushings
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

● Material: UL approved Nylon 66. 94V-2
● Color: Black
● Snap Bushing smooth and insulate your raw-edged holes in metal chassis.
● Locking into hole firmly with fingertip pressure.
● Protect electrical cables, ropes, utility lines through metal holes.
● Available in application for chassis thickness Under 3.2mm.

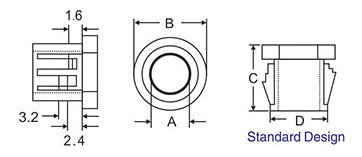

Item No A B C D
SB-8 6.0 9.3 8.1 8.0
SB-10 6.2 12.0 10.3 9.3
SB-11 7.8 13.0 10.5 9.5
SB-13 9.2 14.6 10.3 12.8
SB-16 12.2 18.5 10.3 15.8
SB-19 14.2 21.8 10.3 18.0
SB-22 17.2 24.2 11.6 21.8
SB-25 18.8 28.5 11.6 25.2
SB-30 24.2 33.5 11.6 29.8
SB-38 29.0 42.1 11.4 38.1
SB-45 35.4 47.8 11.6 44.5
SB-50 41.6 54.6 11.8 50.8
